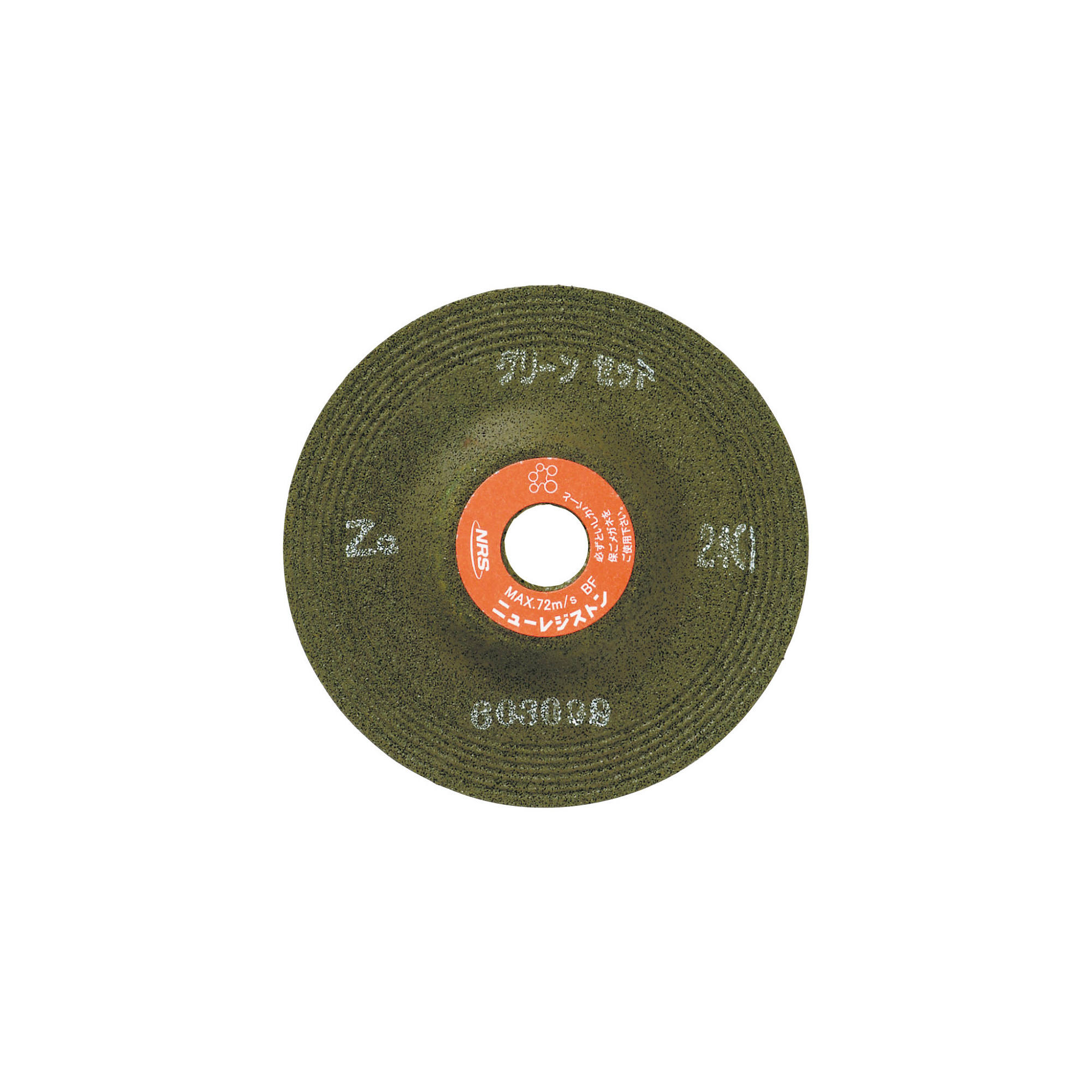

Green Z
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
[Features]
· "Superb cutting" for all steel materials shortens work time.
· Minimal clogging and outstanding durability.
· Replacement frequency is reduced and usage/stock counts can also be reduced, leading to total cost reduction
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GNZ1006ZG24Q |
| GNZ1256ZG24Q |
| GNZ1256ZG24S |
| GNZ1806ZG24P |
| GNZ1806ZG24Q |
| GNZ1806ZG36Q |
| GNZ2056ZG24Q |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer diameter Dimensions (mm) | Inner Diameter Dimension (mm) | Particle Size (#) | Hardness | Point Strategy | |
|---|---|---|---|---|---|---|---|---|---|
5.80 € | 25 | Available | 6 Days | 100 | 15 | 24 | Q | 10 | |
9.29 € | 25 | 5 Days | 125 | 22 | 24 | Q | 20 | ||
9.23 € | 25 | 10 Days | 125 | 22 | 24 | S | 20 | ||
16.68 € | 25 | Available | 5 Days | 180 | 22 | 24 | P | 20 | |
15.81 € | 25 | Available | 13 Days | 180 | 22 | 24 | Q | 20 | |
15.87 € | 25 | 5 Days | 180 | 22 | 36 | Q | 20 | ||
20.39 € | 10 | 8 Days | 205 | 22 | 24 | Q | 10 |
Loading...
Basic information
| Thickness(mm) | 6 | Work material | General steel / Stainless Steel / Alloy Steel / Cast Iron | Abrasive grain | GZ Abrasive |
|---|---|---|---|---|---|
| Features | Cutting Capacity Emphasis | Maximum operating rotation speed(m/s) | 72 |
Configure
Basic Attributes
-
Outer diameter Dimensions(mm)
-
Inner Diameter Dimension(mm)
-
Particle Size(#)
-
Hardness
- P
- Q
- S
-
Type
- GNZ1006ZG24Q
- GNZ1256ZG24Q
- GNZ1256ZG24S
- GNZ1806ZG24P
- GNZ1806ZG24Q
- GNZ1806ZG36Q
- GNZ2056ZG24Q
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
- 8 Days or Less
- 10 Days or Less
- 13 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
