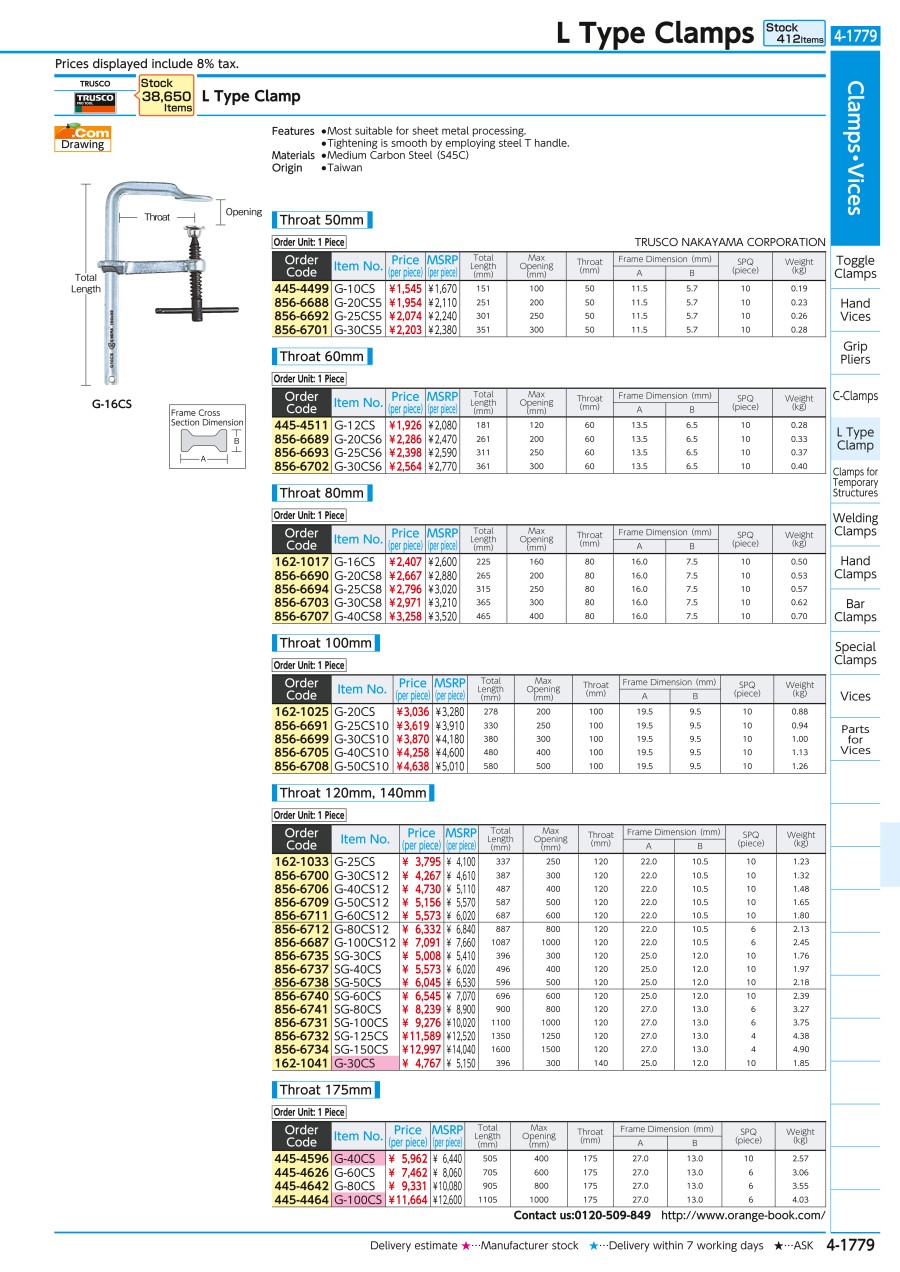

L Type Clamp (Standard Type)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| G-10CS |
| G-12CS |
| G-16CS |
| G-20CS |
| G-25CS |
| G-30CS |
| G-40CS |
| G-60CS |
| G-80CS |
| G-100CS |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length (mm) | Maximum Opening (mm) | Pocket (mm) | Frame Dimensions A (mm) | Frame Dimensions B (mm) | JAN Code | Trusco Code | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
23.78 € | 1 | 6 Days | 151 | 100 | 50 | 11.5 | 5.7 | 4989999265194 | 445-4499 | 190 | ||
29.15 € | 1 | 6 Days | 181 | 120 | 60 | 13.5 | 6.5 | 4989999265217 | 445-4511 | 280 | ||
38.08 € | 1 | 6 Days | 225 | 160 | 80 | 16.0 | 7.5 | 4989999040289 | 162-1017 | 500 | ||
50.14 € | 1 | 6 Days | 278 | 200 | 100 | 19.5 | 9.5 | 4989999040296 | 162-1025 | 880 | ||
49.78 € | 1 | 6 Days | 337 | 250 | 120 | 22 | 10.5 | 4989999040302 | 162-1033 | 1230 | ||
82.77 € | 1 | 6 Days | 396 | 300 | 140 | 25 | 12.0 | 4989999040319 | 162-1041 | 1850 | ||
106.61 € | 1 | 7 Days | 505 | 400 | 175 | 27 | 13.0 | 4989999265293 | 445-4596 | 2570 | ||
96.10 € | 1 | 6 Days | 705 | 600 | 175 | 27 | 13.0 | 4989999265323 | 445-4626 | 3060 | ||
116.85 € | 1 | 9 Days | 905 | 800 | 175 | 27 | 13.0 | 4989999265347 | 445-4642 | 3550 | ||
148.89 € | 1 | 9 Days | 1105 | 1000 | 175 | 27 | 13.0 | 4989999265163 | 445-4464 | 4030 |
Loading...
Basic information
| Material | Medium carbon steel (S45C) | Features | Tightening using the steel T handle is done smoothly. |
|---|
Configure
Basic Attributes
-
Overall Length(mm)
-
Maximum Opening(mm)
-
Pocket(mm)
-
Frame Dimensions A(mm)
-
Frame Dimensions B(mm)
-
JAN Code
-
Trusco Code
-
Type
- G-CS
Filter by standard shipping days
-
- All
- 6 Days or Less
- 7 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
