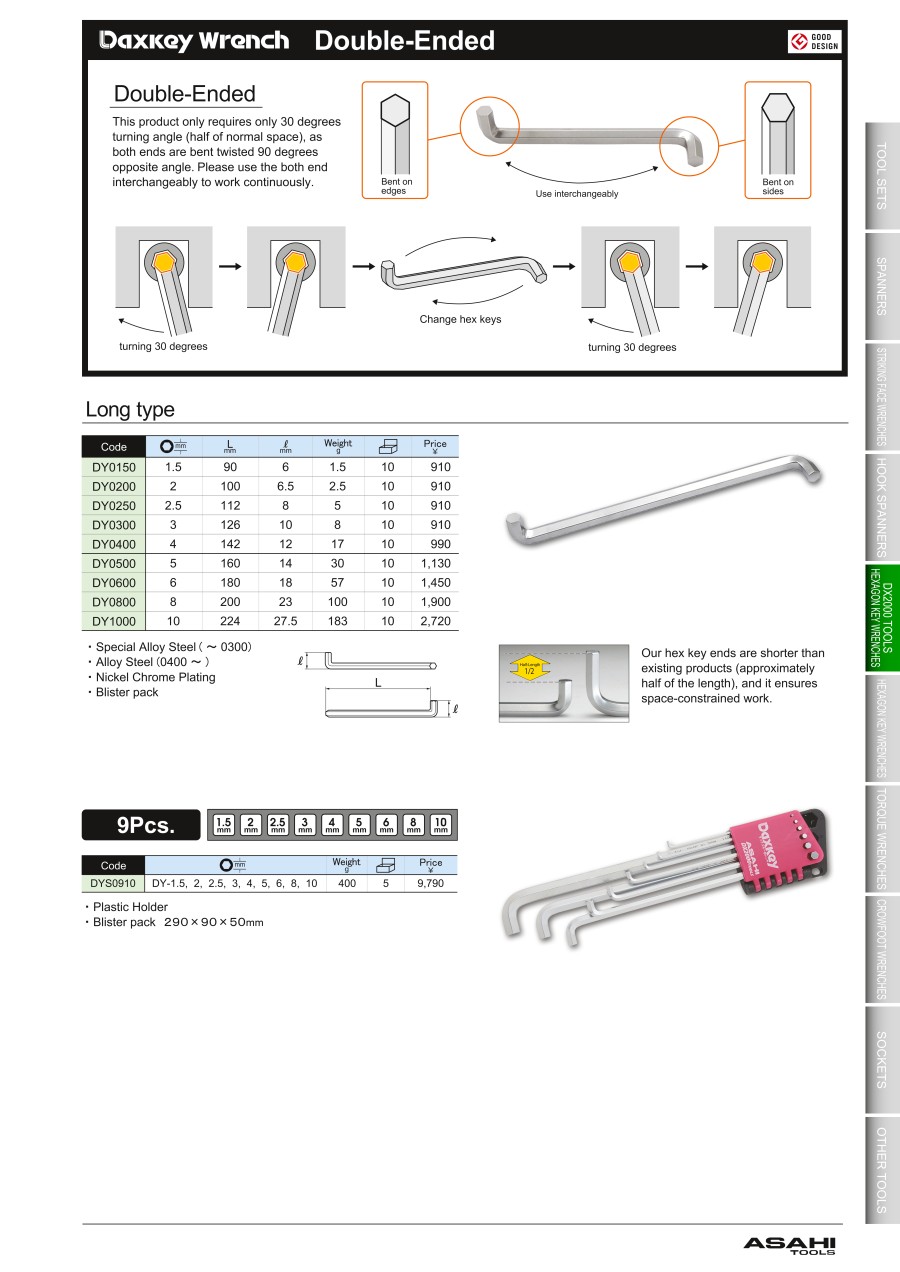

Dax Key Wrench【1-9 Pieces Per Package】
· Since the underneck has a short design, the wrench can be easily inserted into and taken out of places where there is very little space above the bolt.
· The double-ended wrench has opposite-side bending and opposite-angle bending on each end, making it ideal for places with narrow openings. (Available with the range of 30°)
[Applications]
· Tightening and loosening work for hex socket bolts and hex socket set screws.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| DY-0150 |
| DY-0200 |
| DY-0250 |
| DY-0300 |
| DY-0400 |
| DY-0500 |
| DY-0600 |
| DY-0800 |
| DY-1000 |
| DYS0910 |
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Width across flat dimension (mm) | Single Product/Set Classification | Overall length (L dimension) (mm) | Hex bar wrench underneck length (H dimension) L-shape only (mm) | Set Content (mm) | Set Content (piece) | Trusco Code | Mass | Accessory | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.22 € | 1 | 6 Days | 1.5 | Single Item | 90 | 6 | - | - | 364-1511 | 1.5g | - | |||
7.22 € | 1 | 6 Days | 2 | Single Item | 100 | 6.5 | - | - | 364-1520 | 2.5g | - | |||
7.22 € | 1 | 6 Days | 2.5 | Single Item | 112 | 8 | - | - | 364-1538 | 5.0g | - | |||
7.22 € | 1 | 6 Days | 3 | Single Item | 126 | 10 | - | - | 364-1546 | 8.0g | - | |||
7.86 € | 1 | 6 Days | 4 | Single Item | 142 | 12 | - | - | 364-1554 | 17.0g | - | |||
8.97 € | 1 | 6 Days | 5 | Single Item | 160 | 14 | - | - | 364-1562 | 30.0g | - | |||
11.51 € | 1 | 6 Days | 6 | Single Item | 180 | 18 | - | - | 364-1571 | 57.0g | - | |||
15.08 € | 1 | 6 Days | 8 | Single Item | 200 | 23 | - | - | 364-1589 | 100.0g | - | |||
21.59 € | 1 | 6 Days | 10 | Single Item | 224 | 27.5 | - | - | 364-1597 | 183.0g | - | |||
71.68 € | 9 Pieces Per Package | 1 pack | 6 Days | 1.5 ～ 10 | Set Product | - | - | 1.5、2、2.5、3、4、5、6、8、10 | 9 | 364-1601 | 400 g/set | Holder |
Loading...
Basic information
| Type | Hex L-shape wrench | Tip Type | Standard Type | Features | Since the underneck has a short design, the wrench can be easily inserted into and taken out of places where there is very little space above the bolt. |
|---|
Configure
Basic Attributes
-
Width across flat dimension(mm)
-
Single Product/Set Classification
- Single Item
- Set Product
-
Overall length (L dimension)(mm)
-
Hex bar wrench underneck length (H dimension) L-shape only(mm)
-
Set Content(mm)
- 1.5、2、2.5、3、4、5、6、8、10
-
Set Content(piece)
- 9
-
Trusco Code
-
Type
- DY
- DYS
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
