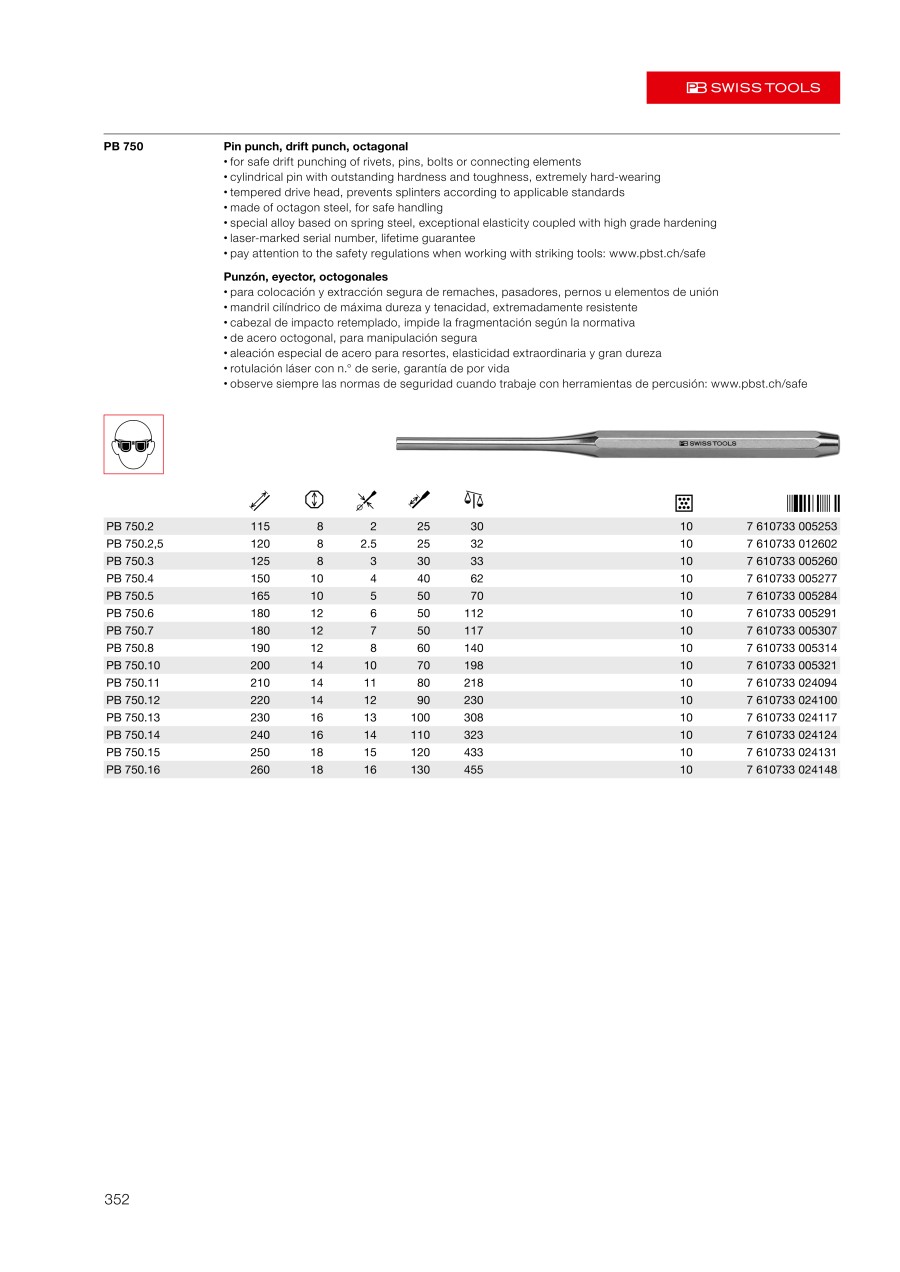

Parallel Pin Punch (Octagon Cylinder) 750
· The material is a PB original special spring steel, promising high strength and a long service life.
· This product with a nickel chrome plated surface is easy to grip, resistant to rust, and has a beautiful external appearance.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 750-2 |
| 750-2.5 |
| 750-3 |
| 750-4 |
| 750-5 |
| 750-6 |
| 750-7 |
| 750-8 |
| 750-10 |
| 750-11 |
| 750-12 |
| 750-13 |
| 750-14 |
| 750-15 |
| 750-16 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length (mm) | Waist size (mm) | Tip diameter (mm) | Shaft length (mm) | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|
16.84 € | 1 | 6 Days | 115 | φ8 | 2 | 25 | 30 | ||
16.84 € | 1 | 5 Days | 120 | φ8 | 2.5 | 25 | 32 | ||
16.65 € | 1 | 10 Days | 125 | φ8 | 3 | 30 | 33 | ||
21.49 € | 1 | 6 Days | 150 | φ10 | 4 | 40 | 62 | ||
22.72 € | 1 | 9 Days | 165 | φ10 | 5 | 50 | 70 | ||
28.76 € | 1 | 8 Days | 180 | φ12 | 6 | 50 | 112 | ||
28.96 € | 1 | 7 Days | 180 | φ12 | 7 | 50 | 117 | ||
30.10 € | 1 | 6 Days | 190 | φ12 | 8 | 60 | 140 | ||
35.96 € | 1 | 11 Days | 200 | φ14 | 10 | 70 | 198 | ||
41.74 € | 1 | 5 Days | 210 | φ14 | 11 | 80 | 218 | ||
41.74 € | 1 | 6 Days | 220 | φ14 | 12 | 90 | 230 | ||
49.11 € | 1 | 10 Days | 230 | φ16 | 13 | 100 | 308 | ||
38.72 € | 1 | 11 Days | 240 | φ16 | 14 | 110 | 323 | ||
59.63 € | 1 | 10 Days | 250 | φ18 | 15 | 120 | 433 | ||
59.63 € | 1 | 8 Days | 260 | φ18 | 16 | 130 | 455 |
Loading...
Basic information
| Product Type | Punch | Detailed Types of Punch | Pin | Tip hardness | HRC58° |
|---|---|---|---|---|---|
| Striking part hardness | HRC45°～48° |
Configure
Basic Attributes
-
Overall Length(mm)
-
Waist size(mm)
- φ8
- φ10
- φ12
- φ14
- φ16
- φ18
-
Tip diameter(mm)
-
Shaft length(mm)
-
Type
- 750
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
- 7 Days or Less
- 8 Days or Less
- 9 Days or Less
- 10 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
