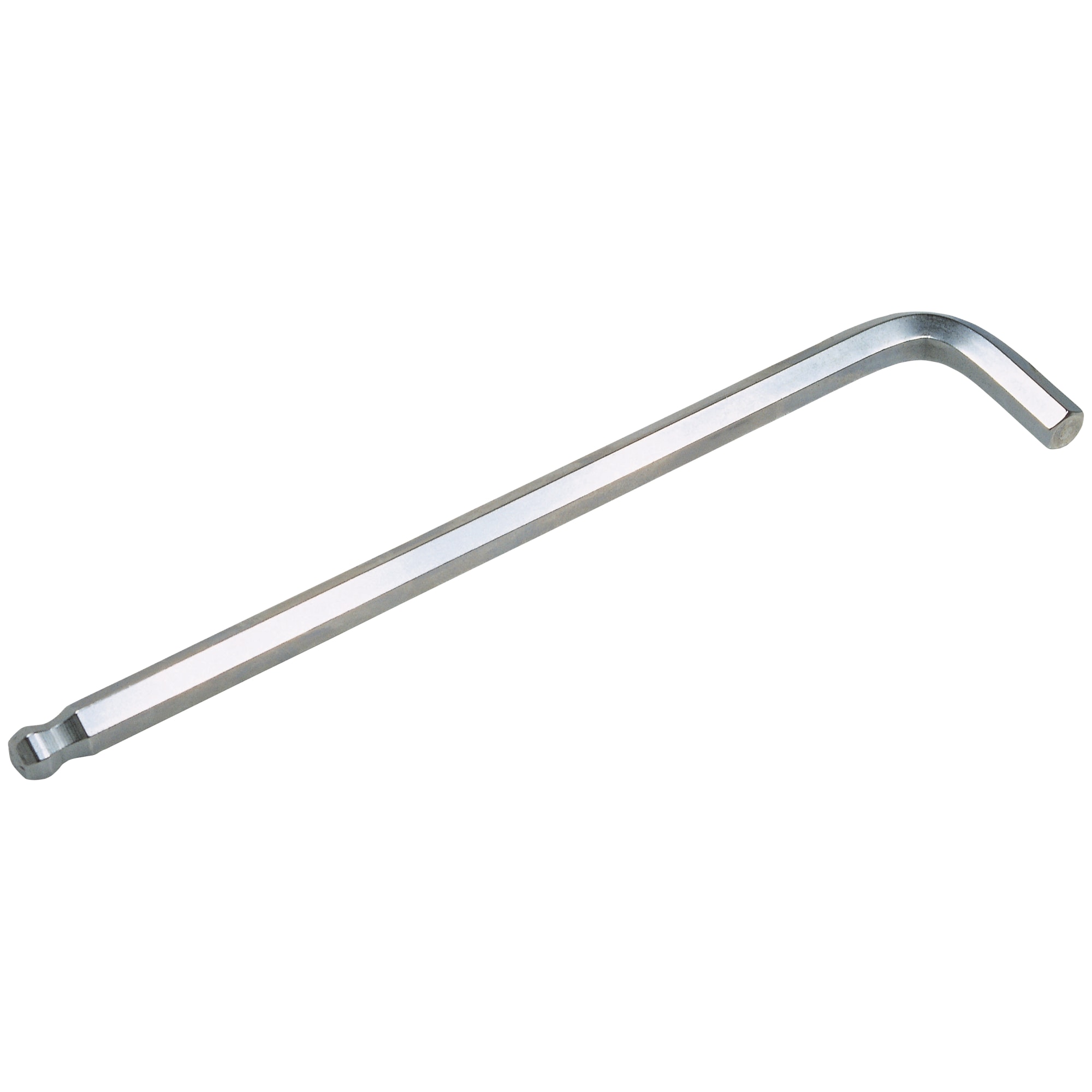

Allen Wrench (Tapered Head®, Extra Long)
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
· Durability and wear resistance are further improved so that the Taper Head® can be used for final tightening.
· The torsional strength is 10% to 20% higher than the conventional ball point, and especially effective when used at an inclination (0 to 20°).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| TL-2 |
| TL-2.5 |
| TL-3 |
| TL-8 |
| TL-19 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width across flat dimension (mm) | Overall length (L dimension) (mm) | Hex bar wrench underneck length (H dimension) L-shape only (mm) | Trusco Code | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|
7.01 € | 1 |
Same day
Stock | 2 | 95 | 17 | 360-5574 | 3 | ||
6.38 € | 1 | 6 Days | 2.5 | 110 | 18 | 360-5582 | 5.5 | ||
7.72 € | 1 |
Same day
Stock | 3 | 126 | 20 | 360-5591 | 8.5 | ||
13.56 € | 1 | Available | 6 Days | 8 | 200 | 36 | 360-5639 | 100.5 | |
87.07 € | 1 | 6 Days | 19 | 360 | 70 | 401-2721 | 1049.0 |
Loading...
Basic information
| Type | Hex L-shape wrench | Tip Type | Ballpoint | Single Product/Set Classification | Single Item |
|---|---|---|---|---|---|
| Features | Dampening and wear resistance are further improved so that a Taper Head® can be used for the main tightening. The torsional strength is 10% to 20% higher than the conventional ball point and it is especially effective when used at an inclination (0 to 20°). |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Width across flat dimension(mm)
-
Overall length (L dimension)(mm)
-
Hex bar wrench underneck length (H dimension) L-shape only(mm)
-
Trusco Code
-
Type
- TL
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
