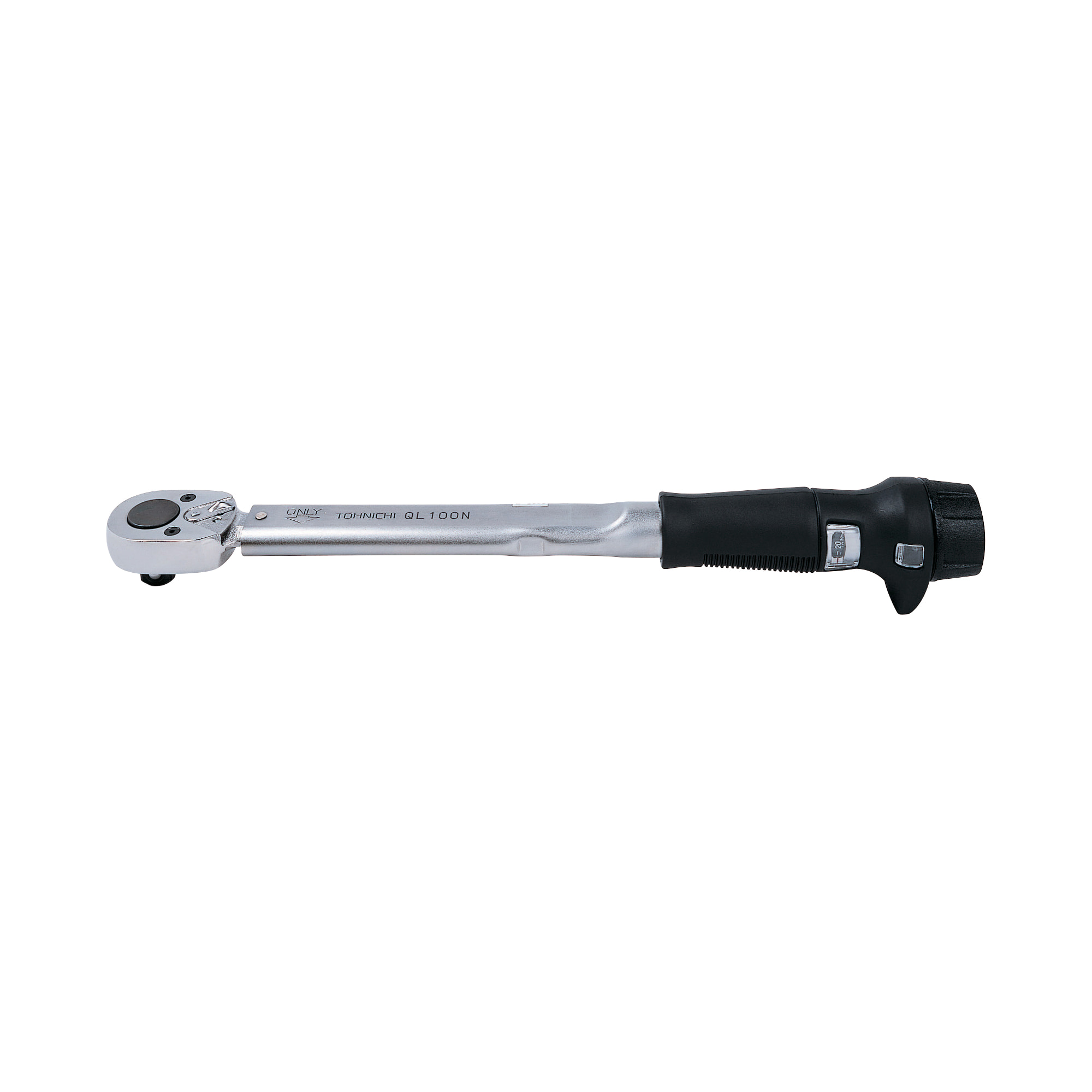

Preset Type Torque Wrench
Click on this image to zoom in.
Click on this image to zoom in.
· When the set torque is reached, the toggle operates, and a signal sound lets the user know when tightening is complete.
· The ratchet head has 24 teeth and a 15-degree operating range. It shows excellent performance in space-limited working conditions.
[Applications]
· Tightening bolt and basic type of torque wrench.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| QL2N |
| QL5N |
| QL10N |
| QL15N |
| QL25N5 |
| QL50N |
| QL100N4 |
| QL100N4-3-8 |
| QL140N |
| QL200N4 |
| QL280N |
| QL280N-1/2 |
| QL420N |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Torque adjustment range (N・m) | Insertion Angle (mm) | Minimum graduation (N・M) | Overall Length (mm) | Load direction | Torque Precision (±%) | Trusco Code | JAN Code | Mass (g) | Supplement | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
157.84 € | 1 | 6 Days | 0.4~2 | 6.35 | 0.02 | 193 | - | - | - | - | 270 | - | ||
157.53 € | 1 | 6 Days | 1–5 | 6.35 | 0.05 | 193 | - | - | - | - | 270 | - | ||
157.53 € | 1 | 6 Days | 2–10 | 6.35 | 0.1 | 218 | - | - | - | - | 290 | - | ||
157.84 € | 1 | 6 Days | 3 to 15 | 6.35 | 0.1 | 218 | - | - | - | - | 290 | - | ||
142.01 € | 1 | 6 Days | 5~25 | 9.53 | 0.2 | 237 | Right | 3 | - | - | 330 | Successor to the QL25N. | ||
144.46 € | 1 | 6 Days | 10.0～50.0 | 9.53 | 0.5 | 260 | Right | 3 | 157-9711 | 4560138448076 | 450 | - | ||
154.10 € | 1 | 6 Days | 20.0～100.0 | 12.7 | 1 | 335 | Right | 3 | 321-2165 | 4562135127350 | 690 | - | ||
154.10 € | 1 | 6 Days | 20.0～100.0 | 9.53 | 1 | 335 | Right | 3 | 403-2608 | 4571141274606 | 690 | - | ||
179.97 € | 1 | 6 Days | 30.0～140.0 | 12.7 | 1 | 400 | Right | 3 | 157-9738 | 4560138448113 | 880 | - | ||
198.89 € | 1 | 6 Days | 40.0～200.0 | 12.7 | 2 | 490 | Right | 3 | 325-7509 | 4562135127374 | 1400 | - | ||
253.04 € | 1 | 6 Days | 40.0～280.0 | 19.05 | 2 | 695 | Right | 3 | 157-9754 | 4560138448021 | 2000 | - | ||
253.04 € | 1 | 6 Days | 40.0～280.0 | 12.7 | 2 | 695 | Right | 3 | 432-7322 | 4571141274903 | 2000 | - | ||
381.07 € | 1 | 6 Days | 60.0～420.0 | 19.05 | 2 | 995 | Right | 3 | 157-9762 | 4560138447604 | 3400 | - |
Loading...
Basic information
| Product Type | Preset Mold | Details Type | QL Type | Main body: option | Main Body |
|---|---|---|---|---|---|
| Features | When the set torque is reached, the toggle operates, and a signal sound notifies when tightening is completed. The ratchet head consists of 24 teeth and 15-degree operating range. It shows excellent performance in space-limited working conditions. | Application | Tightening torque and basic shape of torque wrench. |
Configure
Basic Attributes
-
Torque adjustment range(N・m)
-
Insertion Angle(mm)
-
Minimum graduation(N・M)
-
Overall Length(mm)
-
Load direction
- Right
-
Torque Precision(±%)
-
Trusco Code
-
JAN Code
-
Type
- QL
- QL10N
- QL15N
- QL2N
- QL2N-MH
- QL5N
- SH27DX22
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The QL25N has been discontinued. Use the QL25N5 successor product in its place.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
