Configure

Tip angle (θ)
- 60
- 90
Blade diameter (D)(mm)
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 80
- 90
- 95
- 100
Shank diameter (d)(mm)
- MT2
- MT3
- MT4
Overall Length(mm)
- 112
- 115
- 117
- 119
- 124
- 125
- 129
- 131
- 132
- 134
- 135
- 136
- 138
- 139
- 144
- 145
- 148
- 151
- 154
- 155
- 157
- 159
- 163
- 164
- 170
- 171
- 175
- 180
- 182
- 184
- 188
- 196
- 205
Number of flutes
- 12
- 14
Body(mm)
- 26
- 29
- 31
- 33
- 34
- 38
- 39
- 40
- 43
- 45
- 46
- 49
- 50
- 52
- 54
- 58
- 66
- 75
Small Diameter(mm)
- 8
- 12
- 15
- 17
- 20
- 25
Type
- CFT
Est. shipping days
- All
- Within 6 working days

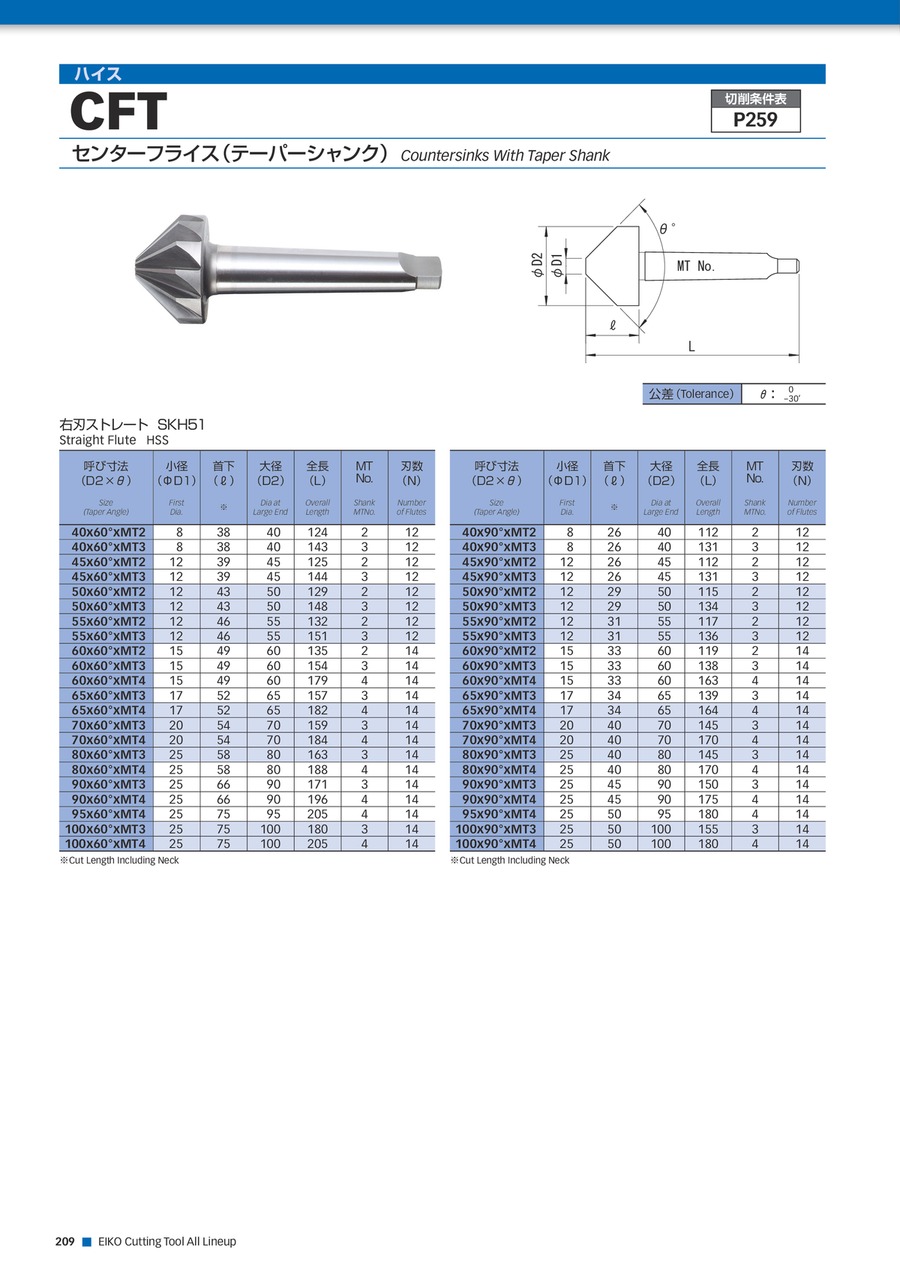

Center Milling (Tapered Shank) CFT

Catalog

Part number:

Still undefined. 39 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Tip angle (θ)

Blade diameter (D)

(mm)

Shank diameter (d)

(mm)

Overall Length

(mm)

Number of flutes

Body

(mm)

Small Diameter

(mm)

Minimum order quantity

60	40	MT2	124	12	38	8	1 pieces
90	40	MT2	112	12	26	8	1 pieces
60	45	MT2	125	12	39	12	1 pieces
60	45	MT3	144	12	39	12	1 pieces
90	45	MT2	112	12	26	12	1 pieces
90	45	MT3	131	12	26	12	1 pieces
60	50	MT2	129	12	43	12	1 pieces
60	50	MT3	148	12	43	12	1 pieces
90	50	MT2	115	12	29	12	1 pieces
90	50	MT3	134	12	29	12	1 pieces
60	55	MT2	132	12	46	12	1 pieces
60	55	MT3	151	12	46	12	1 pieces
90	55	MT2	117	12	31	12	1 pieces
90	55	MT3	136	12	31	12	1 pieces
60	60	MT2	135	14	49	15	1 pieces
60	60	MT3	154	14	49	15	1 pieces
90	60	MT2	119	14	33	15	1 pieces
90	60	MT3	138	14	33	15	1 pieces
90	60	MT4	163	14	33	15	1 pieces
60	65	MT3	157	14	52	17	1 pieces
60	65	MT4	182	14	52	17	1 pieces
90	65	MT3	139	14	34	17	1 pieces
90	65	MT4	164	14	34	17	1 pieces
60	70	MT3	159	14	54	20	1 pieces
60	70	MT4	184	14	54	20	1 pieces
90	70	MT3	145	14	40	20	1 pieces
90	70	MT4	170	14	40	20	1 pieces
60	80	MT3	163	14	58	25	1 pieces
60	80	MT4	188	14	58	25	1 pieces
90	80	MT3	145	14	40	25	1 pieces
90	80	MT4	170	14	40	25	1 pieces
60	90	MT3	171	14	66	25	1 pieces
60	90	MT4	196	14	66	25	1 pieces
90	90	MT4	175	14	45	25	1 pieces
60	95	MT4	205	14	75	25	1 pieces
60	100	MT3	180	14	75	25	1 pieces
60	100	MT4	205	14	75	25	1 pieces
90	100	MT3	155	14	50	25	1 pieces
90	100	MT4	180	14	50	25	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

300.58 € ( 357.69 € )	6 working days
267.11 € ( 317.86 € )	6 working days
422.89 € ( 503.24 € )	6 working days
466.23 € ( 554.81 € )	6 working days
339.43 € ( 403.92 € )	6 working days
360.02 € ( 428.42 € )	6 working days
549.37 € ( 653.75 € )	6 working days
599.90 € ( 713.88 € )	6 working days
426.79 € ( 507.88 € )	6 working days
451.57 € ( 537.37 € )	6 working days
645.97 € ( 768.70 € )	6 working days
709.68 € ( 844.52 € )	6 working days
466.23 € ( 554.81 € )	6 working days
491.02 € ( 584.31 € )	6 working days
760.47 € ( 904.96 € )	6 working days
818.18 € ( 973.63 € )	6 working days
702.47 € ( 835.94 € )	6 working days
739.23 € ( 879.68 € )	6 working days
810.34 € ( 964.30 € )	6 working days
913.00 € ( 1,086.47 € )	6 working days
1,023.05 € ( 1,217.43 € )	6 working days
916.70 € ( 1,090.87 € )	6 working days
965.66 € ( 1,149.14 € )	6 working days
1,050.61 € ( 1,250.23 € )	6 working days
1,103.75 € ( 1,313.46 € )	6 working days
1,050.86 € ( 1,250.52 € )	6 working days
1,126.16 € ( 1,340.13 € )	6 working days
1,750.90 € ( 2,083.57 € )	6 working days
1,840.58 € ( 2,190.29 € )	6 working days
1,399.82 € ( 1,665.79 € )	6 working days
1,439.78 € ( 1,713.34 € )	6 working days
1,837.98 € ( 2,187.20 € )	6 working days
1,920.46 € ( 2,285.35 € )	6 working days
1,748.72 € ( 2,080.98 € )	6 working days
2,206.45 € ( 2,625.68 € )	6 working days
2,732.33 € ( 3,251.47 € )	6 working days
2,874.72 € ( 3,420.92 € )	6 working days
2,135.66 € ( 2,541.44 € )	6 working days
2,354.70 € ( 2,802.09 € )	6 working days
