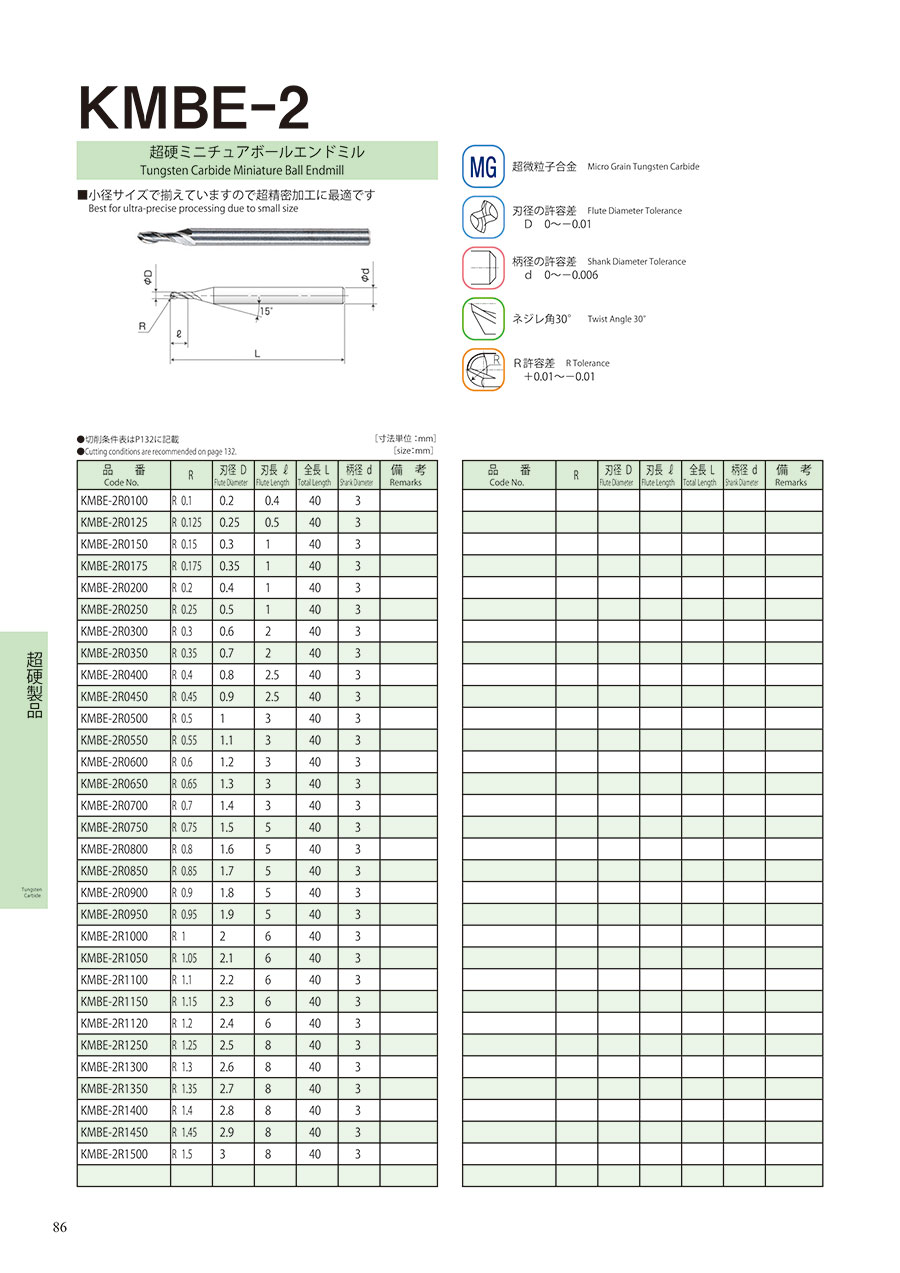

Carbide Miniature Ball End Mill KMBE-2

Carbide Miniature Ball End Mill KMBE-2
  • Volume Discount

KYOWA SEIKO

KYOWA SEIKO

[Features] It can be used for side machining, curved surface machining, curving, R-machining and grooving. [Features] Using carbide materials with high hardness, it can cut general steel, heat-treated steel and stainless steel.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
KMBE-2R0100
KMBE-2R0125
KMBE-2R0150
KMBE-2R0175
KMBE-2R0200
KMBE-2R0250
KMBE-2R0300
KMBE-2R0350
KMBE-2R0400
KMBE-2R0450
KMBE-2R0500
KMBE-2R0550
KMBE-2R0600
KMBE-2R0650
KMBE-2R0700
KMBE-2R0750
KMBE-2R0800
KMBE-2R0850
KMBE-2R0900
KMBE-2R0950
KMBE-2R1000
KMBE-2R1050
KMBE-2R1100
KMBE-2R1150
KMBE-2R1200
KMBE-2R1250
KMBE-2R1300
KMBE-2R1350
KMBE-2R1400
KMBE-2R1450
KMBE-2R1500
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
R Size
(mm) 		Blade length (ℓ)
(mm) 		blade diameter
(mm)

107.00 €

1 Available 8 Days 0.10.40.2

107.00 €

1 Available 8 Days 0.1250.50.25

119.33 €

1 Available 8 Days 0.1510.3

119.33 €

1 Available 8 Days 0.17510.35

119.33 €

1 Available 8 Days 0.210.4

112.98 €

1 Available 8 Days 0.2510.5

112.98 €

1 Available 8 Days 0.320.6

107.69 €

1 Available 8 Days 0.3520.7

107.69 €

1 Available 8 Days 0.42.50.8

100.28 €

1 Available 8 Days 0.452.50.9

95.00 €

1 Available 8 Days 0.531

100.28 €

1 Available 8 Days 0.5531.1

100.28 €

1 Available 8 Days 0.631.2

100.28 €

1 Available 8 Days 0.6531.3

100.28 €

1 Available 8 Days 0.731.4

95.00 €

1 Available 8 Days 0.7551.5

100.28 €

1 Available 8 Days 0.851.6

100.28 €

1 Available 8 Days 0.8551.7

100.28 €

1 Available 8 Days 0.951.8

100.28 €

1 Available 8 Days 0.9551.9

95.00 €

1 Available 8 Days 162

100.28 €

1 Available 8 Days 1.0562.1

100.28 €

1 Available 8 Days 1.162.2

100.28 €

1 Available 8 Days 1.1562.3

100.28 €

1 Available 8 Days 1.262.4

95.00 €

1 Available 8 Days 1.2582.5

100.28 €

1 6 Days 1.382.6

100.28 €

1 Available 8 Days 1.3582.7

100.28 €

1 Available 8 Days 1.482.8

100.28 €

1 Available 8 Days 1.4582.9

100.28 €

1 Available 8 Days 1.583

Loading...

  1. 1

Basic information

Type Ball work material General Steel / Quenched and tempered steel / Stainless Steel Number of flutes(sheet) 2
Overall Length (L)(mm) 40 Shank diameter (d)(mm) 3 R Precision(μm) ＋0.01～－0.01
Machining Application Curved surface / Side / Engraving / R Groove Twist Torsional Angle 30° Blade diameter tolerance 0～－0.01
Handle diameter tolerance 0～－0.006 Material Ultrafine particle alloys
