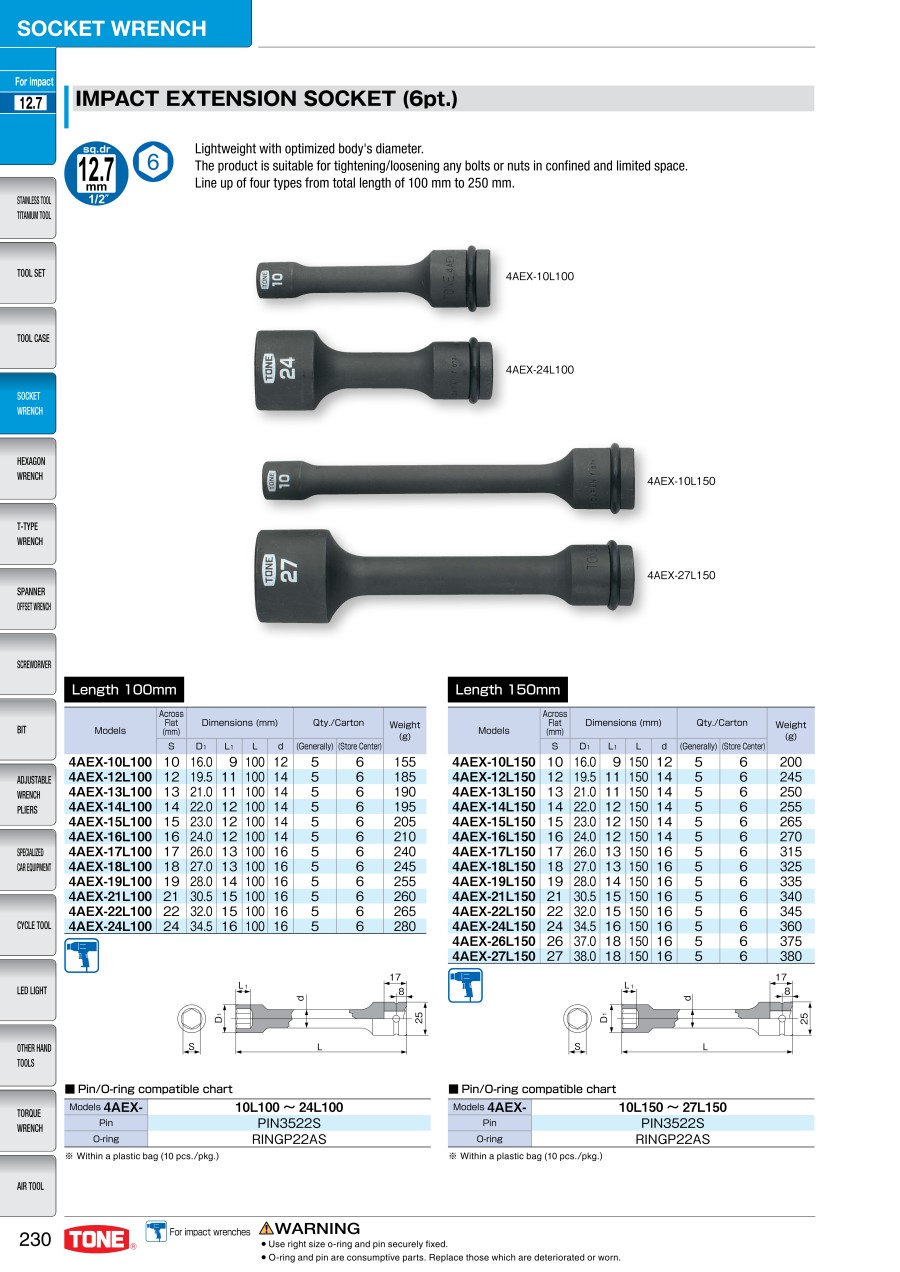

Extension Socket for Impact Wrenches 4AEX-L150
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 4AEX-12L150 |
| 4AEX-13L150 |
| 4AEX-14L150 |
| 4AEX-15L150 |
| 4AEX-16L150 |
| 4AEX-17L150 |
| 4AEX-18L150 |
| 4AEX-19L150 |
| 4AEX-21L150 |
| 4AEX-22L150 |
| 4AEX-24L150 |
| 4AEX-26L150 |
| 4AEX-27L150 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width across flat dimension (S Measurement) | Width across flat part external diameter (measurement D1) (mm) | Maximum Outer Diameter (D1 or D2 Dimensions) (mm) | Width across flat part depth (measurement L1) (mm) | Through Hole I.D. (d Dimension) (mm) | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
32.37 € | 1 | Available | 9 Days | 12 | 19.5 | 25 | 11 | 14 | 245 | |
32.40 € | 1 | Available | 8 Days | 13 | 21 | 25 | 11 | 14 | 250 | |
32.45 € | 1 | Available | 9 Days | 14 | 22 | 25 | 12 | 14 | 255 | |
33.27 € | 1 | Available | 9 Days | 15 | 23.0 | 25 | 12 | 14 | 265 | |
33.32 € | 1 | Available | 9 Days | 16 | 24 | 25 | 12 | 14 | 270 | |
33.72 € | 1 | Available | 9 Days | 17 | 26 | 26 | 13 | 16 | 315 | |
35.57 € | 1 | Available | 8 Days | 18 | 27 | 27 | 13 | 16 | 325 | |
35.65 € | 1 | Available | 9 Days | 19 | 28 | 28 | 14 | 16 | 335 | |
37.99 € | 1 | Available | 9 Days | 21 | 30.5 | 30.5 | 15 | 16 | 340 | |
39.48 € | 1 | Available | 9 Days | 22 | 32 | 32 | 15 | 16 | 345 | |
40.24 € | 1 | Available | 9 Days | 24 | 34.5 | 34.5 | 16 | 16 | 360 | |
41.30 € | 1 | Available | 9 Days | 26 | 37 | 37 | 18 | 16 | 375 | |
42.17 € | 1 | Available | 9 Days | 27 | 38 | 38 | 18 | 16 | 380 |
Loading...
Basic information
| Single Product/Set Classification | Single Item Socket | Application | For Impact | Insertion Angle (Shaft measurement when electric drill) (mm) | 12.7 |
|---|---|---|---|---|---|
| Socket shape | 6 Sq. | Insertion Angle (Shaft measurement when electric drill) (Inch) | 1/2 | Overall length (L dimension)(mm) | 150 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
