Mag Self-Cut Plate

Mag Self-Cut Plate

NABEYA

NABEYA

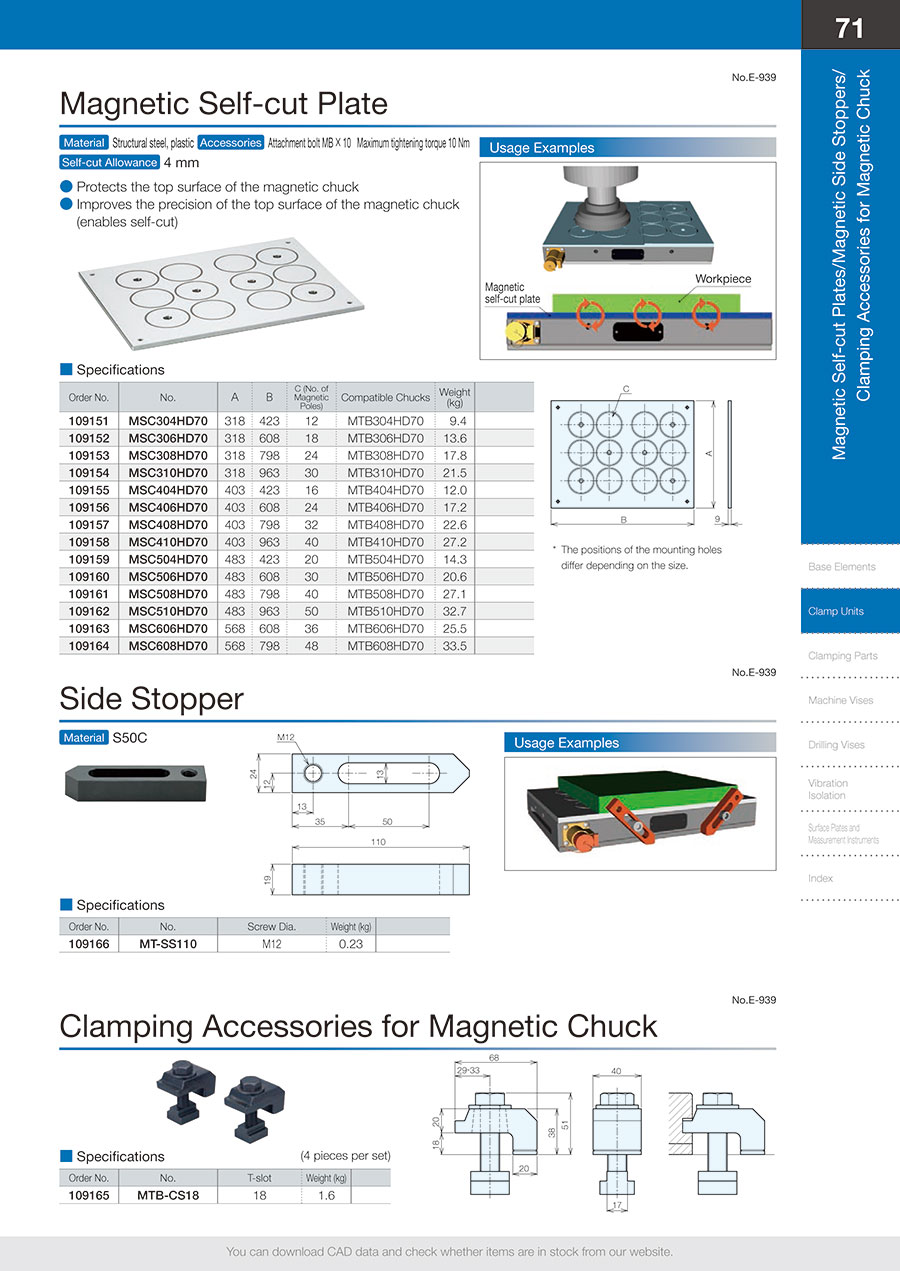

For protection of the upper surface of a magnetic chuck. For improving precision of the upper surface of a magnetic chuck (self-cutting possible)

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
MSC304HD70
MSC306HD70
MSC308HD70
MSC310HD70
MSC404HD70
MSC406HD70
MSC408HD70
MSC410HD70
MSC504HD70
MSC506HD70
MSC508HD70
MSC510HD70
MSC606HD70
MSC608HD70
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
A
(mm) 		B
(mm) 		C (Number of Magnetic Poles) Supported chucks Mass
(kg)

513.02 €

1 5 Days 31842312MTB304HD709.4

702.58 €

1 7 Days 31860818MTB306HD7013.6

841.42 €

1 7 Days 31879824MTB308HD7017.8

1,001.08 €

1 7 Days 31896330MTB310HD7021.5

604.54 €

1 43 Days 40342316MTB404HD7012

795.40 €

1 7 Days 40360824MTB406HD7017.2

983.39 €

1 7 Days 40379832MTB408HD7022.6

1,210.12 €

1 7 Days 40396340MTB410HD7027.2

678.91 €

1 7 Days 48342320MTB504HD7014.3

918.38 €

1 7 Days 48360830MTB506HD7020.6

1,170.60 €

1 7 Days 48379840MTB508HD7027.1

1,402.53 €

1 7 Days 48396350MTB510HD7032.7

1,060.87 €

1 7 Days 56860836MTB606HD7025.5

1,383.29 €

1 7 Days 56879848MTB608HD7033.5

Loading...

  1. 1

Basic information

Thickness(mm) 9 Self-Cut Allowance(mm) 4 Accessory Mounting bolt MBX10; Max. tightening torque 10 Nm
Features For the protection of the upper surface of the magnet chuck. For improving precision of the upper surface of the magnet chuck (capable of self-cutting) Material SS Material, Resin Notes Will differ depending on mounting hole location.
