Configure

Hole diameter (drill diameter) Dc(mm)
- 21
- 21.5
- 22
- 22.5
- 23
- 23.5
- 24
- 24.5
- 25
- 25.5
- 26
- 26.5
- 27
- 28
- 28.5
- 29
- 30
- 31
- 32
- 33
- 33.5
Overall Length L(mm)
- 163
- 165
- 167
- 169
- 171
- 177
- 179
- 181
- 183
- 185
- 187
- 189
- 191
- 195
- 197
- 199
- 203
- 207
- 211
- 225
- 227
Shank diameter(mm)
- 25
- 32
- 40
Effective machining depth(mm)
- 84
- 86
- 88
- 90
- 92
- 94
- 96
- 98
- 100
- 102
- 104
- 106
- 108
- 112
- 114
- 116
- 120
- 124
- 128
- 132
- 134
Tool No.
- 7803329
- 7803330
- 7803331
- 7803332
- 7803333
- 7803334
- 7803335
- 7803336
- 7803337
- 7803338
- 7803339
- 7803340
- 7803341
- 7803342
- 7803343
- 7803344
- 7803345
- 7803346
- 7803347
- 7803348
- 7803349
Nominal
Type
- P4D
Est. shipping days
- All
- Within 6 working days

Indexable Drill 4D Type P4D

Indexable Drill 4D Type P4D

Catalog

Part number:

Still undefined. 21 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Hole diameter (drill diameter) Dc

(mm)

Overall Length L

(mm)

Shank diameter

(mm)

Effective machining depth

(mm)

Tool No.

Nominal

Shank length

(mm)

Maximum Machining Diameter

(mm)

Minimum order quantity

21	163	25	84	7803329	P4D2100FS25M07	56	23	1 pieces
21.5	165	25	86	7803330	P4D2150FS25M07	56	23.3	1 pieces
22	167	25	88	7803331	P4D2200FS25M07	56	23.6	1 pieces
22.5	169	25	90	7803332	P4D2250FS25M07	56	23.9	1 pieces
23	171	25	92	7803333	P4D2300FS25M07	56	24	1 pieces
23.5	177	32	94	7803334	P4D2350FS32M07	60	24.3	1 pieces
24	179	32	96	7803335	P4D2400FS32M07	60	24.6	1 pieces
24.5	181	32	98	7803336	P4D2450FS32M07	60	24.9	1 pieces
25	183	32	100	7803337	P4D2500FS32M08	60	27.2	1 pieces
25.5	185	32	102	7803338	P4D2550FS32M08	60	27.3	1 pieces
26	187	32	104	7803339	P4D2600FS32M08	60	27.6	1 pieces
26.5	189	32	106	7803340	P4D2650FS32M08	60	27.9	1 pieces
27	191	32	108	7803341	P4D2700FS32M08	60	28.2	1 pieces
28	195	32	112	7803342	P4D2800FS32M08	60	28.6	1 pieces
28.5	197	32	114	7803343	P4D2850FS32M08	60	28.9	1 pieces
29	199	32	116	7803344	P4D2900FS32M09	60	31.6	1 pieces
30	203	32	120	7803345	P4D3000FS32M09	60	32.2	1 pieces
31	207	32	124	7803346	P4D3100FS32M09	60	32.6	1 pieces
32	211	32	128	7803347	P4D3200FS32M09	60	33.2	1 pieces
33	225	40	132	7803348	P4D3300FS40M09	70	33.6	1 pieces
33.5	227	40	134	7803349	P4D3350FS40M09	70	33.9	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
505.90 € ( 602.02 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
539.90 € ( 642.48 € )	6 working days
571.60 € ( 680.20 € )	6 working days
571.60 € ( 680.20 € )	6 working days
571.60 € ( 680.20 € )	6 working days
571.60 € ( 680.20 € )	6 working days
571.60 € ( 680.20 € )	6 working days
571.60 € ( 680.20 € )	6 working days

Catalog

Products homepage

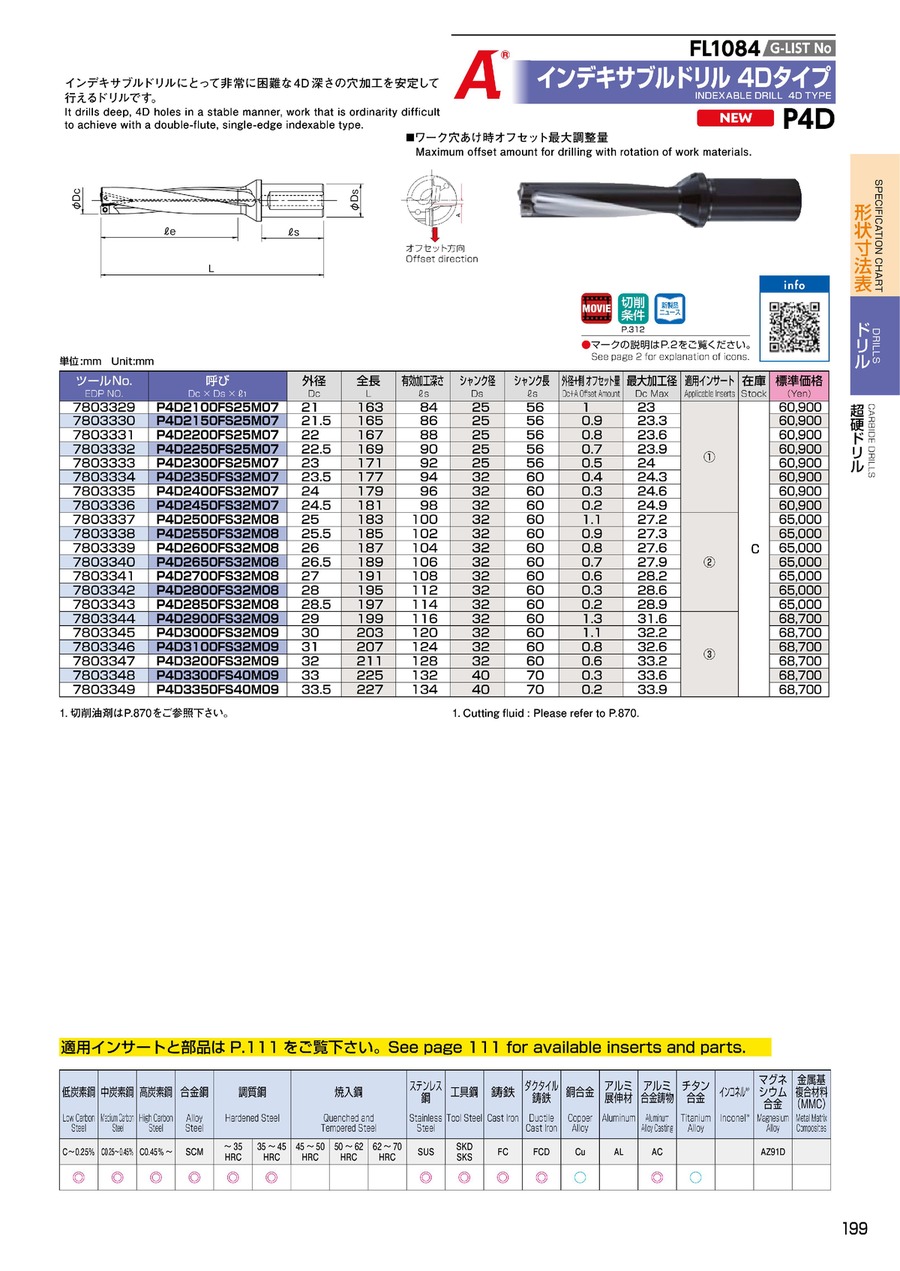

Catalog (2-page spread)

D-199
