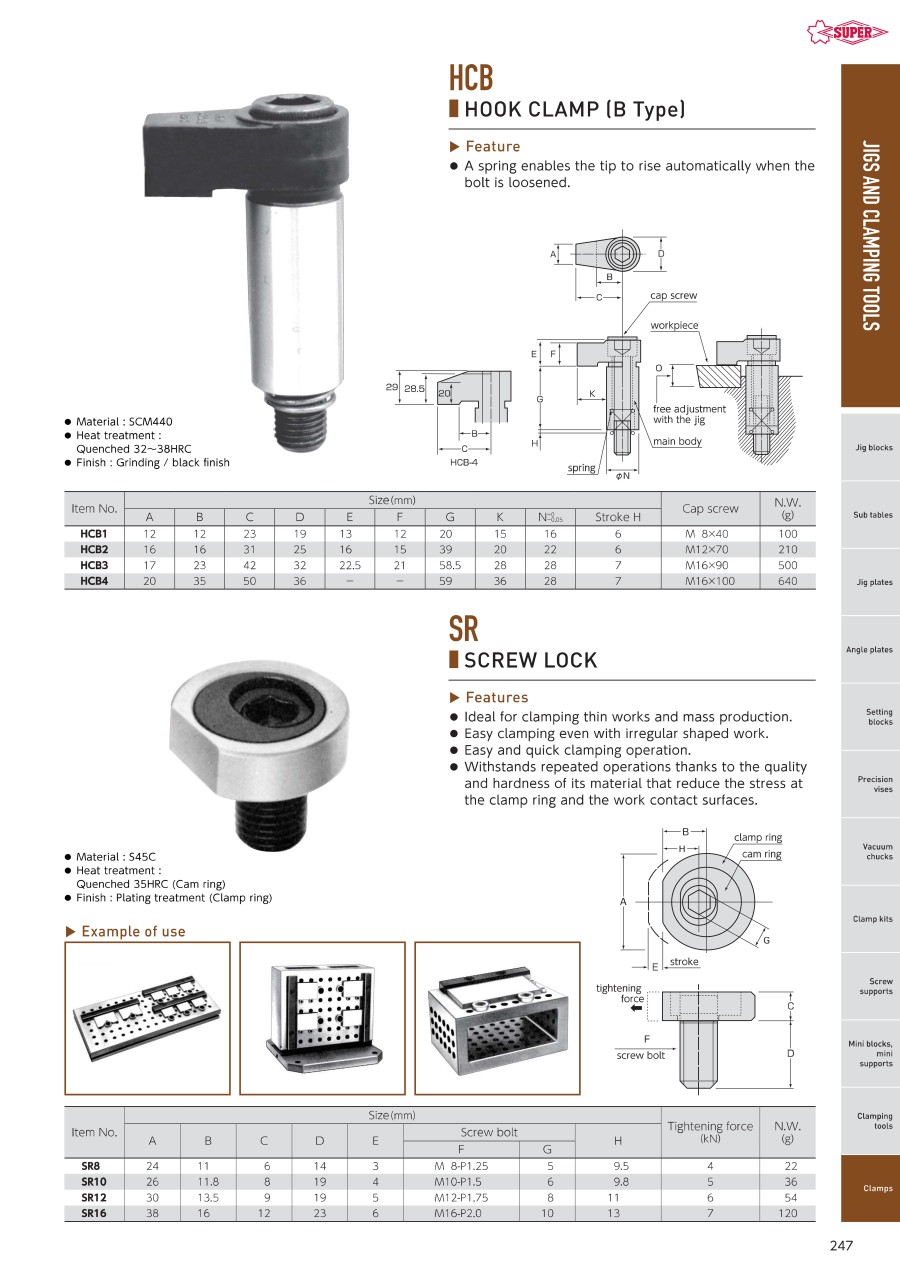

Screw Lock

Volume Discount

[Features]
· Ideal for thin workpieces and clamping mass production products.
· Irregular articles can also be clamped with ease.
· Clamping operation is quick and easy.
· The material and hardness are suitable for repeated operation, and the contact surface does not cling to workpieces and clamp rings.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Numbers

Data to be displayed: 30; 45; 60

Part Number
SR8
SR10
SR12
SR16

Standard Unit Price	Volume Discount	Shipping Days?	Screw Bolt	Mass (g)	Material	Heat Treatment	Hardness	Finishing	Tightening Force (kN)
14.22 €	Available	Same day Stock	M8	22	S45C	Hardening	HRC35 (Cam Ring)	Plated (Clamp Ring)	4
15.31 €		4 Days	M10	36	S45C	Hardening	HRC35 (Cam Ring)	Plated (Clamp Ring)	5
19.78 €		4 Days	M12	54	S45C	Hardening	HRC35 (Cam Ring)	Plated (Clamp Ring)	6
32.67 €		5 Days	M16	120	S45C	Hardening	HRC35 (Cam Ring)	Plated (Clamp Ring)	7
