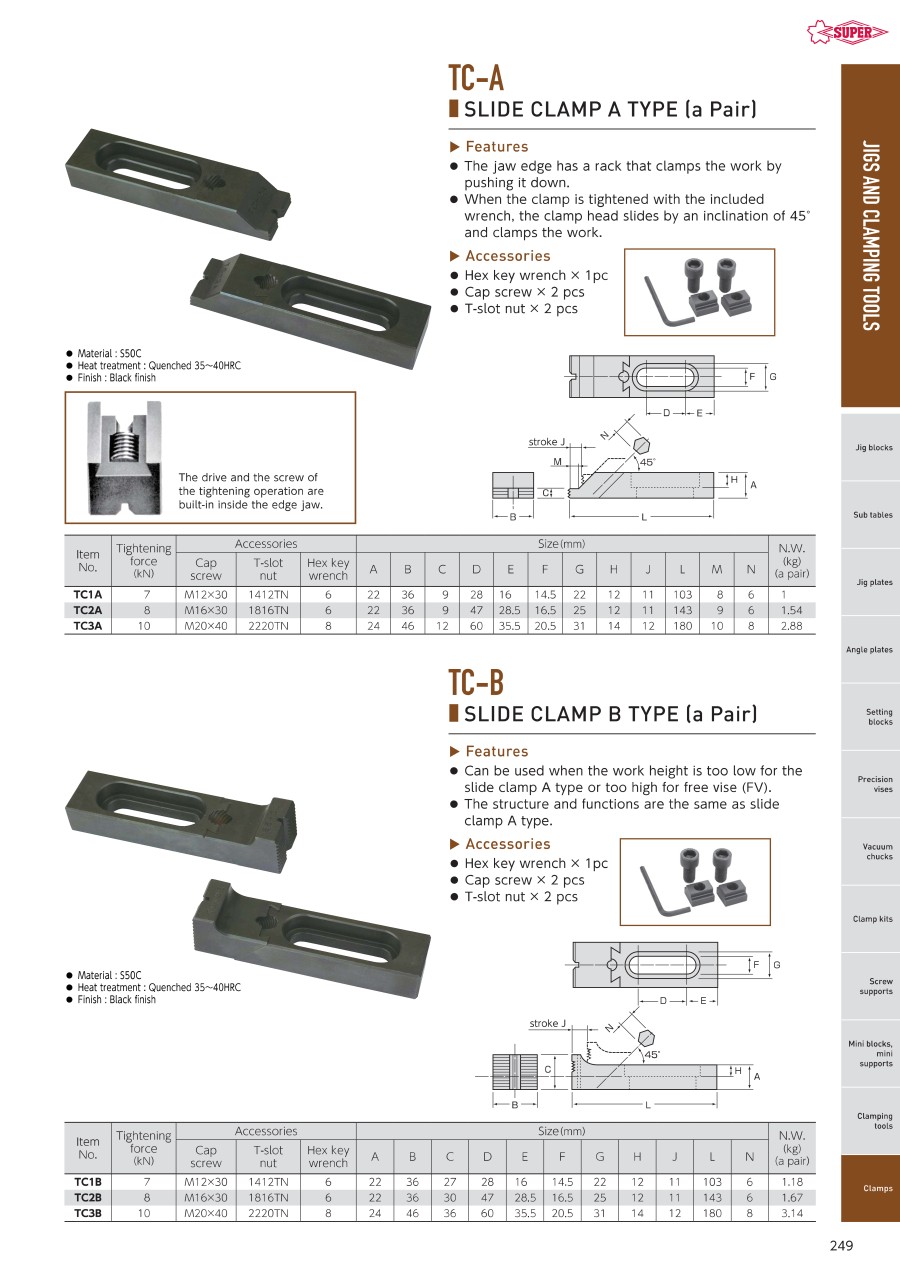

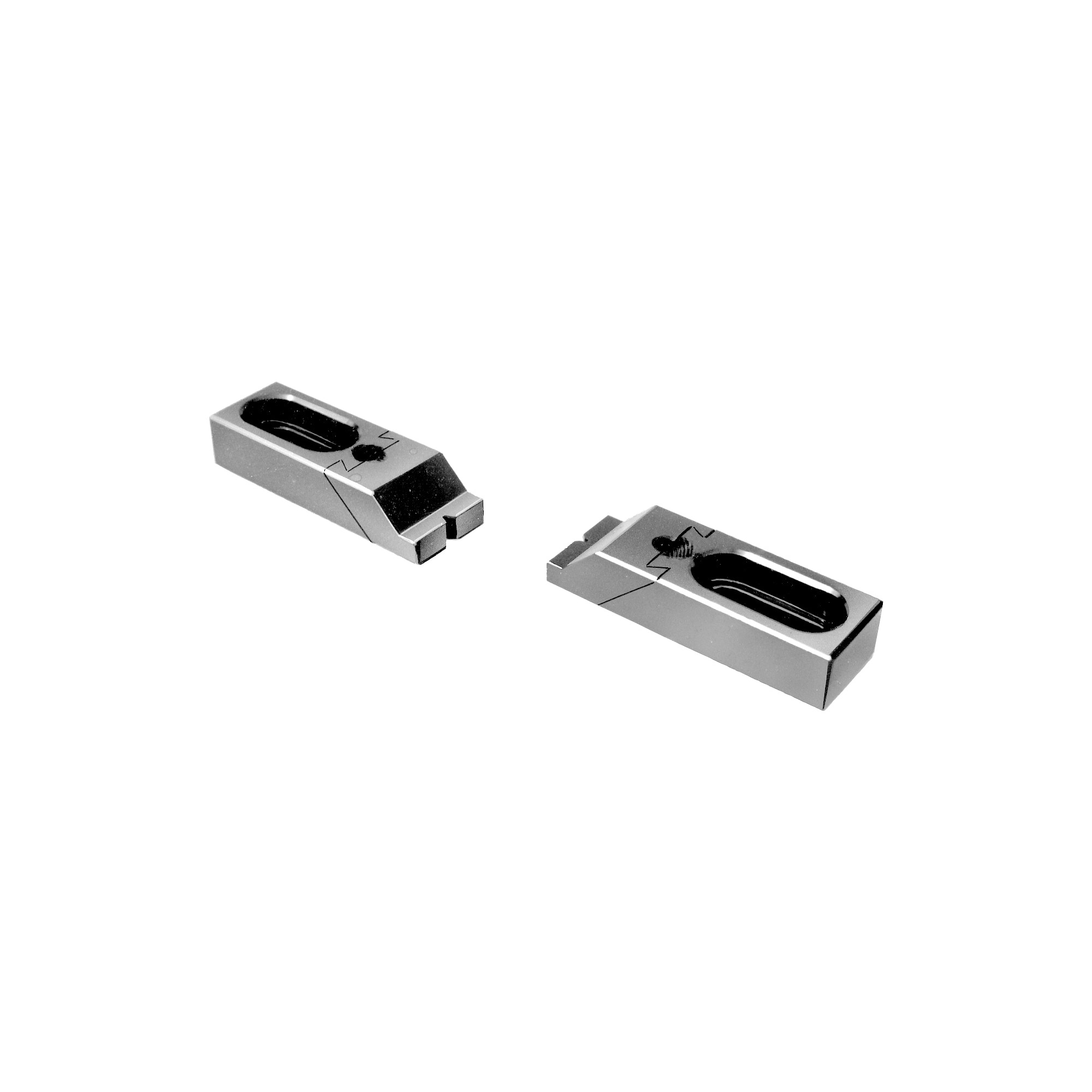

Slide Clamp A Type (Set of 2)【2 Pieces Per Package】

Click on this image to zoom in.

[Features]
· The tip of the jaw is engraved with a rack to clamp the workpiece downwards.
· Operation consists of inserting the wrench, and tightening in order to clamp the workpiece by the clamp head sliding along a 45° inclination.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Numbers

Data to be displayed: 30; 45; 60

Part Number
TC1A
TC2A
TC3A

Standard Unit Price	Number of pc(s). included in pkg.	Shipping Days?	Width (mm)	Length (mm)	Mass (g)	Material	Heat Treatment	Hardness	Finishing	Tightening Force (kN)	Accessory
190.17 €	2 Pieces Per Package	5 Days	36	103	1000	S50C	Hardening	HRC35～40	Black oxide finish	7	2 Cap Screws (CS1230), 2 T Slot Nuts (1412TN), 1 Hex Wrench (6)
260.31 €	2 Pieces Per Package	5 Days	36	143	1540	S50C	Hardening	HRC35～40	Black oxide finish	8	2 Cap Screws (CS1630), 2 T Slot Nuts (1816TN), 1 Hex Wrench (6)
392.19 €	2 Pieces Per Package	5 Days	46	180	2880	S50C	Hardening	HRC35～40	Black oxide finish	10	Two Cap Screws (CS2040), T Slot Nut 2 (2220TN), 1 Hex Wrench (8)
