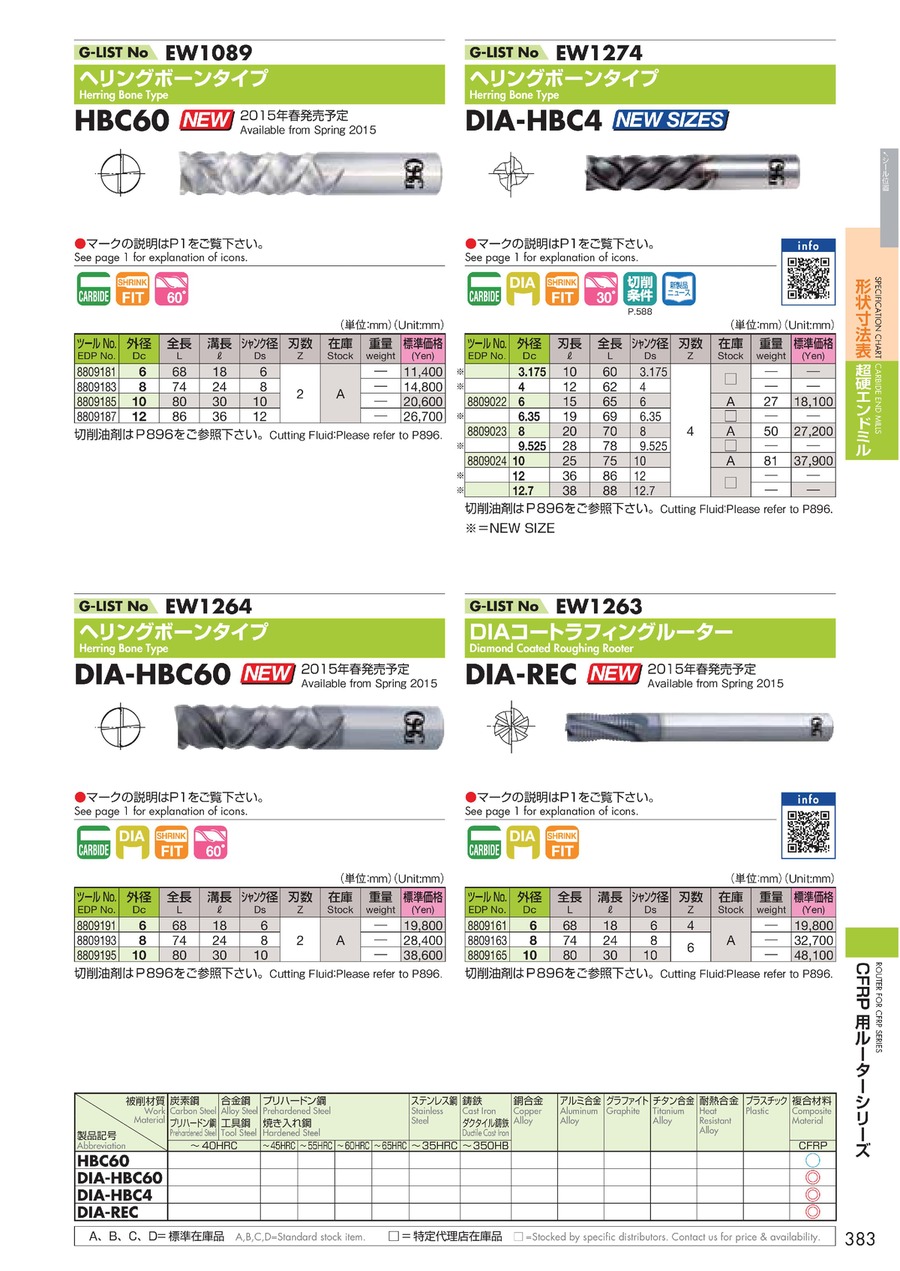

DIA Coated Router for CFRP (2-Flute / Herringbone Type)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| DIA-HBC60-6 |
| DIA-HBC60-8 |
| DIA-HBC60-10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Trusco Code | |
|---|---|---|---|---|---|---|---|---|---|
120.89 € | 1 | 6 Days | 6 | 18 | 6 | 68 | 763-6822 | ||
173.78 € | 1 | 6 Days | 8 | 24 | 8 | 74 | 763-6831 | ||
236.11 € | 1 | 6 Days | 10 | 30 | 10 | 80 | 763-6814 |
Loading...
Basic information
| Number of flutes(sheet) | 2 | Type | Square | Coating | Diamond Coat |
|---|---|---|---|---|---|
| Torsion Angle (θ) | Powerful Helix (45° to 60°) |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Trusco Code
-
Type
- DIA-HBC60
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
