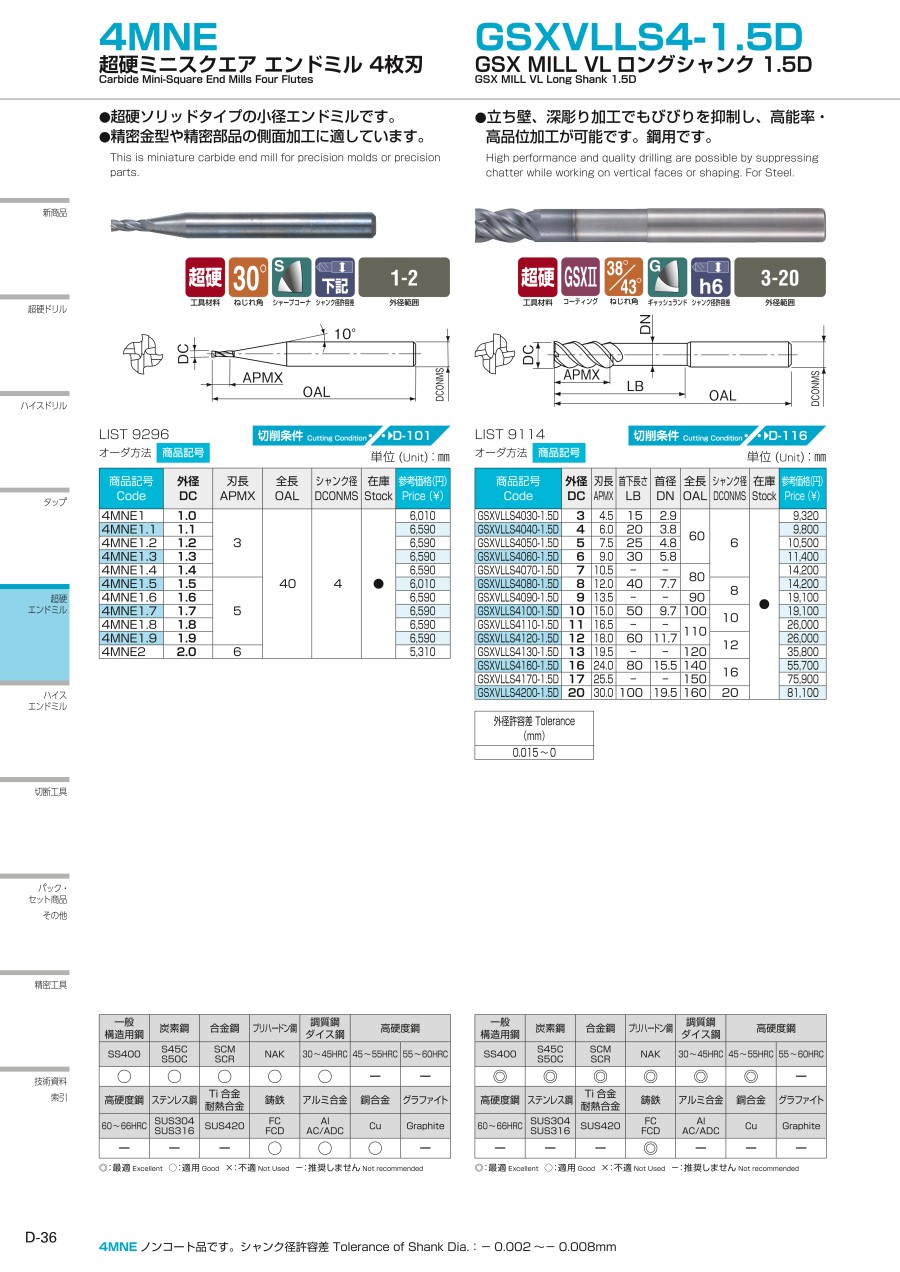

GSX MILL VL Long Shank 1.5D GSXVLLS4-1.5D
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Length under neck ℓ2 (mm) | Neck diameter D1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
84.83 € | 1 | 6 Days | 3 | 4.5 | 6 | 60 | 15 | 2.9 | ||
89.20 € | 1 | 6 Days | 4 | 6 | 6 | 60 | 20 | 3.8 | ||
95.21 € | 1 | 6 Days | 5 | 7.5 | 6 | 60 | 25 | 4.8 | ||
110.50 € | 1 | 6 Days | 6 | 9 | 6 | 60 | 30 | 5.8 | ||
128.71 € | 1 | 6 Days | 7 | 10.5 | 6 | 80 | - | - | ||
128.71 € | 1 | 6 Days | 8 | 12 | 8 | 80 | 40 | 7.7 | ||
121.12 € | 1 | 6 Days | 9 | 13.5 | 8 | 90 | - | - | ||
121.12 € | 1 | 6 Days | 10 | 15 | 10 | 100 | 50 | 9.7 | ||
164.33 € | 1 | 6 Days | 11 | 16.5 | 10 | 110 | - | - | ||
164.33 € | 1 | 6 Days | 12 | 18 | 12 | 110 | 60 | 11.7 | ||
226.15 € | 1 | 6 Days | 13 | 19.5 | 12 | 120 | - | - | ||
351.57 € | 1 | 6 Days | 16 | 24 | 16 | 140 | 80 | 15.5 | ||
478.78 € | 1 | 6 Days | 17 | 25.5 | 16 | 150 | - | - | ||
511.79 € | 1 | 6 Days | 20 | 30 | 20 | 160 | 100 | 19.5 |
Loading...
Basic information
| work material | General Steel / Quenched and tempered steel / High Hardness Steel: to HRC55 / Cast Iron | Number of flutes(sheet) | 4 | Type | Square |
|---|---|---|---|---|---|
| Coating | For General Steels (AlCrN, etc.) | Machining Application | Side | Blade tip shape | Sharp Edge |
| Torsion Angle (θ) | Variable lead | Coating Details | GSXⅡ | Shank diameter tolerance | h6 |
| Torsion Angle details(°) | 38~43 | Outer Diameter Tolerance | 0.015～0 |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Length under neck ℓ2(mm)
-
Type
- GSXVLLS
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
