OSG

Solid Carbide Drill 4D Type AD-4D

Catalog

Part number:

Still undefined. 223 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Hole diameter (drill diameter) Dc

(mm)

Groove Length L

(mm)

Overall Length L

(mm)

Shank diameter

(mm)

Effective machining depth

(mm)

Tool No.

Thinning

Minimum order quantity

2	20	66	4	16	8672200	R type / X type	1 pieces
2	20	66	3	16	8677200	R type / X type	1 pieces
2.1	20	66	4	16	8672210	R type / X type	1 pieces
2.1	20	66	3	16	8677210	R type / X type	1 pieces
2.2	20	66	4	16	8672220	R type / X type	1 pieces
2.2	20	66	3	16	8677220	R type / X type	1 pieces
2.3	20	66	4	15	8672230	R type / X type	1 pieces
2.3	20	66	3	15	8677230	R type / X type	1 pieces
2.4	20	66	4	15	8672240	R type / X type	1 pieces
2.4	20	66	3	15	8677240	R type / X type	1 pieces
2.5	20	66	4	15	8672250	R type / X type	1 pieces
2.5	20	66	3	15	8677250	R type / X type	1 pieces
2.6	20	66	4	15	8672260	R type / X type	1 pieces
2.6	20	66	3	15	8677260	R type / X type	1 pieces
2.7	20	66	4	15	8672270	R type / X type	1 pieces
2.7	20	66	3	15	8677270	R type / X type	1 pieces
2.8	20	66	4	14	8672280	R type / X type	1 pieces
2.8	20	66	3	14	8677280	R type / X type	1 pieces
2.9	20	66	4	14	8672290	R type / X type	1 pieces
2.9	20	66	3	14	8677290	R type / X type	1 pieces
3	28	74	4	22	8672300	R type / X type	1 pieces
3	28	74	3	22	8677300	R type / X type	1 pieces
3.1	28	74	4	22	8672310	R type / X type	1 pieces
3.2	28	74	4	22	8672320	R type / X type	1 pieces
3.3	28	74	4	21	8672330	R type / X type	1 pieces
3.4	28	74	4	21	8672340	R type / X type	1 pieces
3.5	28	74	4	21	8672350	R type / X type	1 pieces
3.6	28	74	4	21	8672360	R type / X type	1 pieces
3.7	28	74	4	21	8672370	R type / X type	1 pieces
3.8	36	74	4	28	8672380	R type / X type	1 pieces
3.9	36	74	4	28	8672390	R type / X type	1 pieces
4	36	74	4	28	8672400	R type / X type	1 pieces
4.1	36	74	6	28	8672410	R type	1 pieces
4.1	36	74	5	28	8677410	R type	1 pieces
4.2	36	74	6	28	8672420	R type	1 pieces
4.2	36	74	5	28	8677420	R type	1 pieces
4.3	36	74	6	27	8672430	R type	1 pieces
4.3	36	74	5	27	8677430	R type	1 pieces
4.4	36	74	6	27	8672440	R type	1 pieces
4.4	36	74	5	27	8677440	R type	1 pieces
4.5	36	74	6	27	8672450	R type	1 pieces
4.5	36	74	5	27	8677450	R type	1 pieces
4.6	36	74	6	27	8672460	R type	1 pieces
4.6	36	74	5	27	8677460	R type	1 pieces
4.7	36	74	6	27	8672470	R type	1 pieces
4.7	36	74	5	27	8677470	R type	1 pieces
4.8	44	82	6	34	8672480	R type	1 pieces
4.8	44	82	5	34	8677480	R type	1 pieces
4.9	44	82	6	34	8672490	R type	1 pieces
4.9	44	82	5	34	8677490	R type	1 pieces
5	44	82	6	34	8672500	R type	1 pieces
5	44	82	5	34	8677500	R type	1 pieces
5.1	44	82	6	34	8672510	R type	1 pieces
5.2	44	82	6	34	8672520	R type	1 pieces
5.3	44	82	6	33	8672530	R type	1 pieces
5.4	44	82	6	33	8672540	R type	1 pieces
5.5	44	82	6	33	8672550	R type	1 pieces
5.6	44	82	6	33	8672560	R type	1 pieces
5.7	44	82	6	33	8672570	R type	1 pieces
5.8	44	82	6	33	8672580	R type	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

52.90 € ( 62.95 € )	15 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	15 working days
52.90 € ( 62.95 € )	15 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
52.90 € ( 62.95 € )	6 working days
43.71 € ( 52.01 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	6 working days
56.10 € ( 66.76 € )	15 working days
56.10 € ( 66.76 € )	15 working days
56.10 € ( 66.76 € )	6 working days
57.40 € ( 68.31 € )	6 working days
52.30 € ( 62.24 € )	6 working days
57.40 € ( 68.31 € )	6 working days
52.30 € ( 62.24 € )	6 working days
57.40 € ( 68.31 € )	15 working days
52.30 € ( 62.24 € )	6 working days
57.40 € ( 68.31 € )	6 working days
52.30 € ( 62.24 € )	6 working days
57.40 € ( 68.31 € )	15 working days
52.30 € ( 62.24 € )	6 working days
57.40 € ( 68.31 € )	6 working days
55.95 € ( 66.58 € )	6 working days
57.40 € ( 68.31 € )	6 working days
55.95 € ( 66.58 € )	6 working days
57.40 € ( 68.31 € )	6 working days
55.95 € ( 66.58 € )	6 working days
57.40 € ( 68.31 € )	6 working days
55.95 € ( 66.58 € )	6 working days
57.40 € ( 68.31 € )	6 working days
55.95 € ( 66.58 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days
63.90 € ( 76.04 € )	6 working days

Basic information

Basic information

[Features]
· Carbide 4D type drill with both high blade tip rigidity and good cutting resistance. Recommended for use on a wide range of materials.
Uses an EgiAs coating which boasts excellent wear resistance and toughness, helping achieve a longer tool life.
Wide flutes for improved chip discharging
Wave-shaped flutes that finely fragment the chips

Catalog

Products homepage

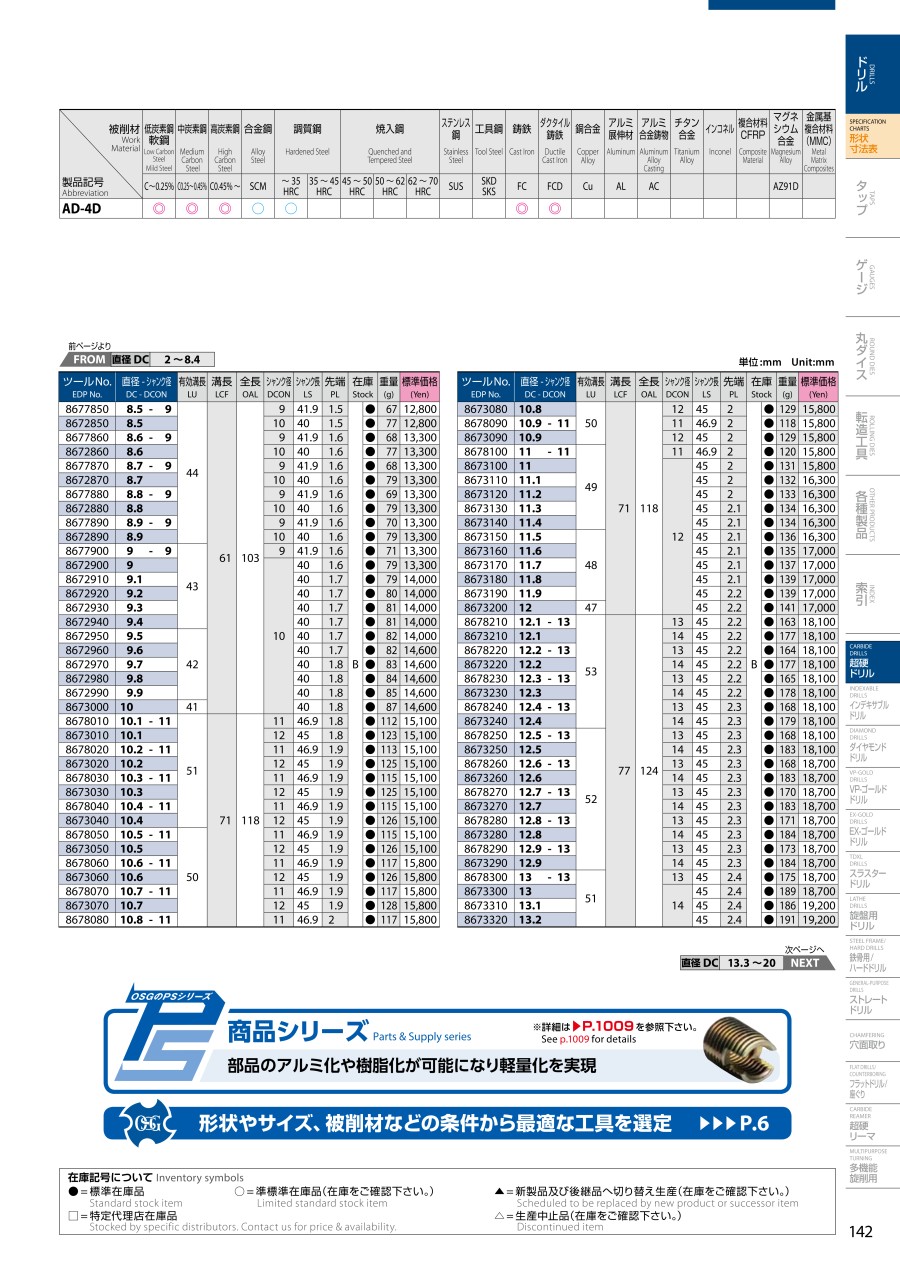

Catalog (2-page spread)
