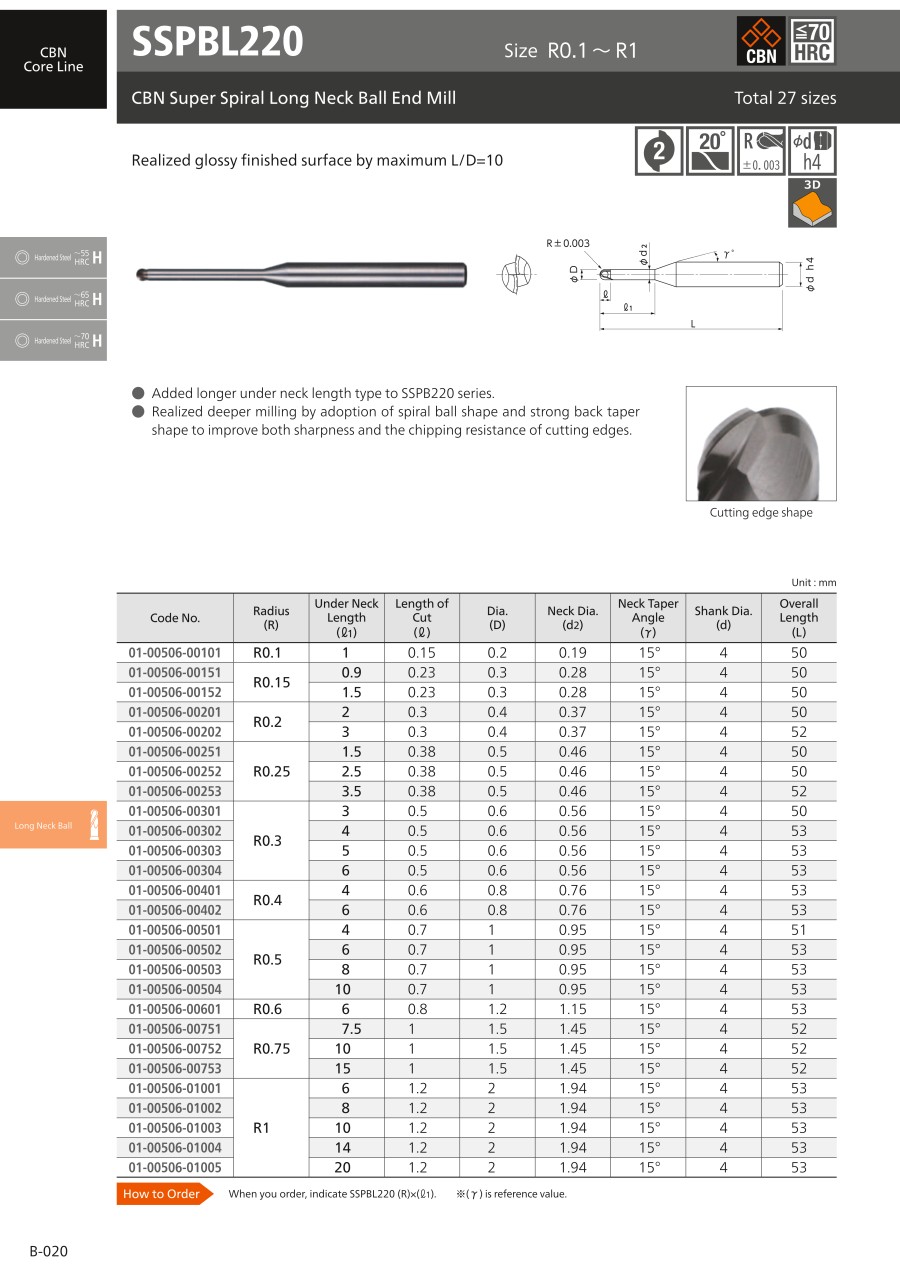

SSPBL220 CBN Super Spiral Long Neck Ball End Mill
· Supports deeper milling by utilizing the features of SSPB220 and through the use of a spiral ball shape and strong back taper shape to improve both sharpness and the chipping resistance of cutting edges.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | (D) Blade Diameter (mm) | (d2) Neck Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
182.44 € | 1 | 6 Days | 0.1 | 0.15 | - | 1 | 0.2 | 0.18 | ||
165.88 € | 1 | 6 Days | 0.2 | 0.3 | - | 2 | 0.4 | 0.37 | ||
165.88 € | 1 | 6 Days | 0.2 | 0.3 | 52 | 3 | 0.4 | 0.37 | ||
154.84 € | 1 | 6 Days | 0.3 | 0.5 | - | 3 | 0.6 | 0.56 | ||
154.84 € | 1 | 6 Days | 0.3 | 0.5 | 53 | 4 | 0.6 | 0.56 | ||
157.60 € | 1 | 6 Days | 0.3 | 0.5 | 53 | 5 | 0.6 | 0.56 | ||
157.60 € | 1 | 6 Days | 0.3 | 0.5 | 53 | 6 | 0.6 | 0.56 | ||
154.84 € | 1 | 6 Days | 0.4 | 0.6 | 53 | 4 | 0.8 | 0.76 | ||
154.84 € | 1 | 6 Days | 0.4 | 0.6 | 53 | 6 | 0.8 | 0.76 | ||
154.84 € | 1 | 6 Days | 0.5 | 0.7 | 51 | 4 | 1 | 0.95 | ||
154.84 € | 1 | 6 Days | 0.5 | 0.7 | 53 | 6 | 1 | 0.95 | ||
157.60 € | 1 | 6 Days | 0.5 | 0.7 | 53 | 8 | 1 | 0.95 | ||
157.60 € | 1 | 6 Days | 0.5 | 0.7 | 53 | 10 | 1 | 0.95 | ||
160.36 € | 1 | 6 Days | 0.6 | 0.8 | 53 | 6 | 1.2 | 1.15 | ||
174.16 € | 1 | 6 Days | 0.15 | 0.23 | - | 0.9 | 0.3 | 0.28 | ||
174.16 € | 1 | 6 Days | 0.15 | 0.23 | - | 1.5 | 0.3 | 0.28 | ||
160.36 € | 1 | 6 Days | 0.25 | 0.38 | - | 1.5 | 0.5 | 0.46 | ||
160.36 € | 1 | 6 Days | 0.25 | 0.38 | - | 2.5 | 0.5 | 0.46 | ||
160.36 € | 1 | 6 Days | 0.25 | 0.38 | 52 | 3.5 | 0.5 | 0.46 | ||
160.36 € | 1 | 6 Days | 0.75 | 1 | 52 | 7.5 | 1.5 | 1.45 | ||
160.36 € | 1 | 6 Days | 0.75 | 1 | 52 | 10 | 1.5 | 1.45 | ||
160.36 € | 1 | 6 Days | 0.75 | 1 | 52 | 15 | 1.5 | 1.45 | ||
160.36 € | 1 | 6 Days | 1 | 1.2 | 53 | 6 | 2 | 1.94 | ||
160.36 € | 1 | 6 Days | 1 | 1.2 | 53 | 8 | 2 | 1.94 | ||
163.12 € | 1 | 6 Days | 1 | 1.2 | 53 | 10 | 2 | 1.94 | ||
163.12 € | 1 | 6 Days | 1 | 1.2 | 53 | 14 | 2 | 1.94 | ||
163.12 € | 1 | 6 Days | 1 | 1.2 | 53 | 20 | 2 | 1.94 |
Loading...
Basic information
| Type | Long-Neck Ball | work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | Non-Coated | R Precision(μm) | -0.003 to 0.003 | Machining Application | Curved surface |
| With/Without Torsion | Yes | (γ) Neck Angle(°) | 15° |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Underneck length (ℓ1)(mm)
-
Type
- SSPBL220
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
