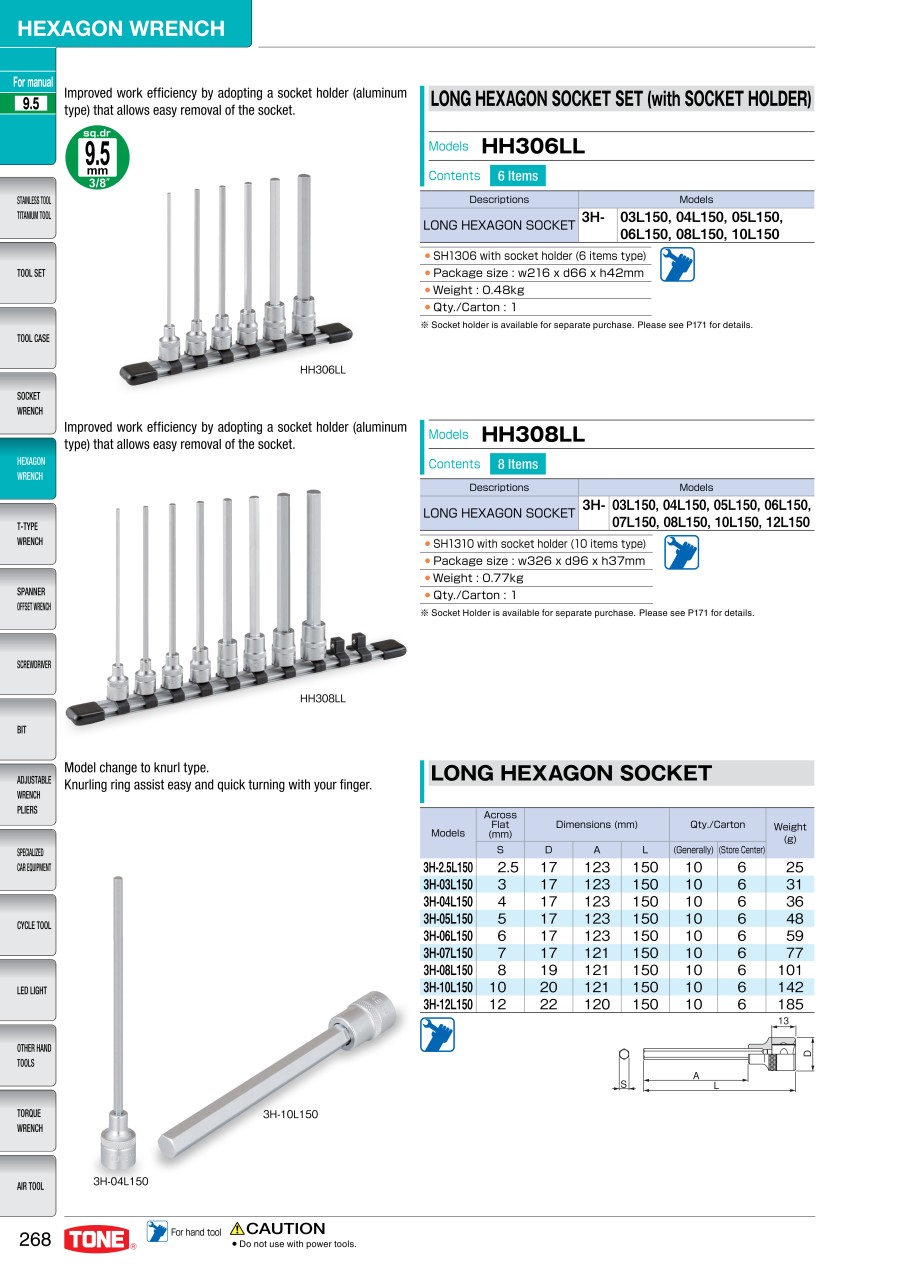

Ultra-Long Hexagon Socket 3H
· The knurled outer surface allows a bolt to be quickly and easily turned by fingers.
· Its ultra-long size makes it possible to reach an area that is otherwise inaccessible.
[Applications]
· For hand tools
(i)Remark
- The image is an example. Please do not use this product for powered tools, such as an impact wrench.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3H-03L150 |
| 3H-04L150 |
| 3H-05L150 |
| 3H-06L150 |
| 3H-07L150 |
| 3H-08L150 |
| 3H-2.5L150 |
| 3H-10L150 |
| 3H-12L150 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width across flat dimension (S Measurement) | Width across flat part external diameter (measurement D1) (mm) | Shaft length (A measurement) hexagon only (mm) | Mass (g) | |
|---|---|---|---|---|---|---|---|---|
16.45 € | 1 | 9 Days | 3 mm | 17 | 123 | 31 | ||
16.67 € | 1 | 5 Days | - | 17 | 123 | 36 | ||
16.67 € | 1 | 9 Days | - | 17 | 123 | 48 | ||
16.67 € | 1 | 5 Days | - | 17 | 123 | 59 | ||
16.79 € | 1 | 9 Days | - | 17 | 121 | 77 | ||
16.03 € | 1 | 9 Days | - | 19 | 121 | 101 | ||
16.40 € | 1 | 9 Days | 2.5 mm | 17 | 123 | 25 | ||
18.07 € | 1 | 9 Days | - | 20 | 121 | 142 | ||
21.48 € | 1 | 9 Days | - | 22 | 120 | 185 |
Loading...
Basic information
| Single Product/Set Classification | Single Item Socket | Application | For handwork | Insertion Angle (Shaft measurement when electric drill) (mm) | 9.5 |
|---|---|---|---|---|---|
| Socket shape | 6 Sq. | Overall length (L dimension)(mm) | 150 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
