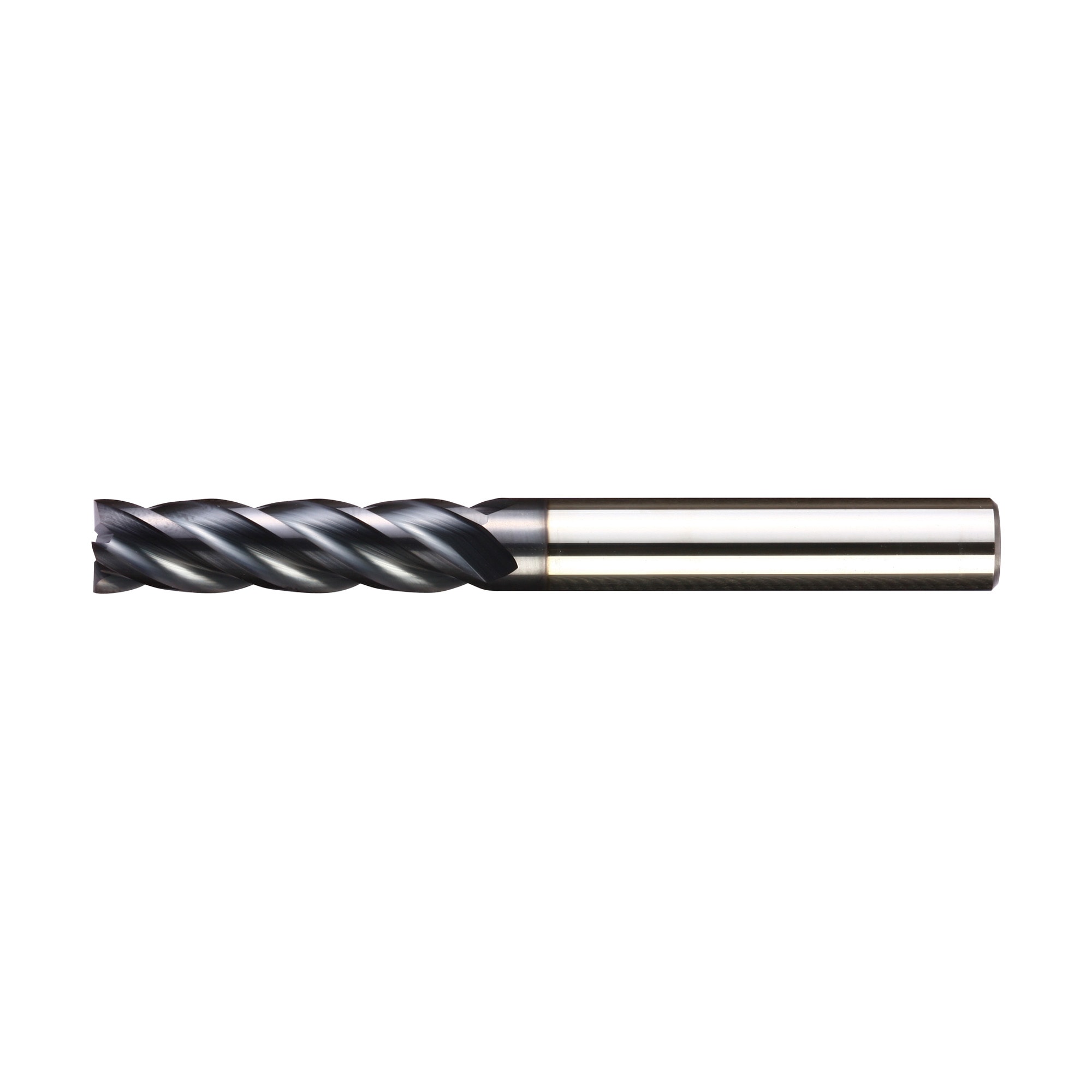

Coated (TiAIN) Solid Carbide End Mills (4 Flutes, Medium) IC4SLV
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
· Outstanding cost performance.
· Capable of machining a wide range of workpieces from raw materials up to alloy steel.
· TiAlN coated for a longer tool life.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| IC4SLV-3.0 |
| IC4SLV-4.0 |
| IC4SLV-5.0 |
| IC4SLV-6.0 |
| IC4SLV-8.0 |
| IC4SLV-10.0 |
| IC4SLV-12.0 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | |
|---|---|---|---|---|---|---|---|---|
31.09 € | 1 | Available | 6 Days | 3 | 12 | 6 | 50 | |
32.28 € | 1 | Available | 6 Days | 4 | 16 | 6 | 50 | |
33.49 € | 1 | Available | 6 Days | 5 | 20 | 6 | 60 | |
35.85 € | 1 | Available | 6 Days | 6 | 24 | 6 | 60 | |
54.90 € | 1 | Available | 6 Days | 8 | 32 | 8 | 75 | |
69.20 € | 1 | Available | 6 Days | 10 | 40 | 10 | 100 | |
96.79 € | 1 | 6 Days | 12 | 48 | 12 | 100 |
Loading...
Basic information
| work material | General Steel / Quenched and tempered steel / Stainless Steel | Number of flutes(sheet) | 4 | Type | Long-Neck Square |
|---|---|---|---|---|---|
| Coating | TiAlN | Machining Application | Side / Groove | Torsion Angle (θ) | Standard Helix (30˚ to 40˚) |
| Tool material type | Ultra-fine particle carbide | Torsion angle - details(°) | 35 |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
