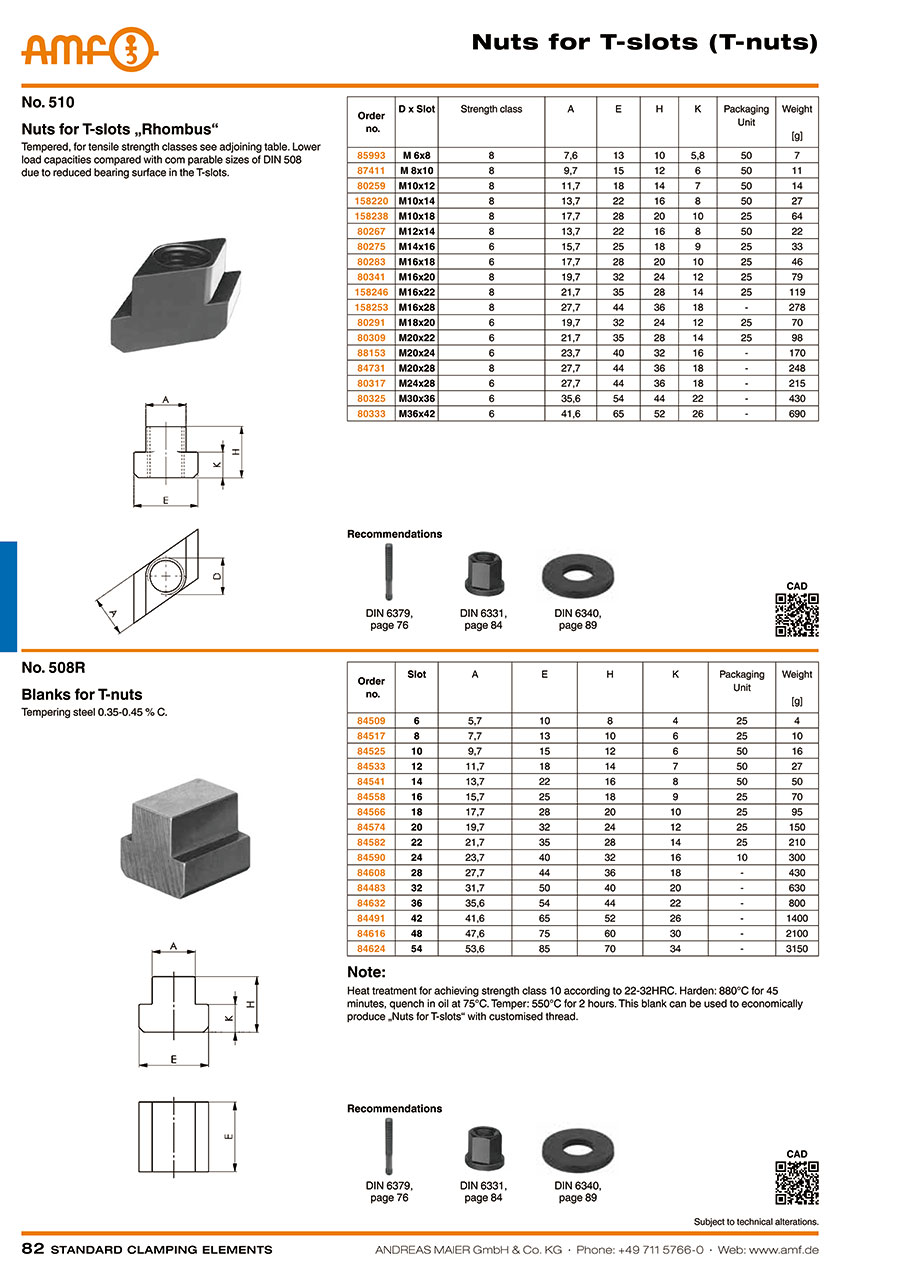

508R Blanks for T-nuts
- Volume Discount
Blanks for T-nuts Tempering steel 0.35-0.45 % C. The product is available per 1 peace.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
|---|
| 84483 |
| 84491 |
| 84509 |
| 84517 |
| 84525 |
| 84533 |
| 84541 |
| 84558 |
| 84566 |
| 84574 |
| 84582 |
| 84590 |
| 84608 |
| 84616 |
| 84624 |
| 84632 |
| Part Number | Standard Unit Price | Volume Discount | Shipping Days? | RoHS | A | E | H | K | Packaging Unit | Slot | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
22.40 € | Available | 5 Days | 10 | 31,7 | 50 | 40 | 20 | - | 32 | 630 | |
34.80 € | Available | 5 Days | 10 | 41,6 | 65 | 52 | 26 | - | 42 | 1400 | |
1.16 € | Available | 5 Days | 10 | 5,7 | 10 | 8 | 4 | 25 | 6 | 4 | |
1.16 € | Available | 5 Days | 10 | 7,7 | 13 | 10 | 6 | 25 | 8 | 10 | |
1.21 € | Available | 5 Days | 10 | 9,7 | 15 | 12 | 6 | 50 | 10 | 16 | |
1.40 € | Available | 5 Days | 10 | 11,7 | 18 | 14 | 7 | 50 | 12 | 27 | |
1.89 € | Available | 5 Days | 10 | 13,7 | 22 | 16 | 8 | 50 | 14 | 50 | |
2.10 € | Available | 5 Days | 10 | 15,7 | 25 | 18 | 9 | 25 | 16 | 70 | |
2.76 € | Available | 5 Days | 10 | 17,7 | 28 | 20 | 10 | 25 | 18 | 95 | |
3.91 € | Available | 5 Days | 10 | 19,7 | 32 | 24 | 12 | 25 | 20 | 150 | |
4.61 € | Available | 5 Days | 10 | 21,7 | 35 | 28 | 14 | 25 | 22 | 210 | |
7.16 € | Available | 5 Days | 10 | 23,7 | 40 | 32 | 16 | 10 | 24 | 300 | |
8.96 € | Available | 5 Days | 10 | 27,7 | 44 | 36 | 18 | - | 28 | 430 | |
55.50 € | Available | 5 Days | 10 | 47,6 | 75 | 60 | 30 | - | 48 | 2100 | |
67.50 € | 5 Days | 10 | 53,6 | 85 | 70 | 34 | - | 54 | 3150 | ||
19.70 € | Available | 5 Days | 10 | 35,6 | 54 | 44 | 22 | - | 36 | 800 |
Loading...
Configure
Narrow search by specifying spec./dim.
-
A
-
E
-
H
-
K
-
Packaging Unit
- 10
- 25
- 50
-
Slot
-
Type
- 844
- 845
- 846
Narrow search by specifying lead time
-
- All
- 5 Days or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
