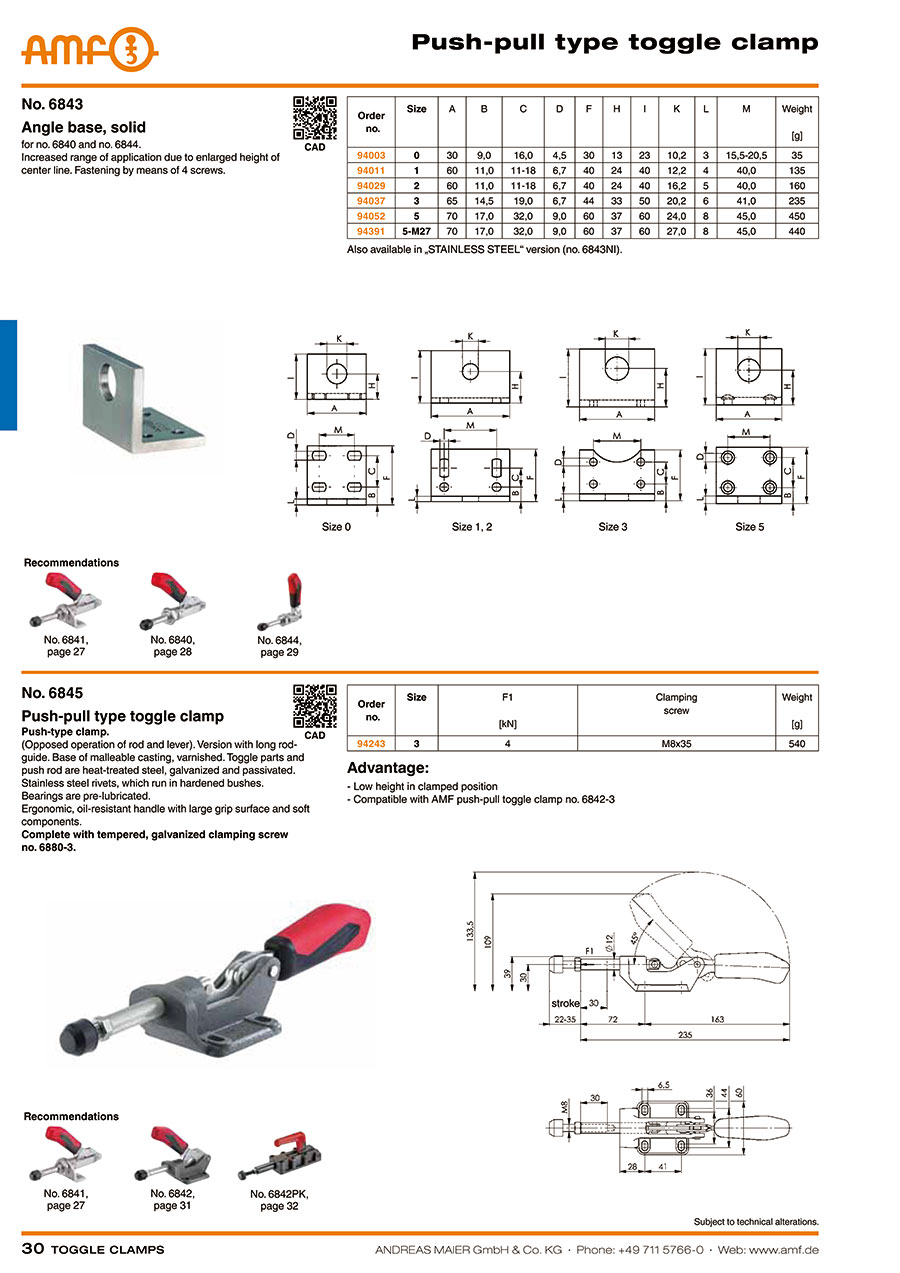

6843 Angle base, solid
- Volume Discount
Increased range of application due to enlarged height of center line. Fastening by means of 4 screws. The product is available per 1 peace.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 94003 |
| 94011 |
| 94029 |
| 94037 |
| 94052 |
| 94391 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | A | B | C | D | F | H | I | K | L | M | Size | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.99 € | 1 | Available | 7 Days | 10 | 30 | 9,0 | 16,0 | 4,5 | 30 | 13 | 23 | 10,2 | 3 | 15,5-20,5 | 0 | 35 | |
12.19 € | 1 | Available | 4 Days | 10 | 60 | 11,0 | 11-18 | 6,7 | 40 | 24 | 40 | 12,2 | 4 | 40,0 | 1 | 135 | |
13.72 € | 1 | Available | 4 Days | 10 | 60 | 11,0 | 11-18 | 6,7 | 40 | 24 | 40 | 16,2 | 5 | 40,0 | 2 | 160 | |
23.54 € | 1 | Available | 4 Days | 10 | 65 | 14,5 | 19,0 | 6,7 | 44 | 33 | 50 | 20,2 | 6 | 41,0 | 3 | 235 | |
42.53 € | 1 | Available | 4 Days | 10 | 70 | 17,0 | 32,0 | 9,0 | 60 | 37 | 60 | 24,0 | 8 | 45,0 | 5 | 450 | |
53.03 € | 1 | Available | 4 Days | 10 | 70 | 17,0 | 32,0 | 9,0 | 60 | 37 | 60 | 27,0 | 8 | 45,0 | 5-M27 | 440 |
Loading...
Configure
Basic Attributes
-
A
-
B
-
C
-
D
-
F
-
H
-
I
-
K
-
L
-
M
-
Size
-
Type
- 940
- 943
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
