GANTER

Flanged connector clamps / Aluminium / GN 146.3 / 2-with Stainless Steel-clamping screw DIN 912

Flanged connector clamps / Aluminium / GN 146.3 / 2-with Stainless Steel-clamping screw DIN 912

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    146.3-B20-40-2-BL
    146.3-B20-40-2-SW
    146.3-B25-40-2-BL
    146.3-B25-40-2-SW
    146.3-B30-40-2-BL
    146.3-B30-40-2-SW
    146.3-B30-56-2-BL
    146.3-B30-56-2-SW
    146.3-B32-56-2-BL
    146.3-B32-56-2-SW
    146.3-B35-56-2-BL
    Order suspended
    146.3-B35-56-2-SW
    146.3-B40-56-2-BL
    146.3-B40-56-2-SW

    Bore d1

    Finish

    Clamping length k

    Weight

    (kg)

    		Minimum order quantity
    B 20
    BL-blank
    40
    0.180
    1 pieces
    B 20
    SW - black, RAL 9005, textured finish
    40
    0.180
    1 pieces
    B 25
    BL-blank
    40
    0.180
    1 pieces
    B 25
    SW - black, RAL 9005, textured finish
    40
    0.185
    1 pieces
    B 30
    BL-blank
    40
    0.160
    1 pieces
    B 30
    SW - black, RAL 9005, textured finish
    40
    0.154
    1 pieces
    B 30
    BL-blank
    56
    0.450
    1 pieces
    B 30
    SW - black, RAL 9005, textured finish
    56
    0.510
    1 pieces
    B 32
    BL-blank
    56
    0.480
    1 pieces
    B 32
    SW - black, RAL 9005, textured finish
    56
    0.480
    1 pieces
    B 35
    BL-blank
    56
    0.480
    1 pieces
    B 35
    SW - black, RAL 9005, textured finish
    56
    0.480
    1 pieces
    B 40
    BL-blank
    56
    0.420
    1 pieces
    B 40
    SW - black, RAL 9005, textured finish
    56
    0.440
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    23.28 €
    ( 27.70 € )
    7 working days
    23.36 €
    ( 27.80 € )
    7 working days
    23.28 €
    ( 27.70 € )
    7 working days
    23.36 €
    ( 27.80 € )
    7 working days
    23.28 €
    ( 27.70 € )
    7 working days
    23.26 €
    ( 27.68 € )
    7 working days
    40.80 €
    ( 48.55 € )
    7 working days
    40.90 €
    ( 48.67 € )
    7 working days
    40.80 €
    ( 48.55 € )
    7 working days
    40.90 €
    ( 48.67 € )
    7 working days
    40.80 €
    ( 48.55 € )
    7 working days
    40.90 €
    ( 48.67 € )
    7 working days
    40.80 €
    ( 48.55 € )
    7 working days
    40.90 €
    ( 48.67 € )
    7 working days
  • 1

    • More Information

    Basic information

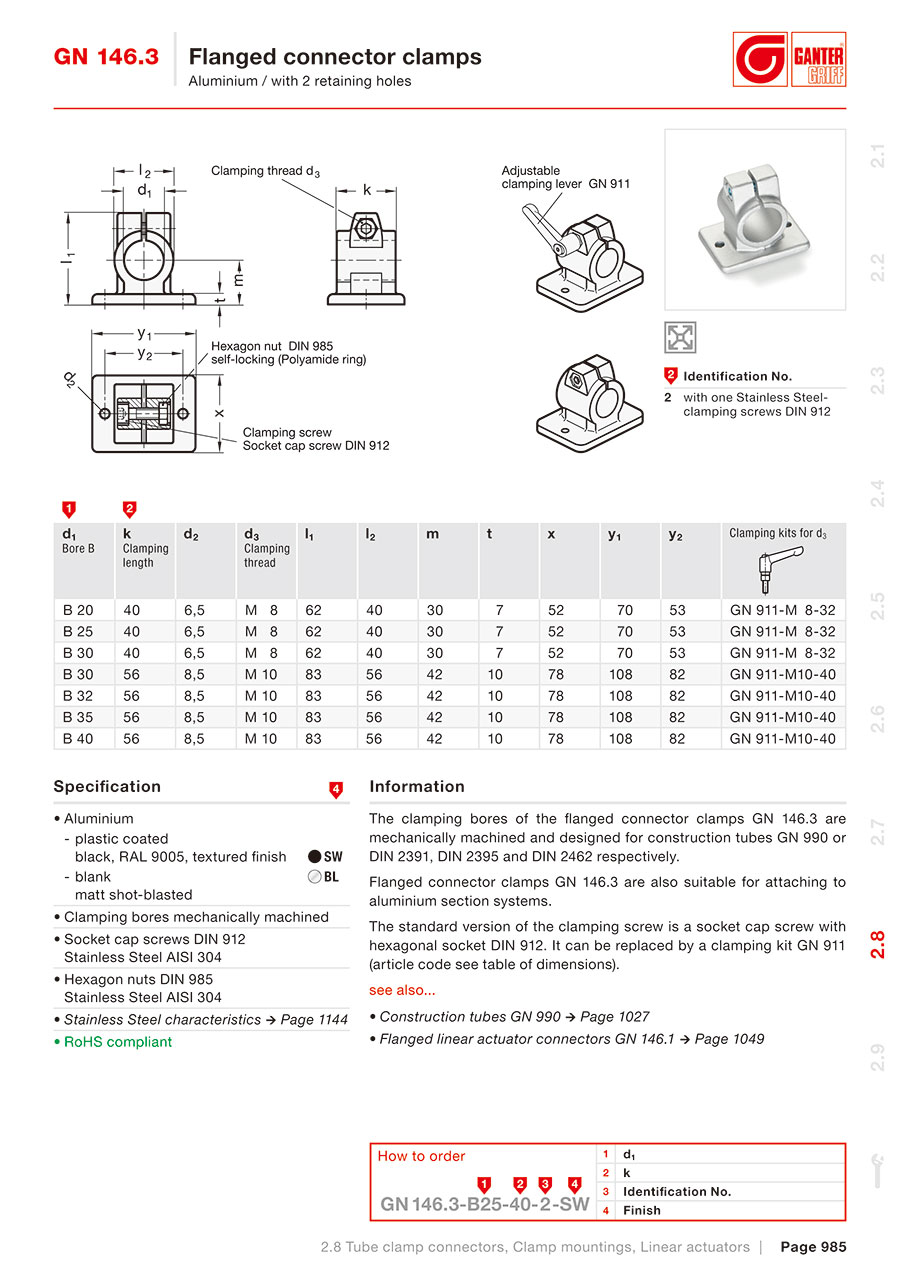

    The clamping bores of GN 146.3 flanged connector clamps are mechanically machined and designed for construction tubings GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.
    GN 146.3 flanged connector clamps are also suitable for mounting on profile systems.
    The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911 (article code see table of dimensions).
