Ratchet spanners, Steel
- Promotional pricing ends 31/12/2024
- Volume Discount

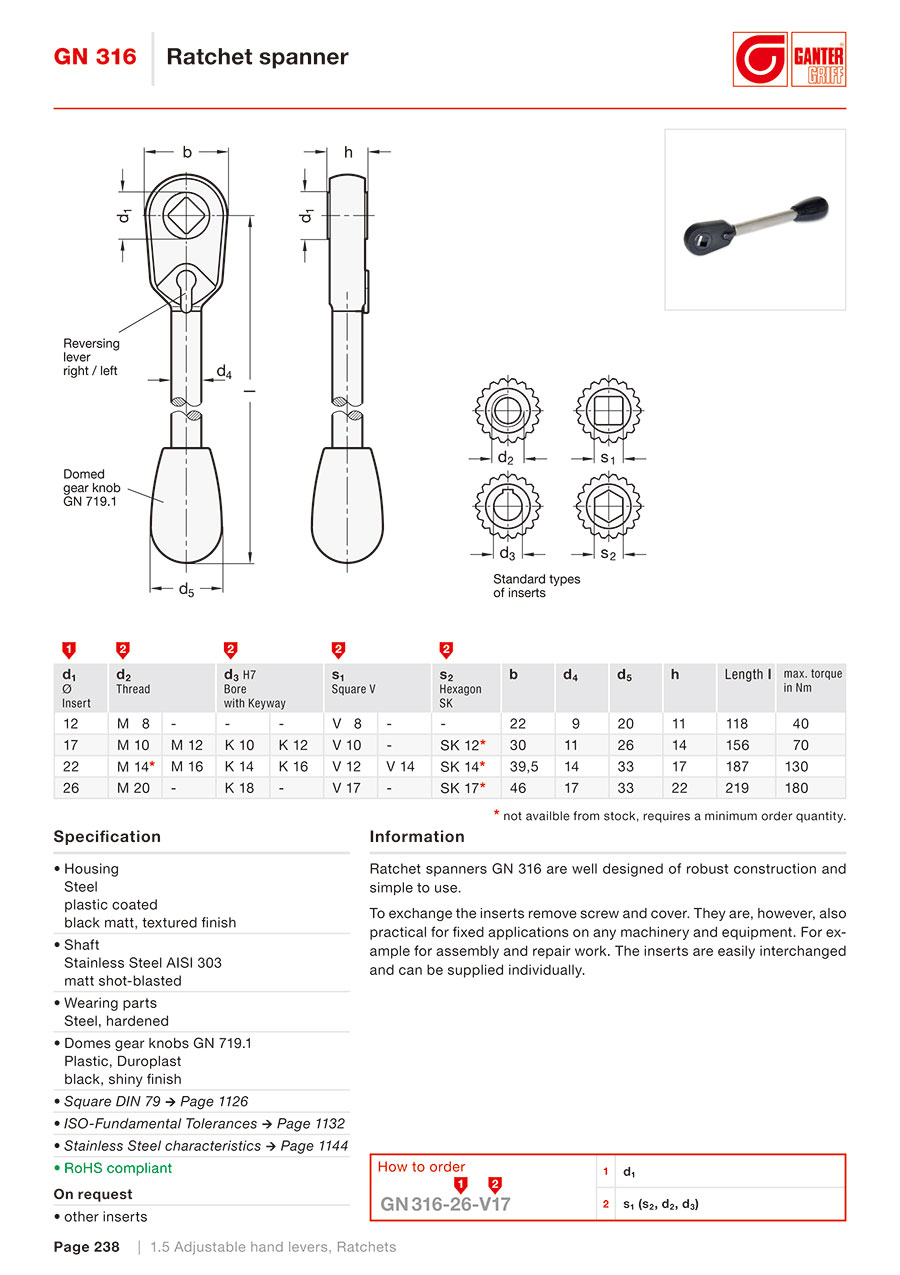

To exchange the inserts remove screw and cover. They are, however, also practical for fixed applications on any machinery and equipment. For example for assembly and repair work. The inserts are easily interchanged and can be supplied individually.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 316-12-M8 |
| 316-12-V8 |
| 316-17-K10 |
| 316-17-K12 |
| 316-17-M10 |
| 316-17-M12 |
| 316-17-SK12 |
| 316-17-V10 |
| 316-22-K14 |
| 316-22-K16 |
| 316-22-M16 |
| 316-22-SK14 |
| 316-22-V12 |
| 316-22-V14 |
| 316-26-K18 |
| 316-26-M20 |
| 316-26-SK17 |
| 316-26-V17 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Insert diameter d1 | Connection thread d2 | Coupling hole d3 | Connection square s1 | Connection hexagon s2 | |
|---|---|---|---|---|---|---|---|---|---|
85.52 € | 1 | Available | 7 Days | 12 | M 8 | - | - | - | |
89.32 € | 1 | Available | 7 Days | 12 | - | - | V 8 | - | |
97.92 € | 1 | Available | 7 Days | 17 | - | K 10 | - | - | |
97.92 € | 1 | Available | 7 Days | 17 | - | K 12 | - | - | |
93.28 € | 1 | Available | 7 Days | 17 | M 10 | - | - | - | |
93.28 € | 1 | Available | 7 Days | 17 | M 12 | - | - | - | |
97.92 € | 1 | Available | 7 Days | 17 | - | - | - | SK 12 | |
98.50 € | 1 | Available | 7 Days | 17 | - | - | V 10 | - | |
117.82 € 62.44 € | 1 | Available |
Same day
Stock | 22 | - | K 14 | - | - | |
117.82 € | 1 | Available | 7 Days | 22 | - | K 16 | - | - | |
113.46 € | 1 | Available | 7 Days | 22 | M 16 | - | - | - | |
117.82 € | 1 | Available | 7 Days | 22 | - | - | - | SK 14 | |
110.00 € | 1 | Available | 7 Days | 22 | - | - | V 12 | - | |
110.00 € | 1 | Available | 7 Days | 22 | - | - | V 14 | - | |
140.58 € | 1 | Available | 7 Days | 26 | - | K 18 | - | - | |
135.52 € | 1 | Available | 7 Days | 26 | M 20 | - | - | - | |
140.58 € | 1 | Available | 7 Days | 26 | - | - | - | SK 17 | |
139.98 € | 1 | Available | 7 Days | 26 | - | - | V 17 | - |
Loading...
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Insert diameter d1
- 12
- 17
- 22
- 26
-
Connection thread d2
- M 8
- M 10
- M 12
- M 16
- M 20
-
Coupling hole d3
- K 10
- K 12
- K 14
- K 16
- K 18
-
Connection square s1
- V 8
- V 10
- V 12
- V 14
- V 17
-
Connection hexagon s2
- SK 12
- SK 14
- SK 17
-
Type
- 316
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
