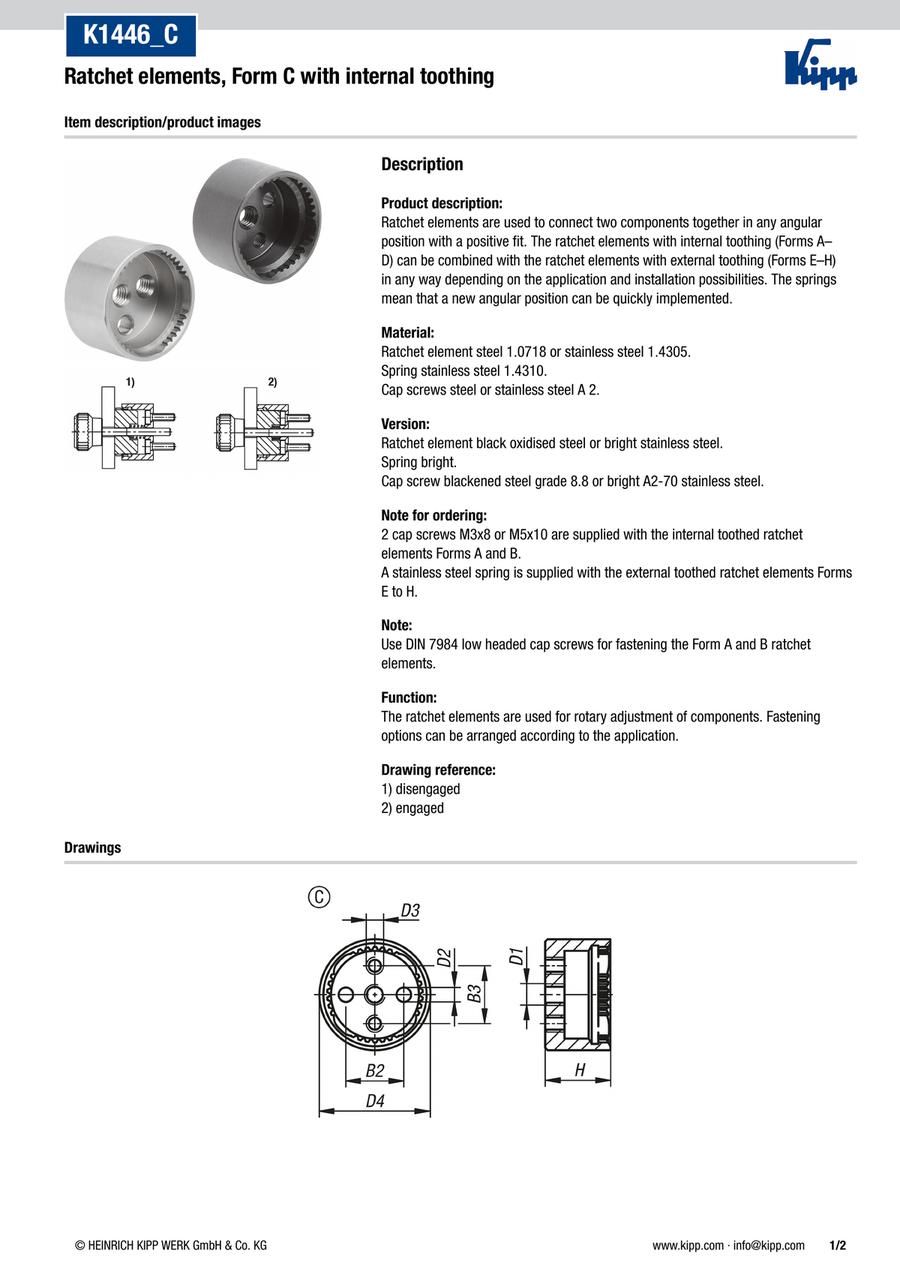

Ratchet elements, Form C with internal toothing (K1446)
· Defined position due to positive connection
· compact design
· Small adjustable angle (9° or 7.5°)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1446.132338 |
| K1446.133346 |
| K1446.32338 |
| K1446.33346 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Surface finish body | B2 (mm) | B3 (mm) | D1=Thread | D2=Fitting bore | D3=Thread | D4=Outside diameter (mm) | H=Height (mm) | No. of teeth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.17 € | 1 | 4 Days | Stainless steel | bright | 12 | 12 | M4 | 3H8 | M3 | 23 | 13.5 | 38 | ||
19.07 € | 1 | 4 Days | Stainless steel | bright | 18 | 18 | M6 | 5H8 | M5 | 33 | 19.5 | 46 | ||
12.19 € | 1 | 4 Days | Steel | black oxidised | 12 | 12 | M4 | 3H8 | M3 | 23 | 13.5 | 38 | ||
14.56 € | 1 | 4 Days | Steel | black oxidised | 18 | 18 | M6 | 5H8 | M5 | 33 | 19.5 | 46 |
Loading...
Basic information
| Form | C |
|---|
Configure
Basic Attributes
-
Main material
- Stainless steel
- Steel
-
Surface finish body
- black oxidised
- bright
-
B2(mm)
-
B3(mm)
-
D1=Thread
-
D2=Fitting bore
- 3H8
- 5H8
-
D3=Thread
-
D4=Outside diameter(mm)
- 23
- 33
-
H=Height(mm)
-
No. of teeth
- 38
- 46
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
