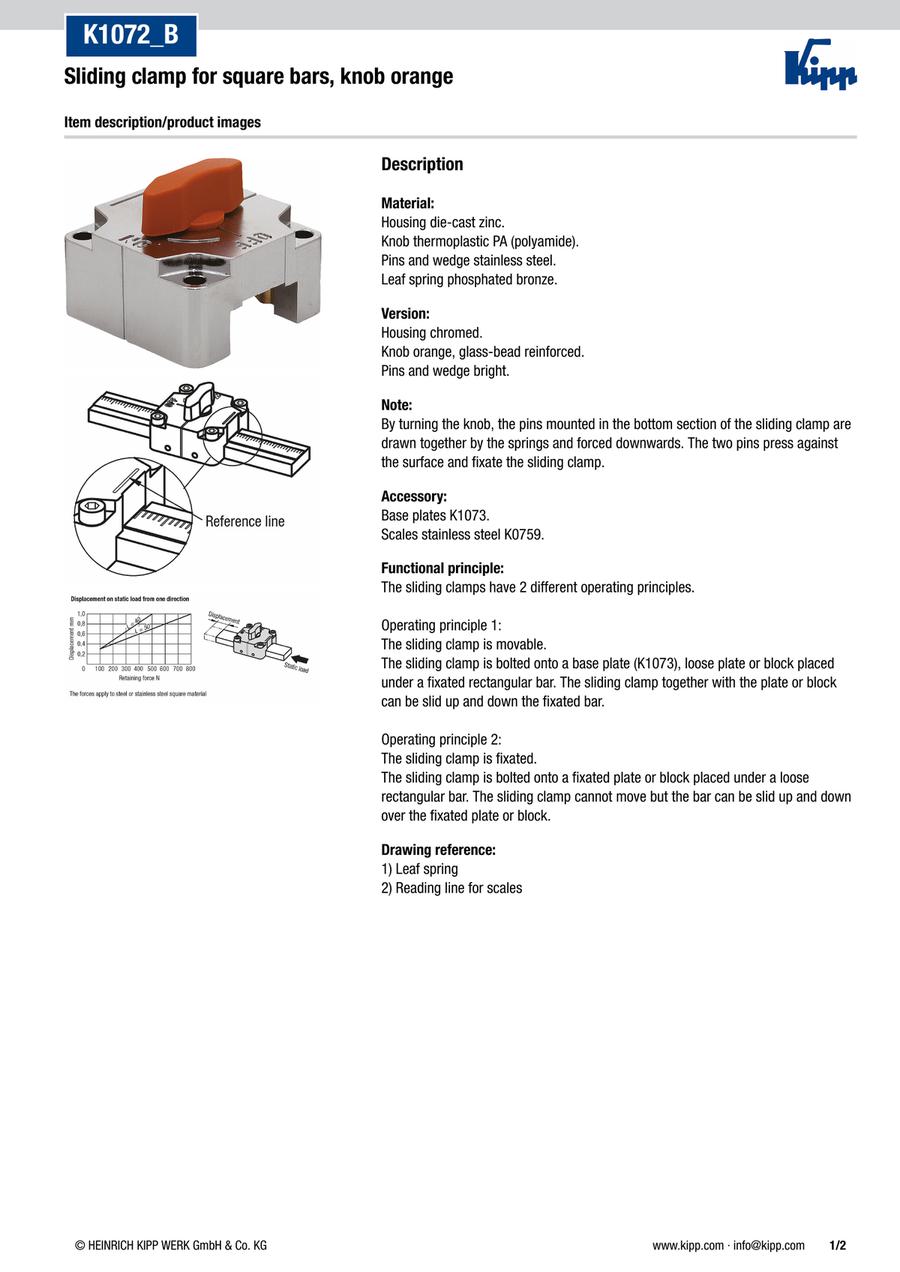

Sliding clamp for square bars, knob orange (K1072)
· Variable stop element
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1072.12122 |
| K1072.16162 |
| K1072.25122 |
| K1072.2592 |
| K1072.32122 |
| K1072.32162 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D (mm) | D1 (mm) | H=Height (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | H5 (mm) | L=Length (mm) | P (mm) | S (mm) | W (mm) | Holding force (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
55.55 € | 1 | 4 Days | 28 | 4.5 | 36 | 22 | 18.5 | 12 | - | 6 | 40 | 32 | - | 12 | 500 | ||
55.55 € | 1 | 4 Days | 28 | 4.5 | 40 | 26 | 22.5 | 16 | - | 8 | 40 | 32 | - | 16 | 500 | ||
59.75 € | 1 | 4 Days | 35 | 5.5 | 40 | 26 | 21.5 | 12 | 1 | 6 | 50 | 40 | 16 | 25 | 800 | ||
59.75 € | 1 | 4 Days | 35 | 5.5 | 37 | 23 | 18.5 | 9 | 1 | 4.5 | 50 | 40 | 16 | 25 | 800 | ||
59.75 € | 1 | 4 Days | 35 | 5.5 | 40 | 26 | 21.5 | 12 | 1 | 6 | 50 | 40 | 16 | 32 | 800 | ||
59.75 € | 1 | 4 Days | 35 | 5.5 | 44 | 30 | 25.5 | 16 | 1 | 8 | 50 | 40 | 16 | 32 | 800 |
Loading...
Basic information
| Main material | Zinc | Main colour | orange | Component material | Thermoplastic |
|---|---|---|---|---|---|
| Temperature resistance(°C) | ≤90 |
Configure
Basic Attributes
-
D(mm)
-
D1(mm)
-
H=Height(mm)
-
H1(mm)
-
H2(mm)
-
H3(mm)
-
H4(mm)
-
H5(mm)
-
L=Length(mm)
-
P(mm)
- 32
- 40
-
S(mm)
-
W(mm)
-
Holding force(N)
- 500
- 800
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
