Configure

Slot width(mm)
- 12
- 14
- 16
- 18
- 20
- 22
- 24
- 28
A(mm)
- 11.7
- 13.7
- 15.7
- 17.7
- 19.7
- 21.7
- 23.7
- 27.7
B=Thread length(mm)
- 35
- 45
- 55
- 65
- 70
- 75
- 85
- 100
- 110
- 120
- 125
- 150
- 190
- 240
D1=Thread
- M12
- M16
- M20
- M24
E1/E2(mm)
- 18
- 22
- 25
- 28
- 32
- 35
- 40
- 44
G=Thread
- M12
- M16
- M20
- M24
K(mm)
- 7
- 8
- 9
- 10
- 12
- 14
- 16
- 18
L=Length(mm)
- 50
- 63
- 80
- 100
- 125
- 160
- 200
- 250
- 315
- 400
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

T-slot bolts DIN 787, 12.9 (K0699)

T-slot bolts DIN 787, 12.9 (K0699)

Catalog

Part number:

Still undefined. 38 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Slot width

(mm)

A

(mm)

B=Thread length

(mm)

D1=Thread

E1/E2

(mm)

G=Thread

K

(mm)

L=Length

(mm)

Minimum order quantity

12	11.7	35	M12	18	M12	7	50	1 pieces
12	11.7	55	M12	18	M12	7	80	1 pieces
12	11.7	65	M12	18	M12	7	100	1 pieces
12	11.7	75	M12	18	M12	7	125	1 pieces
12	11.7	100	M12	18	M12	7	160	1 pieces
12	11.7	120	M12	18	M12	7	200	1 pieces
14	13.7	35	M12	22	M12	8	50	1 pieces
14	13.7	55	M12	22	M12	8	80	1 pieces
14	13.7	65	M12	22	M12	8	100	1 pieces
14	13.7	75	M12	22	M12	8	125	1 pieces
14	13.7	100	M12	22	M12	8	160	1 pieces
14	13.7	120	M12	22	M12	8	200	1 pieces
16	15.7	45	M16	25	M16	9	63	1 pieces
16	15.7	65	M16	25	M16	9	100	1 pieces
16	15.7	85	M16	25	M16	9	125	1 pieces
16	15.7	100	M16	25	M16	9	160	1 pieces
16	15.7	150	M16	25	M16	9	250	1 pieces
18	17.7	45	M16	28	M16	10	63	1 pieces
18	17.7	65	M16	28	M16	10	100	1 pieces
18	17.7	85	M16	28	M16	10	125	1 pieces
18	17.7	100	M16	28	M16	10	160	1 pieces
18	17.7	150	M16	28	M16	10	250	1 pieces
20	19.7	55	M20	32	M20	12	80	1 pieces
20	19.7	85	M20	32	M20	12	125	1 pieces
20	19.7	125	M20	32	M20	12	200	1 pieces
20	19.7	190	M20	32	M20	12	315	1 pieces
22	21.7	55	M20	35	M20	14	80	1 pieces
22	21.7	85	M20	35	M20	14	125	1 pieces
22	21.7	125	M20	35	M20	14	200	1 pieces
22	21.7	190	M20	35	M20	14	315	1 pieces
24	23.7	70	M24	40	M24	16	100	1 pieces
24	23.7	110	M24	40	M24	16	160	1 pieces
24	23.7	150	M24	40	M24	16	250	1 pieces
24	23.7	240	M24	40	M24	16	400	1 pieces
28	27.7	70	M24	44	M24	18	100	1 pieces
28	27.7	110	M24	44	M24	18	160	1 pieces
28	27.7	150	M24	44	M24	18	250	1 pieces
28	27.7	240	M24	44	M24	18	400	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

8.31 € ( 9.89 € )	4 working days
8.84 € ( 10.52 € )	4 working days
9.88 € ( 11.76 € )	4 working days
10.07 € ( 11.98 € )	4 working days
12.09 € ( 14.39 € )	4 working days
13.36 € ( 15.90 € )	4 working days
9.29 € ( 11.06 € )	4 working days
9.38 € ( 11.16 € )	4 working days
10.58 € ( 12.59 € )	4 working days
10.73 € ( 12.77 € )	4 working days
12.80 € ( 15.23 € )	4 working days
13.46 € ( 16.02 € )	4 working days
11.56 € ( 13.76 € )	4 working days
12.14 € ( 14.45 € )	4 working days
14.46 € ( 17.21 € )	4 working days
15.02 € ( 17.87 € )	4 working days
19.90 € ( 23.68 € )	4 working days
11.82 € ( 14.07 € )	4 working days
12.64 € ( 15.04 € )	4 working days
14.77 € ( 17.58 € )	4 working days
15.32 € ( 18.23 € )	4 working days
18.78 € ( 22.35 € )	4 working days
17.68 € ( 21.04 € )	4 working days
18.18 € ( 21.63 € )	4 working days
21.60 € ( 25.70 € )	4 working days
30.21 € ( 35.95 € )	4 working days
17.17 € ( 20.43 € )	4 working days
18.00 € ( 21.42 € )	4 working days
21.60 € ( 25.70 € )	4 working days
30.21 € ( 35.95 € )	4 working days
26.91 € ( 32.02 € )	4 working days
29.45 € ( 35.05 € )	4 working days
39.23 € ( 46.68 € )	4 working days
54.20 € ( 64.50 € )	4 working days
22.52 € ( 26.80 € )	4 working days
28.91 € ( 34.40 € )	4 working days
36.04 € ( 42.89 € )	4 working days
52.74 € ( 62.76 € )	4 working days

More Information

Basic information

Basic information

· Rapid assembly for slot dimensions of 6 mm to 42 mm

· Rolled thread (increased strength)

Catalog

Products homepage

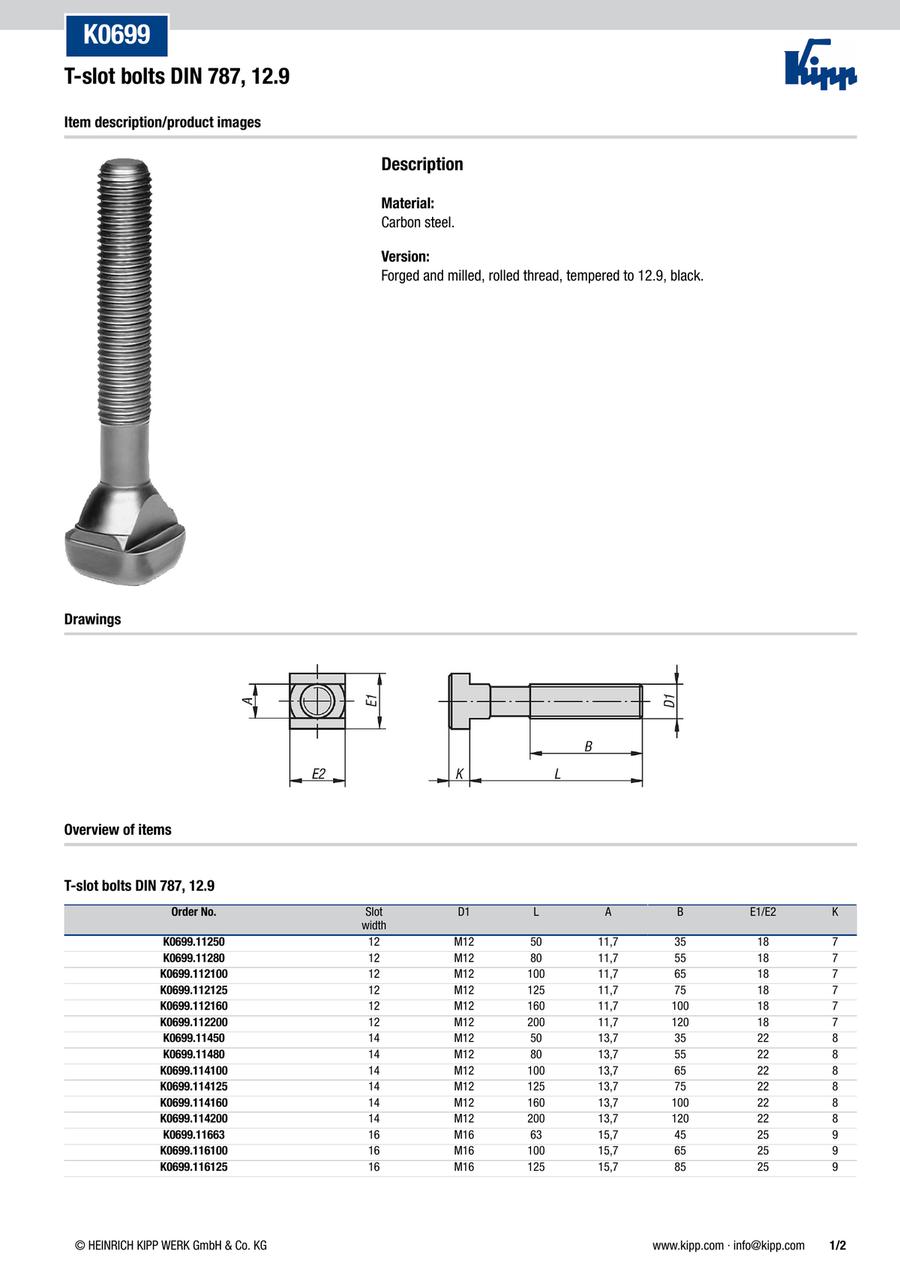

Catalog (2-page spread)
