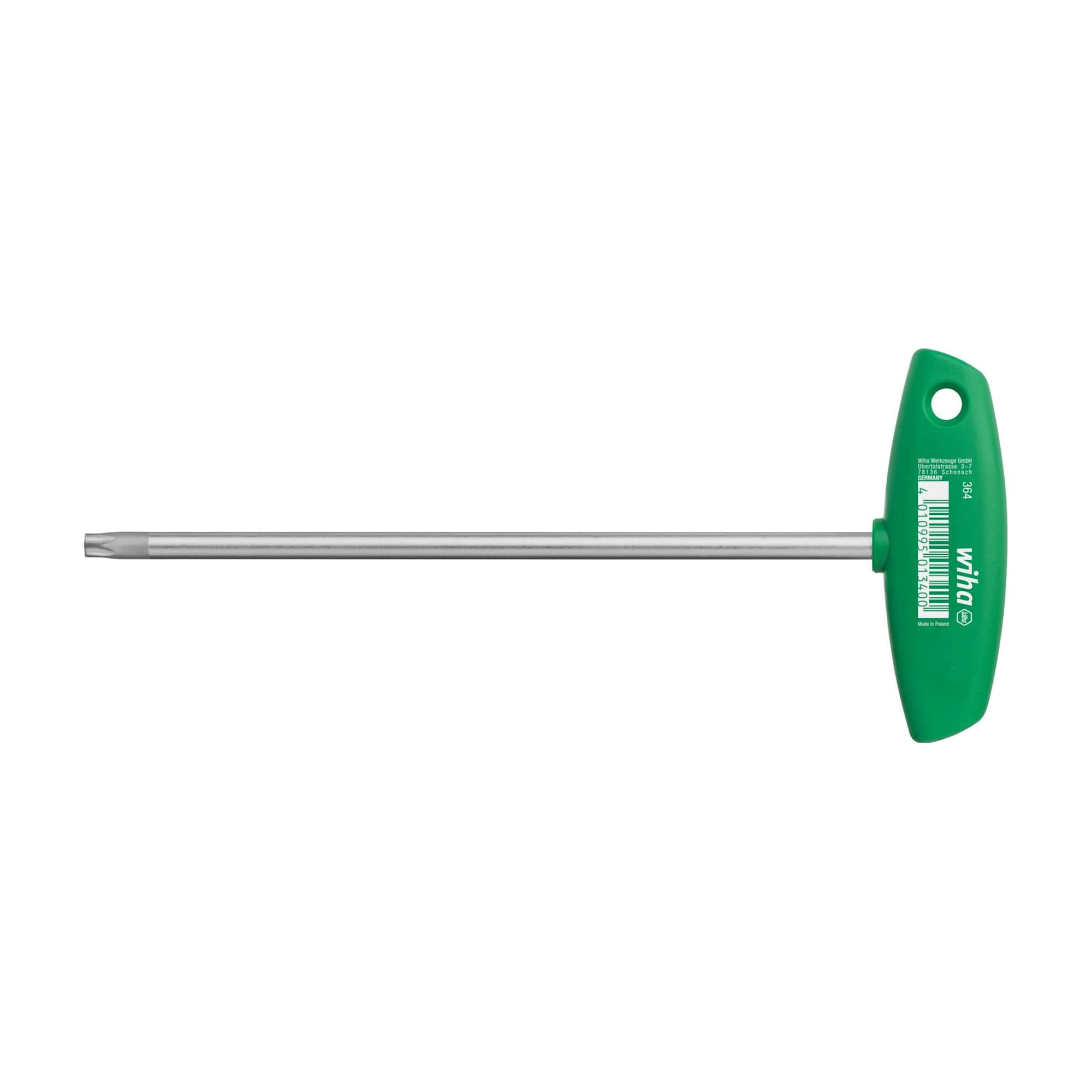

L-Key with T-handle, TORX®, Matt Chrome-Plated
Click on this image to zoom in.
Click on this image to zoom in.
Application: For high torque transfer with minimal effort.
Extra: ChromTop® blade tip for the highest accuracy.
Handle: Wiha Classic T-handle.
Blade: Chrome-vanadium steel, through hardened, chrome-plated.
For applications in mechanics
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 01328 |
| 01329 |
| 01330 |
| 01331 |
| 01332 |
| 01333 |
| 01334 |
| 01335 |
| 01336 |
| 01337 |
| 01338 |
| 01339 |
| 01341 |
| 01343 |
| 01345 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall length (mm) | Handle diameter (mm) | Handle width (T-handle) (mm) | Round blade diameter (mm) | TORX® 1 | Length T-handle blade | |
|---|---|---|---|---|---|---|---|---|---|---|---|
7.19 € | 1 | 5 Days | 126 | 26 | 80 | 4 | T9 | 100 | |||
7.39 € | 1 | 5 Days | 126 | 26 | 80 | 4 | T10 | 100 | |||
7.48 € | 1 | 5 Days | 126 | 26 | 80 | 4 | T15 | 100 | |||
9.51 € | 1 | 5 Days | 226 | 26 | 80 | 5.5 | T15 | 200 | |||
8.16 € | 1 | 5 Days | 132 | 32 | 100 | 4 | T20 | 100 | |||
10.47 € | 1 | 5 Days | 232 | 32 | 100 | 5.5 | T20 | 200 | |||
8.35 € | 1 | 5 Days | 132 | 32 | 100 | 4.5 | T25 | 100 | |||
10.84 € | 1 | 5 Days | 232 | 32 | 100 | 5.5 | T25 | 200 | |||
8.55 € | 1 | 5 Days | 132 | 32 | 100 | 5.5 | T27 | 100 | |||
11.13 € | 1 | 5 Days | 232 | 32 | 100 | 5.5 | T27 | 200 | |||
8.73 € | 1 | 5 Days | 132 | 32 | 100 | 6 | T30 | 100 | |||
11.71 € | 1 | 5 Days | 232 | 32 | 100 | 6 | T30 | 200 | |||
12.76 € | 1 | 5 Days | 232 | 32 | 100 | 7 | T40 | 200 | |||
16.51 € | 1 | 5 Days | 288 | 38 | 120 | 8 | T45 | 250 | |||
18.91 € | 1 | 5 Days | 288 | 38 | 120 | 9 | T50 | 250 |
Loading...
Basic information
| ESD article | No | with battery | No | Self service - packing | No |
|---|
Configure
Basic Attributes
-
Overall length(mm)
-
Handle diameter(mm)
- 26
- 32
- 38
-
Handle width (T-handle)(mm)
- 80
- 100
- 120
-
Round blade diameter(mm)
-
TORX® 1
-
Length T-handle blade
- 100
- 200
- 250
-
Type
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
