Digital Blade Micrometer

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

422-230-30
422-231-30
422-232-30
422-233-30
422-260-30
422-261-30
422-270-30
422-271-30
422-330-30
422-331-30
422-332-30
422-333-30
422-360-30
422-361-30
422-370-30
422-371-30

Mass

(g)

Anvil / Spindle

Digital Step

(inch)

Inch-Metric

Max. Permissible Error J MPE

(µm)

Max. Permissible Error J MPE

(inch)

Parallelism

(inch)

Range

(inch)

Range

(mm)

Parallelism

(μm)

Minimum order quantity

Data sheet	365	Type A, hardened steel t=0.75 mm	-	Metric	±3	-	-	-	0-25	3	1 pieces
Data sheet	565	Type A, hardened steel t=0.75 mm	-	Metric	±3	-	-	-	25-50	3	1 pieces
Data sheet	465	Type A, hardened steel t=0.75 mm	-	Metric	±3	-	-	-	50-75	3	1 pieces
Data sheet	580	Type A, hardened steel t=0.75 mm	-	Metric	±4	-	-	-	75-100	4	1 pieces
Data sheet	365	Type B, hardened steel, t=0.4 mm	-	Metric	±3	-	-	-	0-25	3	1 pieces
Data sheet	565	Type B, hardened steel, t=0.4 mm	-	Metric	±3	-	-	-	25-50	3	1 pieces
Data sheet	365	Type C, carbide t=0.75 mm	-	Metric	±3	-	-	-	0-25	3	1 pieces
Data sheet	365	Type D, carbide t=0.4 mm	-	Metric	±3	-	-	-	0-25	3	1 pieces
Data sheet	365	Type A, hardened steel t=0.75 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	0 - 1	-	-	1 pieces
Data sheet	565	Type A, hardened steel t=0.75 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	1-2	-	-	1 pieces
Data sheet	465	Type A, hardened steel t=0.75 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	2-3	-	-	1 pieces
Data sheet	580	Type A, hardened steel t=0.75 mm	0.00005	Inch/Metric	-	±0.0002	0.0002	3-4	-	-	1 pieces
Data sheet	365	Type B, hardened steel, t=4 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	0 - 1	-	-	1 pieces
Data sheet	565	Type B, hardened steel, t=4 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	1-2	-	-	1 pieces
Data sheet	365	Type C, carbide t=0.75 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	0 - 1	-	-	1 pieces
Data sheet	365	Type D, carbide t=0.4 mm	0.00005	Inch/Metric	-	±0.00015	0.00015	0 - 1	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1,151.00 € ( 1,369.69 € )	5 working days
1,208.00 € ( 1,437.52 € )	5 working days
1,257.00 € ( 1,495.83 € )	5 working days
1,310.00 € ( 1,558.90 € )	5 working days
1,200.00 € ( 1,428.00 € )	5 working days
1,254.00 € ( 1,492.26 € )	5 working days
1,194.00 € ( 1,420.86 € )	5 working days
1,194.00 € ( 1,420.86 € )	5 working days
1,151.00 € ( 1,369.69 € )	5 working days
1,208.00 € ( 1,437.52 € )	5 working days
1,257.00 € ( 1,495.83 € )	60 working days
1,310.00 € ( 1,558.90 € )	5 working days
1,200.00 € ( 1,428.00 € )	5 working days
1,254.00 € ( 1,492.26 € )	5 working days
1,194.00 € ( 1,420.86 € )	5 working days
1,194.00 € ( 1,420.86 € )	5 working days

More Information

Basic information

Basic information

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
- Non-rotating spindle

Catalog

Products homepage

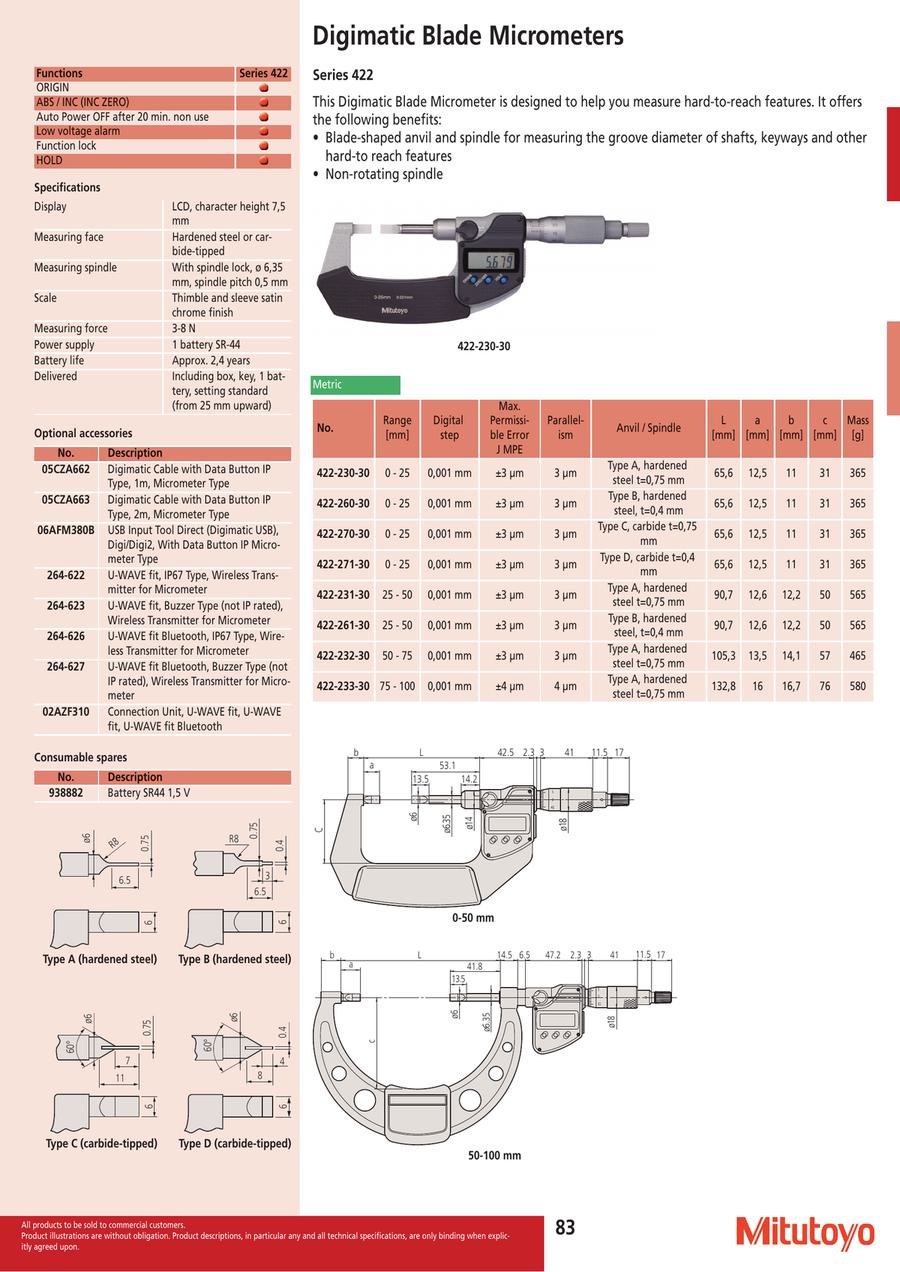

Catalog (2-page spread)
