MITUTOYO

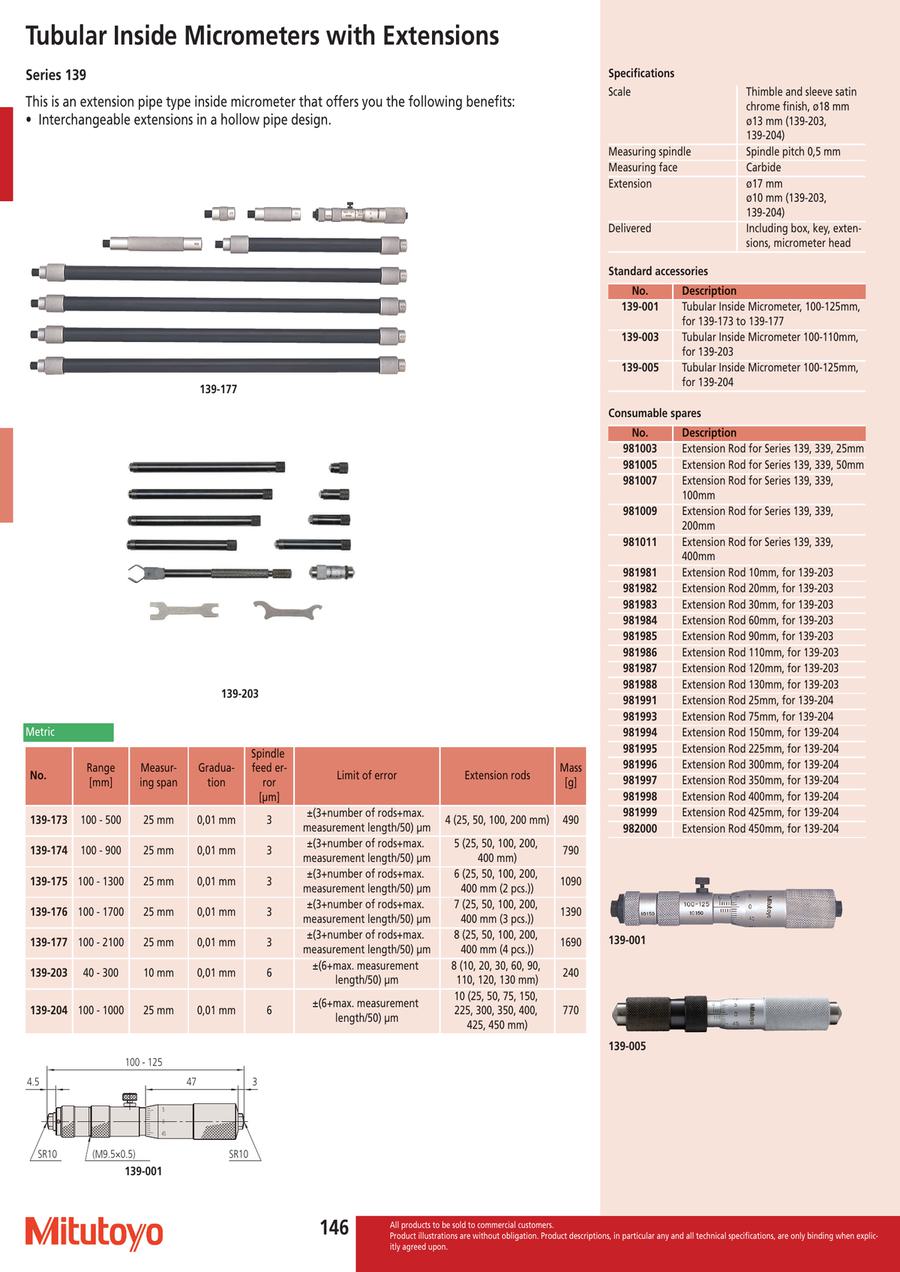

Tubular Inside Micrometer with Extension, Metric

Tubular Inside Micrometer with Extension, Metric

Part number:

Still undefined. 11 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    139-173
    139-174
    139-175
    139-176
    139-177
    139-203
    139-204
    140-157
    140-158
    140-159
    140-160
    Related

    Mass

    (g)

    Extension Rods

    (mm)

    Limit of Error

    Measuring Method

    Measuring Span

    (mm)

    Range

    (mm)

    Scale

    Spindle Feed Error

    (μm)

    		Minimum order quantity

    Data sheet

    490
    4 (25, 50, 100, 200)
    ±(3+number of rods+max. measurement length/50) µm
    2-Point
    25
    100-500
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    3
    1 pieces

    Data sheet

    790
    5 (25, 50, 100, 200, 400)
    ±(3+number of rods+max. measurement length/50) µm
    2-Point
    25
    100-900
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    3
    1 pieces

    Data sheet

    1,090
    6 (25, 50, 100, 200, 400 (2 pcs.))
    ±(3+number of rods+max. measurement length/50) µm
    2-Point
    25
    100-1,300
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    3
    1 pieces

    Data sheet

    1,390
    7 (25, 50, 100, 200, 400 (3 pcs.))
    ±(3+number of rods+max. measurement length/50) µm
    2-Point
    25
    100-1,700
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    3
    1 pieces

    Data sheet

    1,690
    8 (25, 50, 100, 200, 400 (4 pcs.))
    ±(3+number of rods+max. measurement length/50) µm
    2-Point
    25
    100-2,100
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    3
    1 pieces

    Data sheet

    240
    8 (10, 20, 30, 60, 90, 110, 120, 130)
    ±(6+max. measurement length/50) µm
    2-Point
    10
    40-300
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    6
    1 pieces

    Data sheet

    770
    10 (25, 50, 75, 150, 225, 300, 350, 400, 425, 450)
    ±(6+max. measurement length/50) µm
    2-Point
    25
    100-1,000
    Thimble and sleeve satin chrome finish, ø18 mmø13 mm (139-203, 139-204)
    6
    1 pieces

    Data sheet

    3,700
    5 (50, 100 (2 pcs.) 200, 500)
    ±(7+number of rods+max. measurement length/50) µm
    -
    50
    1,000-2,000
    Thimble and sleeve satin chrome finish, ø21 mm
    6
    1 pieces

    Data sheet

    5,200
    6 (50, 100 (2 pcs.), 200, 500, 1,000)
    ±(7+number of rods+max. measurement length/50) µm
    -
    50
    1,000-3,000
    Thimble and sleeve satin chrome finish, ø21 mm
    6
    1 pieces

    Data sheet

    6,700
    7 (50, 100 (2 pcs.), 200, 500, 1,000 (2 pcs.))
    ±(7+number of rods+max. measurement length/50) µm
    -
    50
    1,000-4,000
    Thimble and sleeve satin chrome finish, ø21 mm
    6
    1 pieces

    Data sheet

    8,260
    8 (50, 100 (2 pcs.) 200, 500, 1,000 (3 pcs.))
    ±(7+number of rods+max. measurement length/50) µm
    -
    50
    1,000-5,000
    Thimble and sleeve satin chrome finish, ø21 mm
    6
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    760.00 €
    ( 904.40 € )
    5 working days
    909.00 €
    ( 1,081.71 € )
    60 working days
    1,091.00 €
    ( 1,298.29 € )
    60 working days
    1,278.00 €
    ( 1,520.82 € )
    60 working days
    1,420.00 €
    ( 1,689.80 € )
    60 working days
    414.00 €
    ( 492.66 € )
    60 working days
    566.00 €
    ( 673.54 € )
    5 working days
    3,487.00 €
    ( 4,149.53 € )
    5 working days
    3,868.00 €
    ( 4,602.92 € )
    5 working days
    5,191.00 €
    ( 6,177.29 € )
    5 working days
    6,414.00 €
    ( 7,632.66 € )
    5 working days
  • 1

    • More Information

    Basic information

    A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
