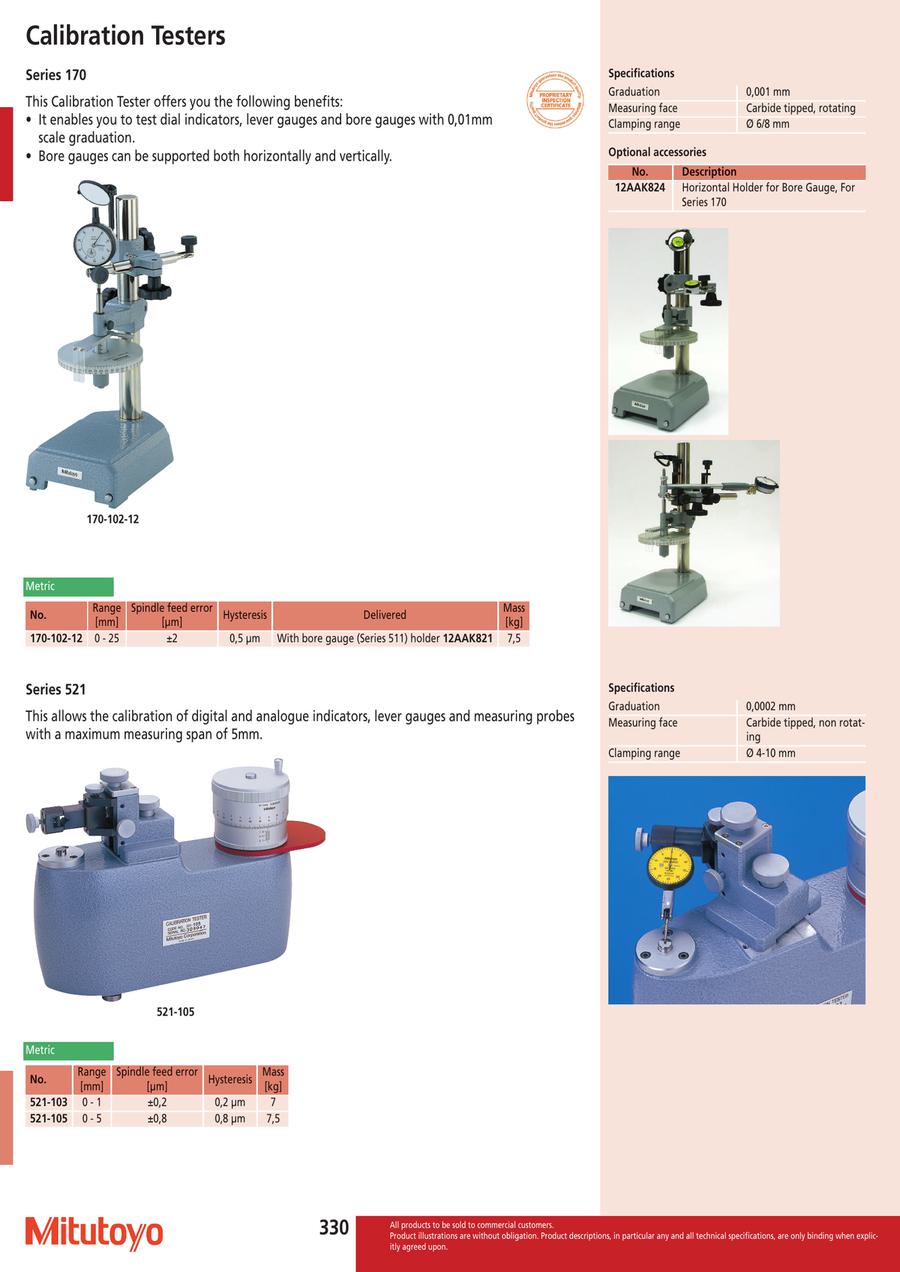

Dial Indicator Tester
This Calibration Tester offers you the following benefits:
It enables you to test dial indicators, lever gauges and bore gauges with 0.01mm scale graduation.
Bore gauges can be supported both horizontally and vertically.
It enables you to test dial indicators, lever gauges and bore gauges with 0.01mm scale graduation.
Bore gauges can be supported both horizontally and vertically.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
170-102-12
Basic information
| Display Method | Dial | Column Ø | 30 | Effective Table Dimensions(mm) | 90 x 90 |
|---|---|---|---|---|---|
| Fine Adjustment(mm) | 1 | Mass(kg) | 5 | Max. Measurement Height(mm) | 90 |
| Perpendicularity Table-Stem Hole(mm) | 0.4/100 | Stem Hole Diameter | 9.53 mm (8 mm with bush) | Table Flatness(µm) | 1.3 |
This page is Dial Indicator Tester, part number 170-102-12.
You can find the detail information about specifications and dimensions on part number 170-102-12.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
