Configure

Material
- Carbide
- Steel
D(mm)
- φ3 Ball
L(mm)
- 43.5
Additional Spec
Carbide Stylus Tip ø2 mm No.
- 103007
Dial Reading
- 0-20-0
Digital / Analog
- Analog
Error of Indication One Revolution(inch)
- ±0.001
Functions
Graduation(inch)
- 0.001
Inch-Metric
- Inch
- Metric
R MPE (Repeatability)(inch)
- ±0.0004
Range(inch)
- 0.04
Stem(mm)
- 9.52
Diameter(mm)
- 1
- 1.5
Length(mm)
- 20
- 25
- 35
- 40
Length(inch)
- 0.6
- 1
- 1 1/2
- 2
- 5/8
Type
Est. shipping days
- All
- Within 5 working days
- Within 60 working days

Dial Indicator Depth Gauge

Dial Indicator Depth Gauge

Catalog

Part number:

Still undefined. 12 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Related

Material

D

(mm)

L

(mm)

Additional Spec

Carbide Stylus Tip ø2 mm No.

Dial Reading

Digital / Analog

Error of Indication One Revolution

(inch)

Functions

Graduation

(inch)

Inch-Metric

R MPE (Repeatability)

(inch)

Range

(inch)

Stem

(mm)

Diameter

(mm)

Length

(mm)

Length

(inch)

Mass

(g)

Stroke

(mm)

Minimum order quantity

Data sheet	Steel	-	-	Radius=0.016 inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	0.6	-	10	1 pieces
Data sheet	Steel	-	-	Radius=0.016 inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	1	-	10	1 pieces
Data sheet	Steel	-	-	Radius=0.016 inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	1 1/2	-	10	1 pieces
Data sheet	Steel	-	-	Radius=0.016 inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	2	-	30	1 pieces
Data sheet	Steel	-	-	Radius=0.4 mm	-	-	-	-	A: M2.5 x 0.45	-	Metric	-	-	-	-	25	-	-	30	1 pieces
Data sheet	-	-	-	-	103007	0-20-0	Analog	±0.001	Basic set with 9.52 mm stem	0.001	Inch	±0.0004	0.04	9.52	-	-	-	50	-	1 pieces
Data sheet	Steel	-	-	Radius=5/32 inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	5/8	-	-	1 pieces
Data sheet	Carbide	-	-	-	-	-	-	-	A: M2.5 x 0.45	-	Metric	-	-	-	1.5	20	-	-	10	1 pieces
Data sheet	Steel	-	-	Radius=0.4 mm	-	-	-	-	A: M2.5 x 0.45	-	Metric	-	-	-	-	35	-	-	10	1 pieces
Data sheet	Carbide	-	-	-	-	-	-	-	A: M2.5 x 0.45	-	Metric	-	-	-	1	40	-	-	10	1 pieces
Data sheet	Steel	φ3 Ball	43.5	Metric	-	-	-	-	A: M2.5 x 0.45	-	Metric	-	-	-	-	-	-	-	10	1 pieces
Data sheet	Steel	-	-	Inch	-	-	-	-	A: 4-48UNF	-	Inch	-	-	-	-	-	-	-	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

255.00 € ( 303.45 € )	60 working days
241.00 € ( 286.79 € )	5 working days
255.00 € ( 303.45 € )	5 working days
331.00 € ( 393.89 € )	5 working days
344.00 € ( 409.36 € )	5 working days
221.00 € ( 262.99 € )	5 working days
331.00 € ( 393.89 € )	60 working days
318.00 € ( 378.42 € )	5 working days
368.00 € ( 437.92 € )	5 working days
166.00 € ( 197.54 € )	5 working days
177.00 € ( 210.63 € )	60 working days
186.00 € ( 221.34 € )	5 working days

More Information

Basic information

Basic information

This rectangular base dial indicator depth gauge offers you the following benefits:
It has a hardened, precision ground and micro-lapped reference face on its base.

Catalog

Products homepage

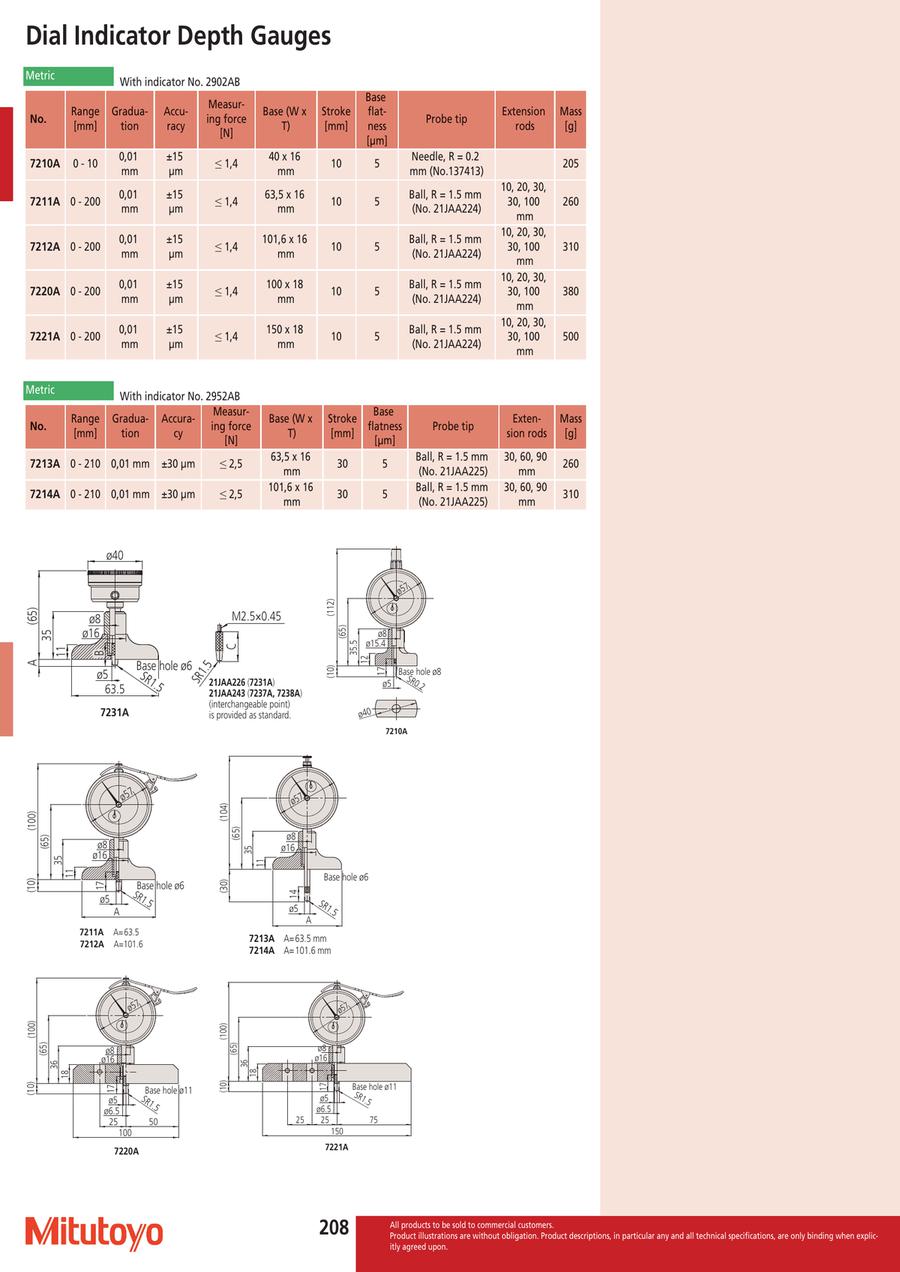

Catalog (2-page spread)
