Configure

Magnet width(mm)
- 36
- 58.5
- 59
- 73
Magnet Depth(mm)
- 30
- 50
Magnet Height(mm)
- 35
- 36
- 55
Base Size (LxWxH)(mm)
Clamping Force (Vertical)(N)
- 300
- 600
- 750
- 900
Fine Adjustment
- with fine feed wheel +-4°
- with fine feed wheel 1.3 mm/rotation
Fine Adjustment(degree)
- ±4
Mass(kg)
- 0.45
- 0.59
- 1.55
- 1.6
- 1.75
- 1.85
- 2.1
Stem Hole Diameter
- 6 mm, 8 mm, 9.53 mm, dovetail
- 8 mm, dovetail
Thread Arm/Base
Total Height(mm)
- 214
- 220
- 310
- 345
- 397
- 425
- 517
Working Radius(mm)
- 130
- 154
- 200
- 250
- 280
- 346
- 400
Type
Est. shipping days
- All
- Within 5 working days
- Within 60 working days

Jointed Magnetic Stand

Name: Jointed Magnetic Stand from MITUTOYO | MISUMI
Brand: MITUTOYO
SKU: 223304415521
Availability: Instock

Part number:

Still undefined. 7 possible part numbers found.

Part number list

Number of items

Part number

Magnet width

(mm)

Magnet Depth

(mm)

Magnet Height

(mm)

Base Size (LxWxH)

(mm)

Clamping Force (Vertical)

(N)

Fine Adjustment

(degree)

Mass

(kg)

Stem Hole Diameter

Thread Arm/Base

Total Height

(mm)

Working Radius

(mm)

Minimum order quantity

Data sheet	58.5	50	55	58.5 x 50 x 55	750	with fine feed wheel 1.3 mm/rotation	-	1.55	8 mm, dovetail	M8 x 1.25	310	200	1 pieces
Data sheet	58.5	50	55	58.5 x 50 x 55	750	with fine feed wheel 1.3 mm/rotation	-	1.85	8 mm, dovetail	M8 x 1.25	397	280	1 pieces
Data sheet	73	50	55	73 x 50 x 55	900	with fine feed wheel 1.3 mm/rotation	-	2.1	8 mm, dovetail	M8 x 1.25	517	400	1 pieces
Data sheet	36	30	35	36 x 30 x 35	300	with fine feed wheel 1.3 mm/rotation	-	0.45	8 mm, dovetail	M6 x 1	220	130	1 pieces
Data sheet	36	30	36	36 x 30 x 36	300	with fine feed wheel +-4°	±4	0.59	6 mm, 8 mm, 9.53 mm, dovetail	M5 x 0.8	214	154	1 pieces
Data sheet	59	50	55	59 x 50 x 55	600	with fine feed wheel +-4°	±4	1.6	6 mm, 8 mm, 9.53 mm, dovetail	M8 x 1.25	345	250	1 pieces
Data sheet	59	50	55	59 x 50 x 55	600	with fine feed wheel +-4°	±4	1.75	6 mm, 8 mm, 9.53 mm, dovetail	M8 x 1.25	425	346	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

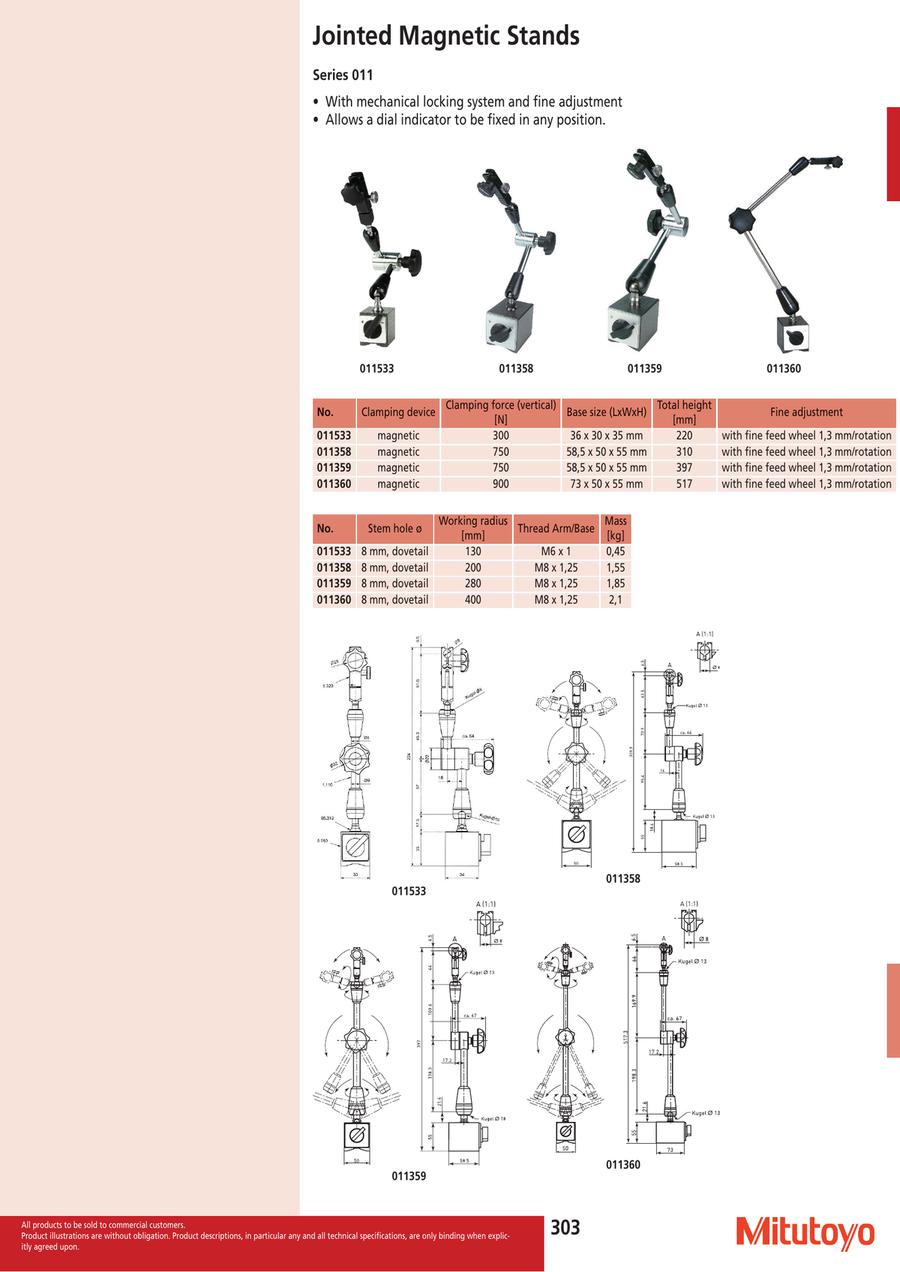

With mechanical locking systemallows indicator to be fixed in any position the articulated arm.
