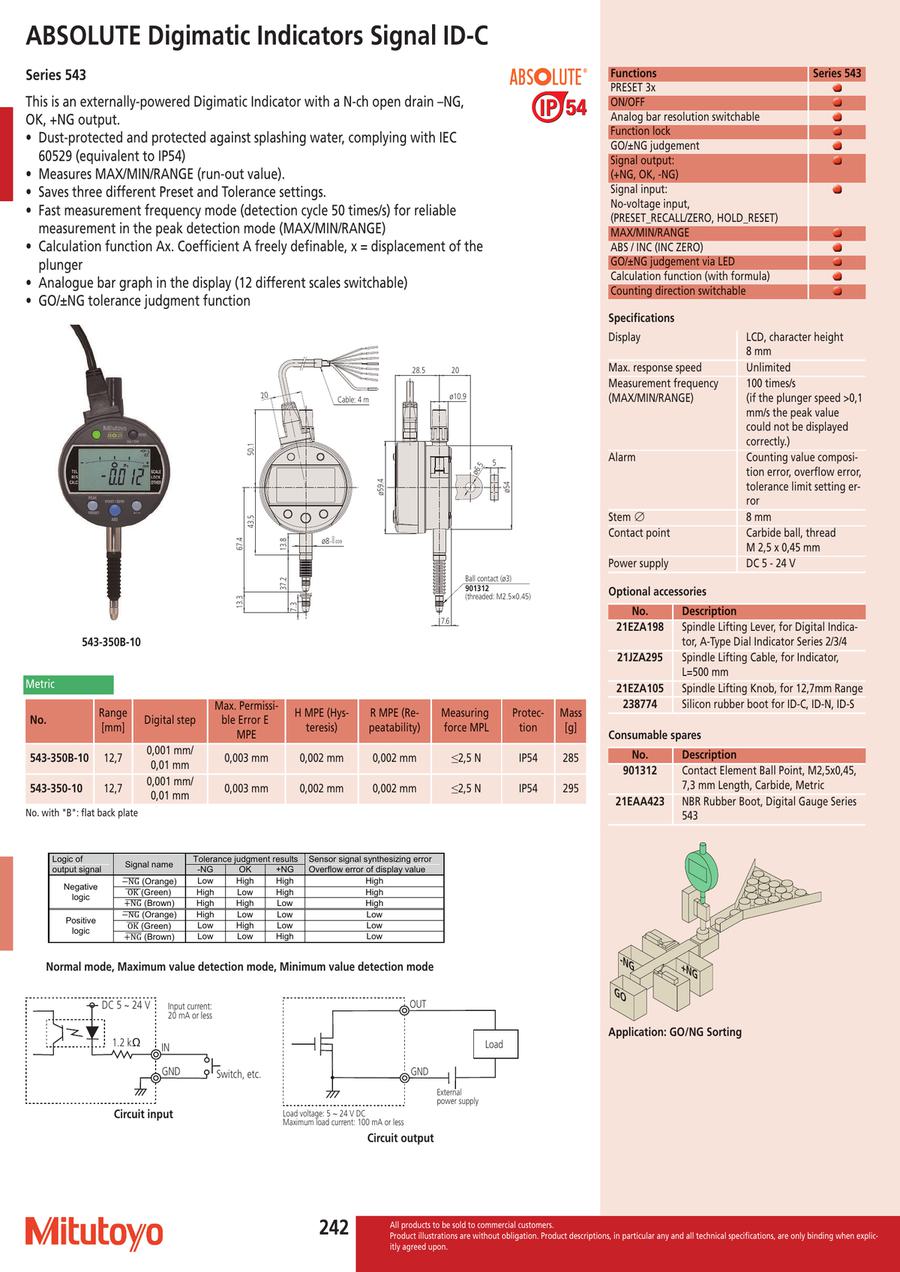

Digital Indicator, Signal ID-C
Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54) Measures MAX/MIN/RANGE (run-out value).
Saves three different Preset and Tolerance settings.
Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE) Calculation function Ax. Coefficient A freely definable, x = displacement of the plungerAnalogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgment function
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 543-350-10 |
| 543-350B-10 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Power supply | Additional Spec | Alarm | Digimatic Data Output | Measurement Frequency (MAX/MIN/Range) | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
871.00 € | 1 | 5 Days | 1 battery CR2032 | Lug Back Plate | Low voltage, ABS composition error, overflow error, setting error | Yes | Standard mode: 100 times/s (plunger speed max. 0.1mm/s for peak measurement) | 295 | |||
871.00 € | 1 | 5 Days | DC 5.0-24.0 V | Flat Back Plate | Counting value composition error, overflow error, tolerance limit setting error | - | 100 times/s (if the plunger speed >0.1 mm/s the peak value could not be displayed correctly.) | 285 |
Loading...
Basic information
| Product Type | Data equipment related goods | ABS / INC (INC ZERO) | Yes | Analog Bar Resolution Switchable | Yes |
|---|---|---|---|---|---|
| Calculation Function (with formula) | Yes | Contact Point | Carbide ball, thread: M2.5x0.45 | Counting Direction Switchable | Yes |
| Digital Scale | Electrostatic capacitance type absolute linear encoder | Digital Step(mm) | 0.001 / 0.01 | Digital/Analog | Digital |
| Display | LCD, character height 8 mm | Function lock | Yes | GO/±NG judgement | Yes |
| GO/±NG judgement via LED | Yes | H MPE (Hysteresis)(mm) | 0.002 | Inch/Metric Switchable | No |
| Inch-Metric | Metric | Max. Permissible ErrorE MPE (Total Range)(mm) | 0.003 | Max. Response Speed | Unlimited |
| Measuring Force MPL(N) | ≤2.5 | ON/OFF | Yes | PRESET 3x | Yes |
| Protection | IP54 | R MPE (Repeatability)(mm) | 0.002 | Range(mm) | 12.7 |
| Signal Input: No-voltage Input, (PRESET_RECALL/ZERO, Hold_RESET) | Yes | Signal Output:(+NG, OK, -NG) | Yes | Type | EN ISO Standard |
| Stem Diameter(mm) | 8 |
Configure
Basic Attributes
-
Power supply
-
Additional Spec
- Flat Back Plate
- Lug Back Plate
-
Alarm
- Counting value composition error, overflow error, tolerance limit setting error
- Low voltage, ABS composition error, overflow error, setting error
-
Digimatic Data Output
- Yes
-
Measurement Frequency (MAX/MIN/Range)
- 100 times/s (if the plunger speed >0.1 mm/s the peak value could not be displayed correctly.)
- Standard mode: 100 times/s (plunger speed max. 0.1mm/s for peak measurement)
-
