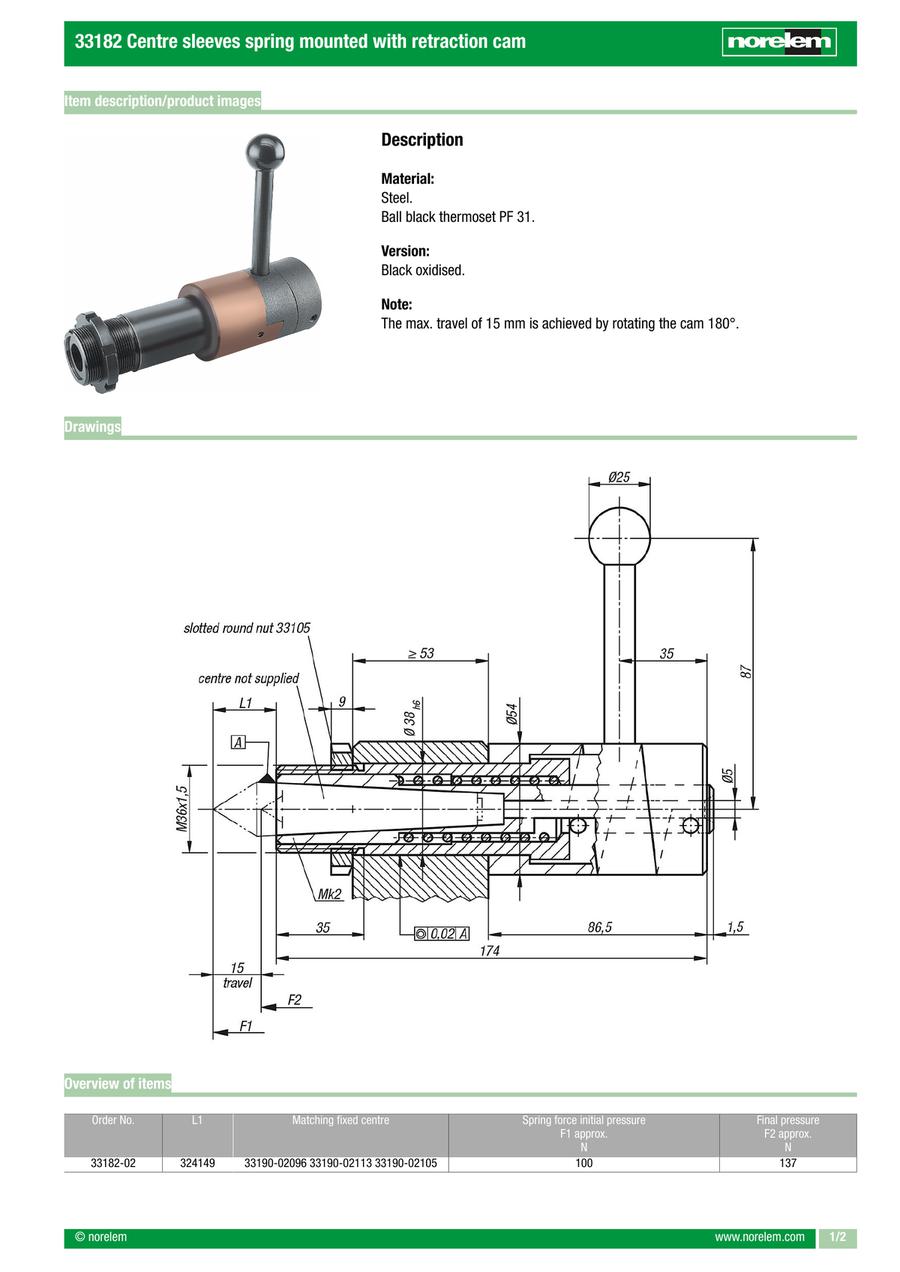

Centre sleeves spring mounted with retraction cam (33182)
· Suitable for measuring fixtures 33140
· Max. stroke of 15 mm
· Max. stroke of 15 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
33182-02
Basic information
| Application | Parts | Main material | Steel | Final pressure F2 approx.(N) | 137 |
|---|---|---|---|---|---|
| Item | Sprung centre sleeve | L1(mm) | 324149 | Spring force initial pressure F1 approx.(N) | 100 |
| Version 1 | With lifting cam | RoHS | Yes | Weight (ERP)(kg) | 1.9850 |
This page is Centre sleeves spring mounted with retraction cam (33182), part number 33182-02.
You can find the detail information about specifications and dimensions on part number 33182-02.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
