Observation Port Set / Standard Type

Observation Port Set / Standard Type

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Outline drawing and specifications table

Drawing

● Flange (Compact Type)
● O-ring
● Flange Cover (Compact Type)
● Rubber Gasket
* Bolts come with Nuts, Spring Washers and Flat Washers. (4 pcs. each)

Product Specifications

Part NumberABCDEF
[M]FlangeO-ringRound Glass PlateRubber GasketFlange CoverBolt
Standard TypeGLSETNEN 1.4301 Equiv.Nitrile RubberReinforced GlassNitrile RubberEN 1.4301 Equiv.EN 1.4301 Equiv.
(Nuts, Washers)
4 Sets
Heat Resisting Type
(Glass tolerable up to 230°C)		GLSETFFluorineHeat-resistant GlassFluorine
[ ! ] Pressure resistance data is not available.
[ NG ] Glass cannot be replaced.

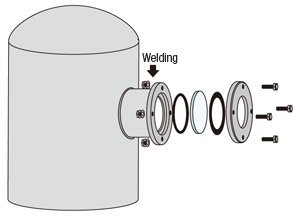

■About installation
use as welded to a pipe.
　

Specification Table

Part Number
GLSETF65
Part NumberABCDEF
TypeNo.FlangeO-ringGlassRubber GasketFlange CoverBolt
JISWdoD−V−T
Standard Type
GLSETN		50GLFBE50V40439.5GLMK－50－350－35－1GLFCE50M6－30
65GLFBE65V5554.5GLMK－65－365－50－1GLFCE65M6－30
95GLFBE95V8584.0GLMK－95－595－80－1GLFCE95M6－30
130GLFBE130V120119.0GLMK－130－8130－115－1GLFCE130M8－40
Heat Resisting Type
GLSETF		50GLFBE50V4039.5GLMH－50－3.350－35－1GLFCE50M6－30
65GLFBE65V5554.5GLMH－65－3.365－50－1GLFCE65M6－30
95GLFBE95V8584.0GLMH－95－595－80－1GLFCE95M6－30
130GLFBE130V120119.0GLMH－130－10130－115－1GLFCE130AM8－40

Part number list

Number of items
  • 1
    • Part number
    GLSETF50
    GLSETF65
    GLSETF95
    GLSETF130
    GLSETN50
    GLSETN65
    GLSETN95
    GLSETN130

    Specifications

    Applicable Glass Nominal Dia.

    (φ)

    		RoHS?Minimum order quantity
    Heat Resistant Type
    50
    10
    1 pieces
    Heat Resistant Type
    65
    10
    1 pieces
    Heat Resistant Type
    95
    10
    1 pieces
    Heat Resistant Type
    130
    10
    1 pieces
    Standard Type
    50
    10
    1 pieces
    Standard Type
    65
    10
    1 pieces
    Standard Type
    95
    10
    1 pieces
    Standard Type
    130
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    153.99 €
    ( 183.25 € )
    7 working days
    170.31 €
    ( 202.67 € )
    7 working days
    227.12 €
    ( 270.27 € )
    7 working days
    372.99 €
    ( 443.86 € )
    7 working days
    153.09 €
    ( 182.18 € )
    7 working days
    163.97 €
    ( 195.12 € )
    7 working days
    212.93 €
    ( 253.39 € )
    7 working days
    316.31 €
    ( 376.41 € )
    7 working days
  • 1

    • More Information

    Basic information

    [Features] A round sight glass is completed with 1 set of this product. [Set of product)
