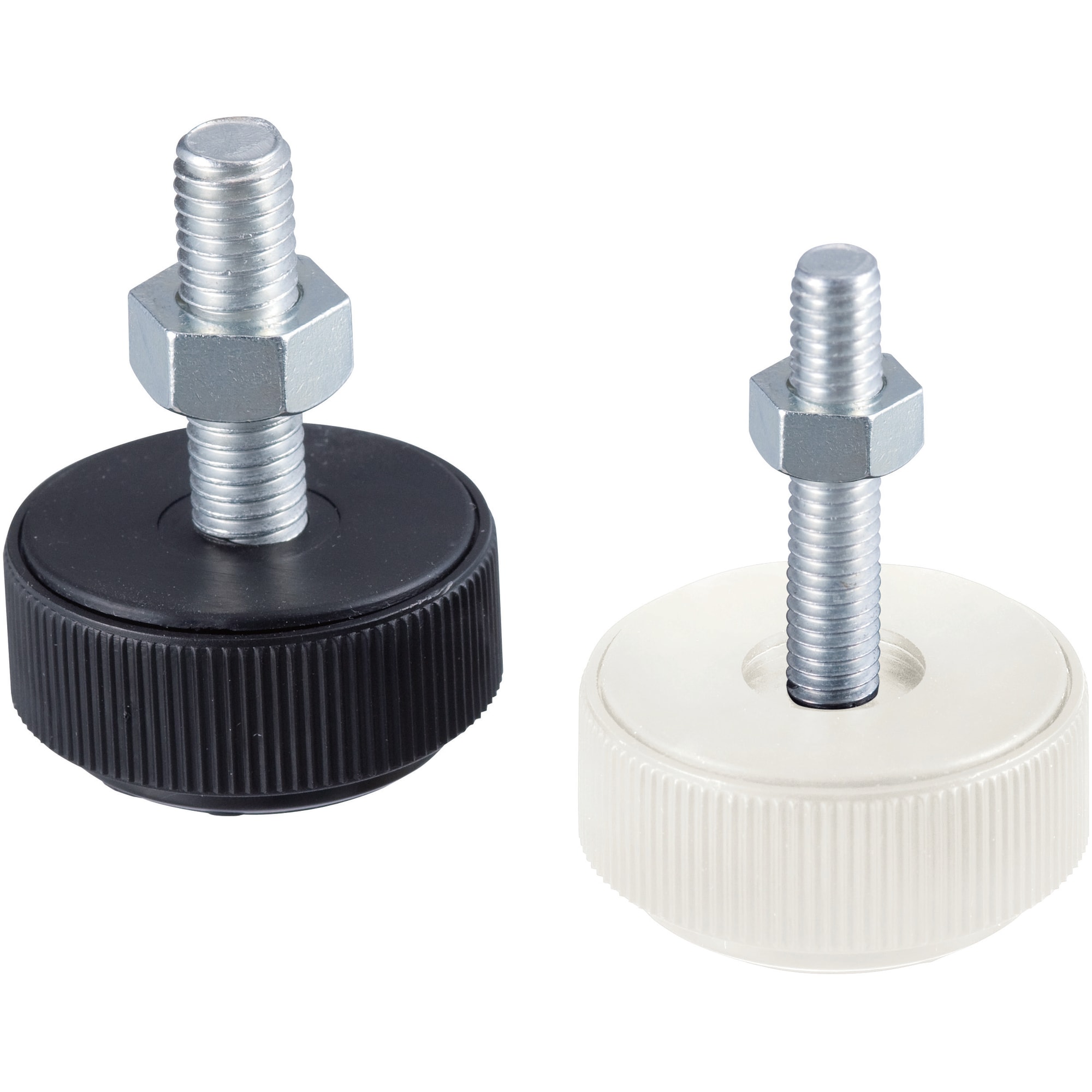

    Tabletop Leveling Mounts / Grip Type

    Tabletop Leveling Mounts / Grip Type

    Mouse over image to enlarge

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

    NFBG
    [M] Material[S] Surface Treatment
    Main BodyBottomBoltBolt
    PolyacetalElastomerJIS−SWCHTrivalent Chromate

    Specification Table

    Part Number—M—A—Body Color
    NFBG32—6—25—W
    Part NumberM
    (Coarse)    		ABody ColorEdtℓAllowable Load
    (kN)    		Mass
    (g)
    TypeD
    NFBG32625B (Black)
    W (White)    		16.527450.818
    8306.529
    4083035135
    10327.851

    Part number list

    Number of items
  • 1
    • Part number
    NFBG32-6-25-B
    NFBG32-6-25-W
    NFBG32-8-30-B
    NFBG32-8-30-W
    NFBG40-8-30-B
    NFBG40-8-30-W
    NFBG40-10-32-B
    NFBG40-10-32-W

    Width D

    (mm)

    Allowable Load (Details)

    (kN)

    Screw Length A

    (mm)

    Thread Nominal M

    (mm)

    Body Color

    		RoHS?Minimum order quantity
    32
    0.8
    25
    6
    B (Black)
    10
    1 pieces
    32
    0.8
    25
    6
    W (White)
    10
    1 pieces
    32
    0.8
    30
    8
    B (Black)
    10
    1 pieces
    32
    0.8
    30
    8
    W (White)
    10
    1 pieces
    40
    1
    30
    8
    B (Black)
    10
    1 pieces
    40
    1
    30
    8
    W (White)
    10
    1 pieces
    40
    1
    32
    10
    B (Black)
    10
    1 pieces
    40
    1
    32
    10
    W (White)
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.77 €
    ( 4.49 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.77 €
    ( 4.49 € )
    5 working days
    3.82 €
    ( 4.55 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.82 €
    ( 4.55 € )
    5 working days
    4.28 €
    ( 5.09 € )
    5 working days
    4.28 €
    ( 5.09 € )
    5 working days
    4.42 €
    ( 5.26 € )
    Stock item: 1 working dayAvailable for same-day shipping
    4.42 €
    ( 5.26 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Less slippery than conventional products, also available with swivel function.

    Outline and specifications

    Specifications/Overview

    Specification
    ■Tensile Test (Reference)
    NFBGExisting NFB
    6 kg2 kg
    Three times less slippery than the existing NFB type.
    ■ Testing Conditions
    ·Desk (Steel Top Plate)
    ·4 pcs. used for 9.5 kg load
    ·The force it starts slipping with is measured with a Push-Pull Gauge
