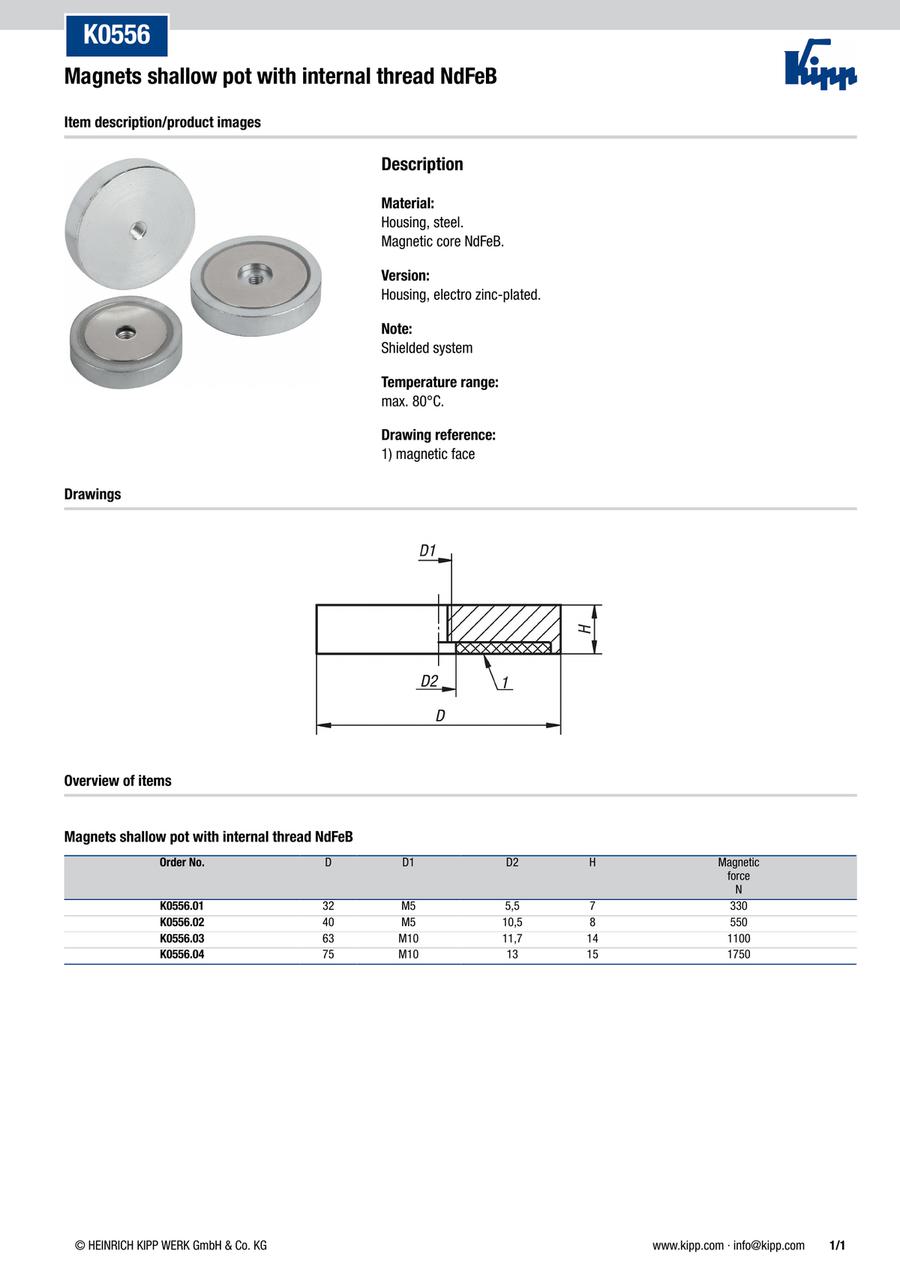

Magnets shallow pot with internal thread NdFeB (K0556)
· Application sectors: machine and plant construction
· Temperature range up to 80 °C
· Shielded system
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0556.01 |
| K0556.02 |
| K0556.03 |
| K0556.04 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Attraction Force (Specific) (N) | Outer Diameter (Ø) | D1=Thread | D2 (mm) | H=Height (mm) | |
|---|---|---|---|---|---|---|---|---|---|
14.64 € | 1 | 4 Days | 330 | 32 | M5 | 5.5 | 7 | ||
20.31 € | 1 | 4 Days | 550 | 40 | M5 | 10.5 | 8 | ||
80.56 € | 1 | 4 Days | 1100 | 63 | M10 | 11.7 | 14 | ||
112.53 € | 1 | 4 Days | 1750 | 75 | M10 | 13 | 15 |
Loading...
Basic information
| Magnet Type (Material) | Neodymium Magnet | Component material | Steel | Surface finish component | galvanised |
|---|---|---|---|---|---|
| Temperature max.(°C) | 80 |
Configure
Basic Attributes
-
Attraction Force (Specific)(N)
-
Outer Diameter(Ø)
-
D1=Thread
-
D2(mm)
-
H=Height(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
