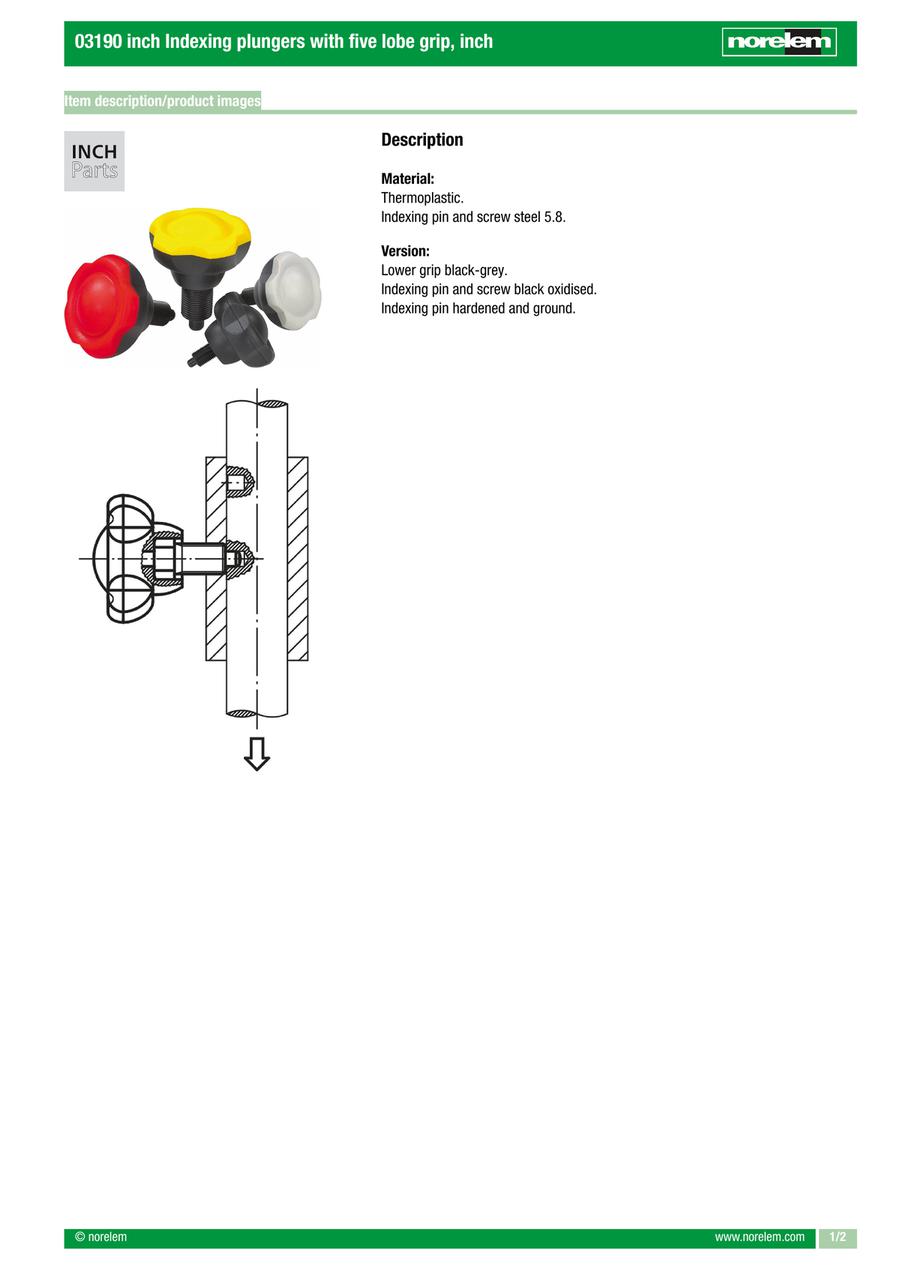

Indexing plunger with five lobe grip, thermoplastic, inch (03190)
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Various colours available
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Colour Cap | Size | D1=Thread | D2=Outside diameter | L=Length | D=pin diameter | Travel S | SW | L1=thread length | H1 | D4 | D3 | H2 | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.94 € | 1 | 4 Days | black grey RAL 7021 | 1 | 3/8-24 | 50 | 52.8 | 5 | 5 | 13 | 13 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0320 | ||
13.94 € | 1 | 4 Days | light grey RAL 7035 | 1 | 3/8-24 | 50 | 52.8 | 5 | 5 | 13 | 13 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0330 | ||
13.94 € | 1 | 4 Days | traffic red RAL 3020 | 1 | 3/8-24 | 50 | 52.8 | 5 | 5 | 13 | 13 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0351 | ||
13.94 € | 1 | 4 Days | colza yellow RAL 1021 | 1 | 3/8-24 | 50 | 52.8 | 5 | 5 | 13 | 13 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0351 | ||
15.44 € | 1 | 4 Days | black grey RAL 7021 | 2 | 1/2-13 | 50 | 57.8 | 6 | 6 | 14 | 17 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0426 | ||
15.44 € | 1 | 4 Days | light grey RAL 7035 | 2 | 1/2-13 | 50 | 57.8 | 6 | 6 | 14 | 17 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0426 | ||
15.44 € | 1 | 4 Days | traffic red RAL 3020 | 2 | 1/2-13 | 50 | 57.8 | 6 | 6 | 14 | 17 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0426 | ||
15.44 € | 1 | 4 Days | colza yellow RAL 1021 | 2 | 1/2-13 | 50 | 57.8 | 6 | 6 | 14 | 17 | 17.8 | 28.2 | 22.2 | 11.5 | 0.0452 | ||
19.86 € | 1 | 4 Days | black grey RAL 7021 | 3 | 5/8-11 | 63 | 74 | 8 | 8 | 19 | 22 | 22.5 | 35.5 | 28 | 14.5 | 0.1010 | ||
19.86 € | 1 | 4 Days | light grey RAL 7035 | 3 | 5/8-11 | 63 | 74 | 8 | 8 | 19 | 22 | 22.5 | 35.5 | 28 | 14.5 | 0.1010 | ||
19.86 € | 1 | 4 Days | traffic red RAL 3020 | 3 | 5/8-11 | 63 | 74 | 8 | 8 | 19 | 22 | 22.5 | 35.5 | 28 | 14.5 | 0.1010 | ||
19.86 € | 1 | 4 Days | colza yellow RAL 1021 | 3 | 5/8-11 | 63 | 74 | 8 | 8 | 19 | 22 | 22.5 | 35.5 | 28 | 14.5 | 0.0960 | ||
29.30 € | 1 | 4 Days | black grey RAL 7021 | 4 | 3/4-10 | 63 | 78 | 10 | 10 | 22 | 24 | 22.5 | 35.5 | 28 | 14.5 | 0.1360 | ||
29.30 € | 1 | 4 Days | light grey RAL 7035 | 4 | 3/4-10 | 63 | 78 | 10 | 10 | 22 | 24 | 22.5 | 35.5 | 28 | 14.5 | 0.1360 | ||
29.30 € | 1 | 4 Days | traffic red RAL 3020 | 4 | 3/4-10 | 63 | 78 | 10 | 10 | 22 | 24 | 22.5 | 35.5 | 28 | 14.5 | 0.1360 | ||
29.30 € | 1 | 4 Days | colza yellow RAL 1021 | 4 | 3/4-10 | 63 | 78 | 10 | 10 | 22 | 24 | 22.5 | 35.5 | 28 | 14.5 | 0.1291 |
Loading...
Basic information
| Main material | Thermoplastic | Main colour | black grey RAL 7021 | Component material | Steel |
|---|---|---|---|---|---|
| Surface finish component | hardened, ground and black oxidised | Locknut | without locknut | Version 2 | with five lobe grip |
| Version 1 | without locking slot | Item | Indexing Plunger | Product type | with five lobe grip |
| RoHS | yes |
