Toggle clamp horizontal steel, vertical foot (05130)

Toggle clamp horizontal steel, vertical foot (05130)

NORELEM

NORELEM

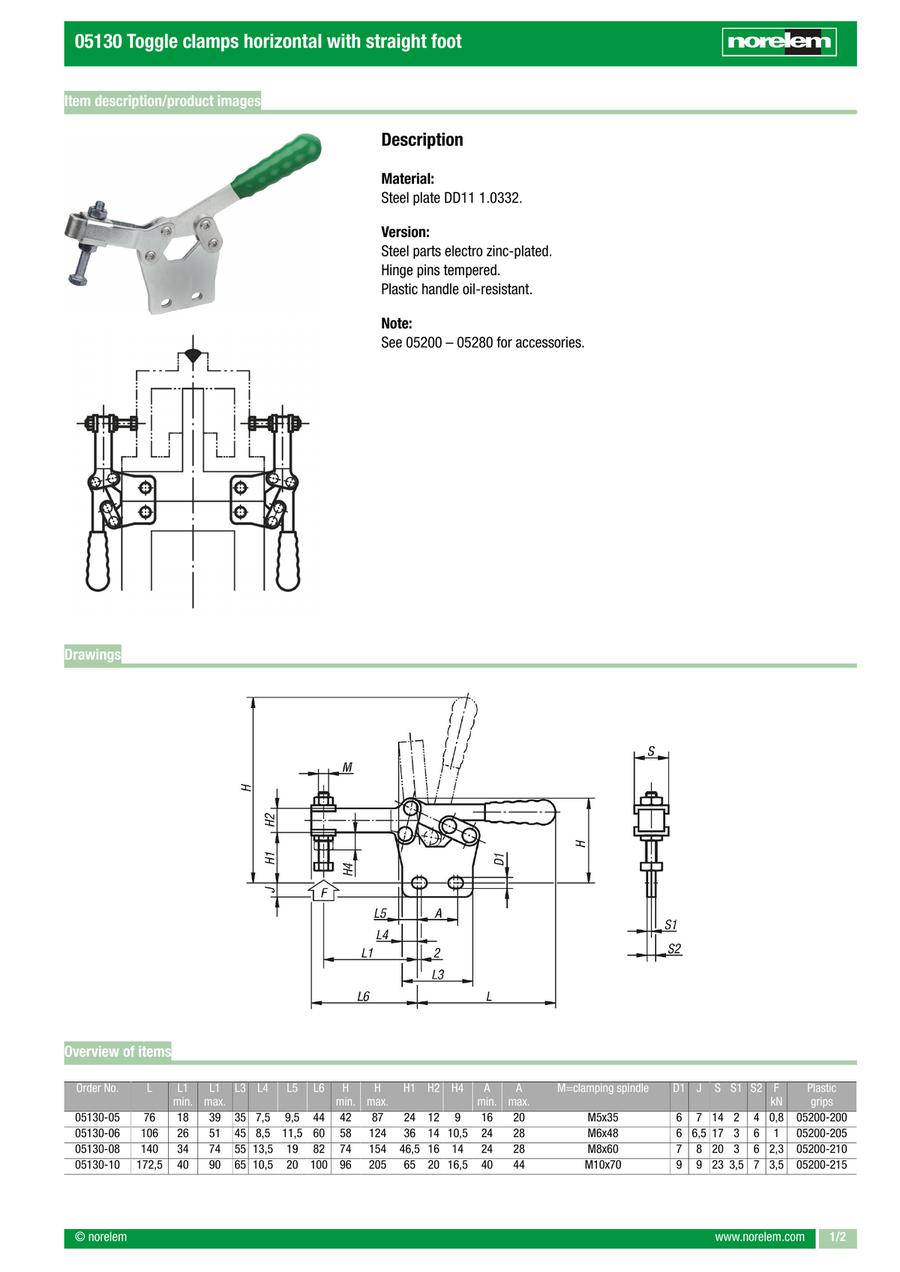

· Toggle clamps and power clamps are used in assembly and workholding fixtures

· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry

· Self-locking prevents the clamping arm opening autonomously.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
05130-05
05130-06
05130-08
05130-10
05130-12
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
M=clamping spindle S L3 S1 H2 L H1 D1 A max. Plastic Grips L5 A min. L4 F
(kN) 		L1 max. H4 H max. L6 L1 min. H min. S2 J Weight in kg (ERP)
(kg)

21.35 €

1 4 Days M5x351435212762462005200-2009.5167.50.839987441842470.0965

26.87 €

1 4 Days M6x4817453141063662805200-20511.5248.515110.512460265866.50.2488

39.98 €

1 4 Days M8x60205531614046.572805200-210192413.52.37414154823474680.3861

46.67 €

1 4 Days M10x7023653.520172.56594405200-215204010.53.59016.52051004096790.7089

51.93 €

1 4 Days M12x8026804242157394405200-22025.540184.611319260130541128121.1420

Loading...

  1. 1

Basic information

Main material steel Version 2 vertical foot Item Toggle Clamp
Version 1 horizontal RoHS yes

Configure

Clear all

5Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes
