  • D (Outer diameter)(mm)
  • L(mm)
      [20-80/0.1mm units]
    • A (Groove length)(mm)
        [0.5-6/0.1mm units]
      • AC (Groove length change)(mm)
          [0.5-10/0.1mm units]
        • Type
        • CAD
        MISUMI

        Strip guides / removable

        Strip guides / removable

        Click image to view enlarged image

        Part number:

        Still undefined. 8 possible part numbers found.
        Quantity:

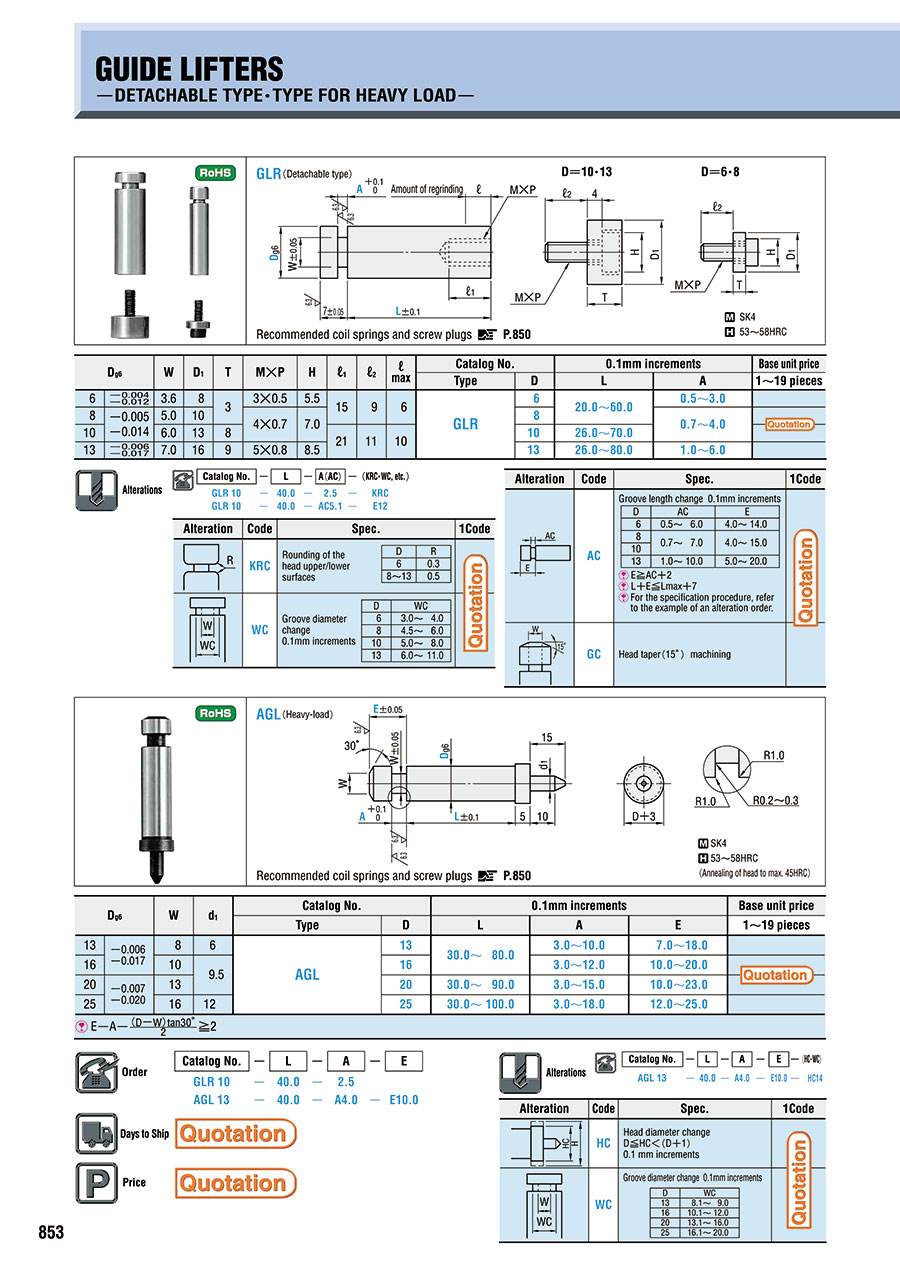

        Outline drawing

        Part number list

        Number of items
      • 1
        • Part number
        GLR6-[20-60/0.1]-[0.5-3/0.1]
        GLR6-[20-60/0.1]-AC[0.5-6/0.1]
        GLR8-[20-60/0.1]-[0.7-4/0.1]
        GLR8-[20-60/0.1]-AC[0.7-7/0.1]
        GLR10-[26-70/0.1]-[0.7-4/0.1]
        GLR10-[26-70/0.1]-AC[0.7-7/0.1]
        GLR13-[26-80/0.1]-[1-6/0.1]
        GLR13-[26-80/0.1]-AC[1-10/0.1]

        D (Outer diameter)

        (mm)

        L

        (mm)

        A (Groove length)

        (mm)

        AC (Groove length change)

        (mm)

        		RoHS?Minimum order quantity
        6
        20 ～ 60
        0.5 ～ 3
        -
        10
        1 pieces
        6
        20 ～ 60
        -
        0.5 ～ 6
        10
        1 pieces
        8
        20 ～ 60
        0.7 ～ 4
        -
        10
        1 pieces
        8
        20 ～ 60
        -
        0.7 ～ 7
        10
        1 pieces
        10
        26 ～ 70
        0.7 ～ 4
        -
        10
        1 pieces
        10
        26 ～ 70
        -
        0.7 ～ 7
        10
        1 pieces
        13
        26 ～ 80
        1 ～ 6
        -
        10
        1 pieces
        13
        26 ～ 80
        -
        1 ～ 10
        10
        1 pieces
        Unit price (excluding VAT)(Unit price including VAT)
        Standard shipping days
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
