Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / point tolerance -0.003 ─ 0 / dimensions Configurable

Mouse over image to enlarge

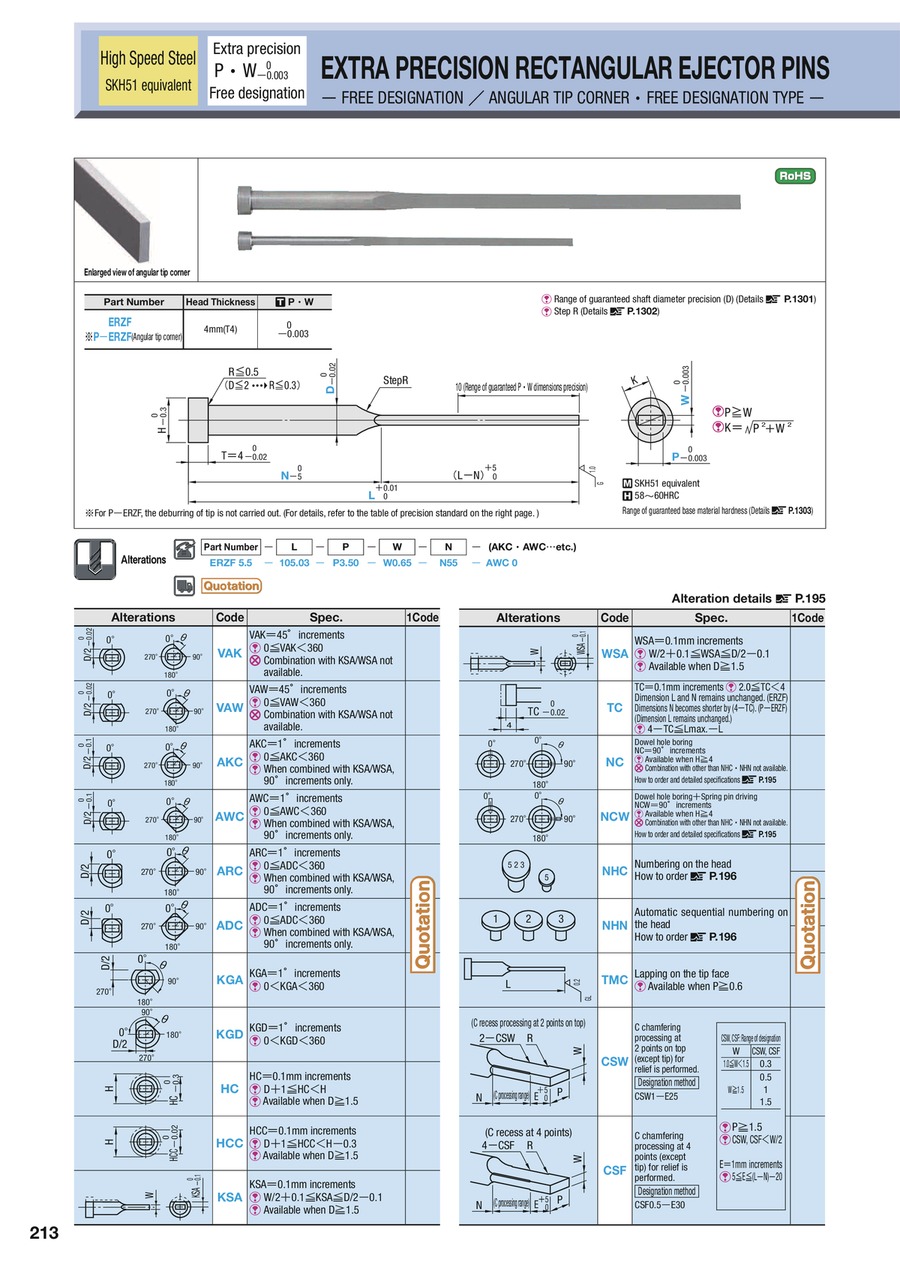

• CatalogP.213

• Outline drawing
• Part number list
• More Information
• Catalog

Outline drawing

Part number list

Number of items

30 items60 items90 items

1

Part number

ERZF1-[40-100/0.01]-P[0.3-0.8/0.01]-W[0.3-0.8/0.01]-N[23-90/1]

ERZF1.2-[40-100/0.01]-P[0.3-1/0.01]-W[0.3-1/0.01]-N[23-90/1]

ERZF1.5-[40-100/0.01]-P[0.6-1.3/0.01]-W[0.3-1.3/0.01]-N[23-90/1]

ERZF2-[40-150/0.01]-P[0.8-1.8/0.01]-W[0.3-1.8/0.01]-N[23-140/1]

ERZF2.5-[40-150/0.01]-P[0.8-2.3/0.01]-W[0.3-2.3/0.01]-N[26-135/1]

ERZF3-[40-150/0.01]-P[0.8-2.8/0.01]-W[0.3-2.8/0.01]-N[27-135/1]

ERZF3.5-[40-150/0.01]-P[1-3.3/0.01]-W[0.3-3.3/0.01]-N[27-135/1]

ERZF4-[40-200/0.01]-P[1-3.8/0.01]-W[0.3-3.8/0.01]-N[29-190/1]

ERZF4.5-[40-200/0.01]-P[1.2-4.3/0.01]-W[0.4-4.3/0.01]-N[29-135/1]

ERZF5-[40-200/0.01]-P[1.5-4.8/0.01]-W[0.4-4.8/0.01]-N[31-135/1]

ERZF5.5-[40-200/0.01]-P[1.5-5.3/0.01]-W[0.5-5.3/0.01]-N[31-135/1]

ERZF6-[40-200/0.01]-P[2-5.8/0.01]-W[0.5-5.8/0.01]-N[33-135/1]

P-ERZF1-[40-100/0.01]-P[0.3-0.8/0.01]-W[0.3-0.8/0.01]-N[23-90/1]

P-ERZF1.2-[40-100/0.01]-P[0.3-1/0.01]-W[0.3-1/0.01]-N[23-90/1]

P-ERZF1.5-[40-100/0.01]-P[0.6-1.3/0.01]-W[0.3-1.3/0.01]-N[23-90/1]

P-ERZF2-[40-150/0.01]-P[0.8-1.8/0.01]-W[0.3-1.8/0.01]-N[23-140/1]

P-ERZF2.5-[40-150/0.01]-P[0.8-2.3/0.01]-W[0.3-2.3/0.01]-N[26-140/1]

P-ERZF3-[40-150/0.01]-P[0.8-2.8/0.01]-W[0.3-2.8/0.01]-N[27-140/1]

P-ERZF3.5-[40-150/0.01]-P[1-3.3/0.01]-W[0.3-3.3/0.01]-N[27-140/1]

P-ERZF4-[40-200/0.01]-P[1-3.8/0.01]-W[0.3-3.8/0.01]-N[29-190/1]

P-ERZF4.5-[40-200/0.01]-P[1.2-4.3/0.01]-W[0.4-4.3/0.01]-N[29-190/1]

P-ERZF5-[40-200/0.01]-P[1.5-4.8/0.01]-W[0.4-4.8/0.01]-N[31-190/1]

P-ERZF5.5-[40-200/0.01]-P[1.8-5.3/0.01]-W[0.5-5.3/0.01]-N[31-190/1]

P-ERZF6-[40-200/0.01]-P[2-5.8/0.01]-W[0.5-5.8/0.01]-N[33-190/1]

P (Tip) (mm)	W (Tip) (mm)	D (Shaft diameter) (mm)	Trimming	L (L dimension) (mm)	N (mm)	RoHS?	Minimum order quantity

0.3 ～ 0.8	0.3 ～ 0.8	1	Normal	40 ～ 100	23 ～ 90	10	1 pieces
0.3 ～ 1	0.3 ～ 1	1.2	Normal	40 ～ 100	23 ～ 90	10	1 pieces
0.6 ～ 1.3	0.3 ～ 1.3	1.5	Normal	40 ～ 100	23 ～ 90	10	1 pieces
0.8 ～ 1.8	0.3 ～ 1.8	2	Normal	40 ～ 150	23 ～ 140	10	1 pieces
0.8 ～ 2.3	0.3 ～ 2.3	2.5	Normal	40 ～ 150	26 ～ 135	10	1 pieces
0.8 ～ 2.8	0.3 ～ 2.8	3	Normal	40 ～ 150	27 ～ 135	10	1 pieces
1 ～ 3.3	0.3 ～ 3.3	3.5	Normal	40 ～ 150	27 ～ 135	10	1 pieces
1 ～ 3.8	0.3 ～ 3.8	4	Normal	40 ～ 200	29 ～ 190	10	1 pieces
1.2 ～ 4.3	0.4 ～ 4.3	4.5	Normal	40 ～ 200	29 ～ 135	10	1 pieces
1.5 ～ 4.8	0.4 ～ 4.8	5	Normal	40 ～ 200	31 ～ 135	10	1 pieces
1.5 ～ 5.3	0.5 ～ 5.3	5.5	Normal	40 ～ 200	31 ～ 135	10	1 pieces
2 ～ 5.8	0.5 ～ 5.8	6	Normal	40 ～ 200	33 ～ 135	10	1 pieces
0.3 ～ 0.8	0.3 ～ 0.8	1	Angular tip corner	40 ～ 100	23 ～ 90	10	1 pieces
0.3 ～ 1	0.3 ～ 1	1.2	Angular tip corner	40 ～ 100	23 ～ 90	10	1 pieces
0.6 ～ 1.3	0.3 ～ 1.3	1.5	Angular tip corner	40 ～ 100	23 ～ 90	10	1 pieces
0.8 ～ 1.8	0.3 ～ 1.8	2	Angular tip corner	40 ～ 150	23 ～ 140	10	1 pieces
0.8 ～ 2.3	0.3 ～ 2.3	2.5	Angular tip corner	40 ～ 150	26 ～ 140	10	1 pieces
0.8 ～ 2.8	0.3 ～ 2.8	3	Angular tip corner	40 ～ 150	27 ～ 140	10	1 pieces
1 ～ 3.3	0.3 ～ 3.3	3.5	Angular tip corner	40 ～ 150	27 ～ 140	10	1 pieces
1 ～ 3.8	0.3 ～ 3.8	4	Angular tip corner	40 ～ 200	29 ～ 190	10	1 pieces
1.2 ～ 4.3	0.4 ～ 4.3	4.5	Angular tip corner	40 ～ 200	29 ～ 190	10	1 pieces
1.5 ～ 4.8	0.4 ～ 4.8	5	Angular tip corner	40 ～ 200	31 ～ 190	10	1 pieces
1.8 ～ 5.3	0.5 ～ 5.3	5.5	Angular tip corner	40 ～ 200	31 ～ 190	10	1 pieces
2 ～ 5.8	0.5 ～ 5.8	6	Angular tip corner	40 ～ 200	33 ～ 190	10	1 pieces
