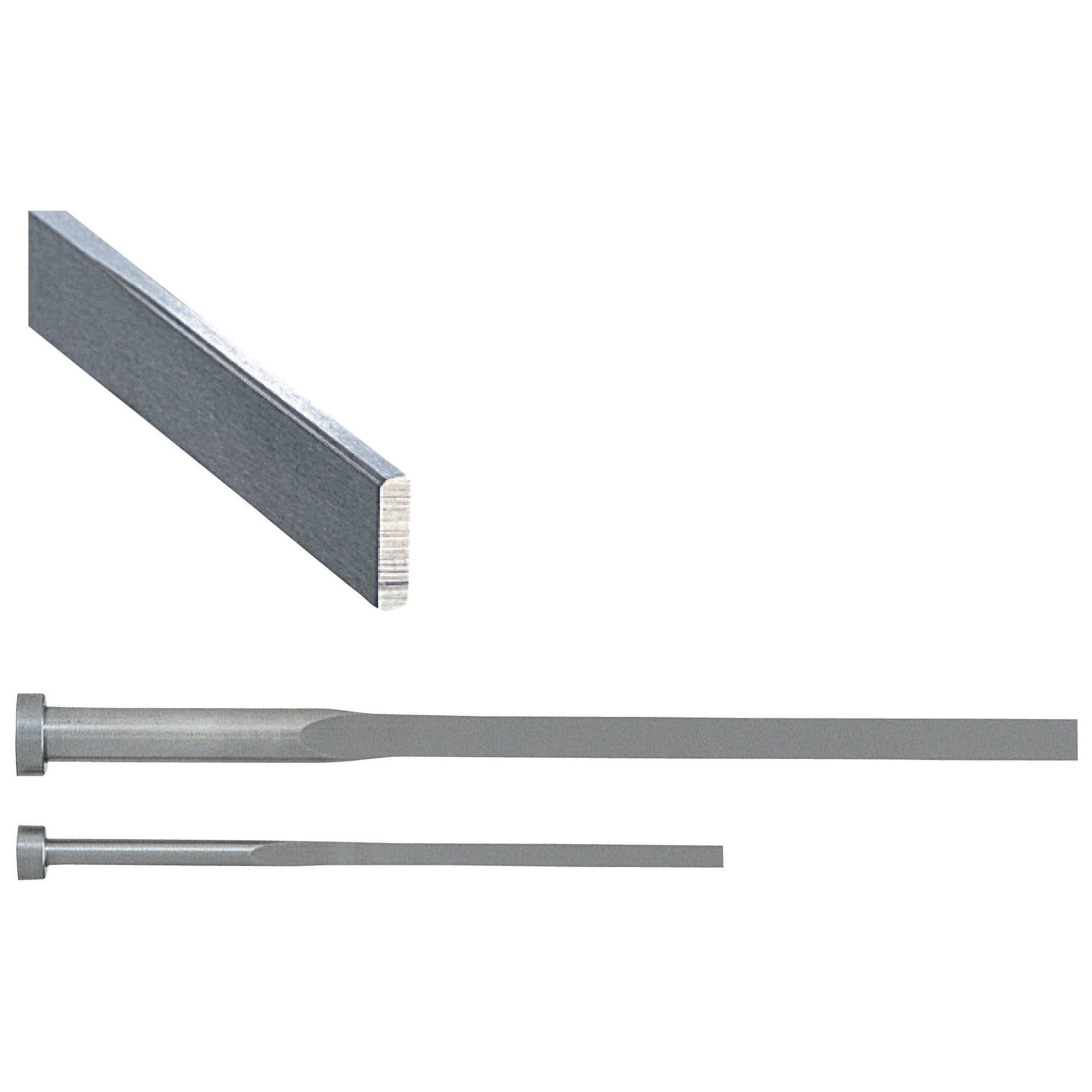

Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / corners rounded / length Configurable

Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / corners rounded / length Configurable

Click on this image to zoom in.

Click on this image to zoom in.

  • Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / corners rounded / length Configurable
  • Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / corners rounded / length Configurable

MISUMI

MISUMI

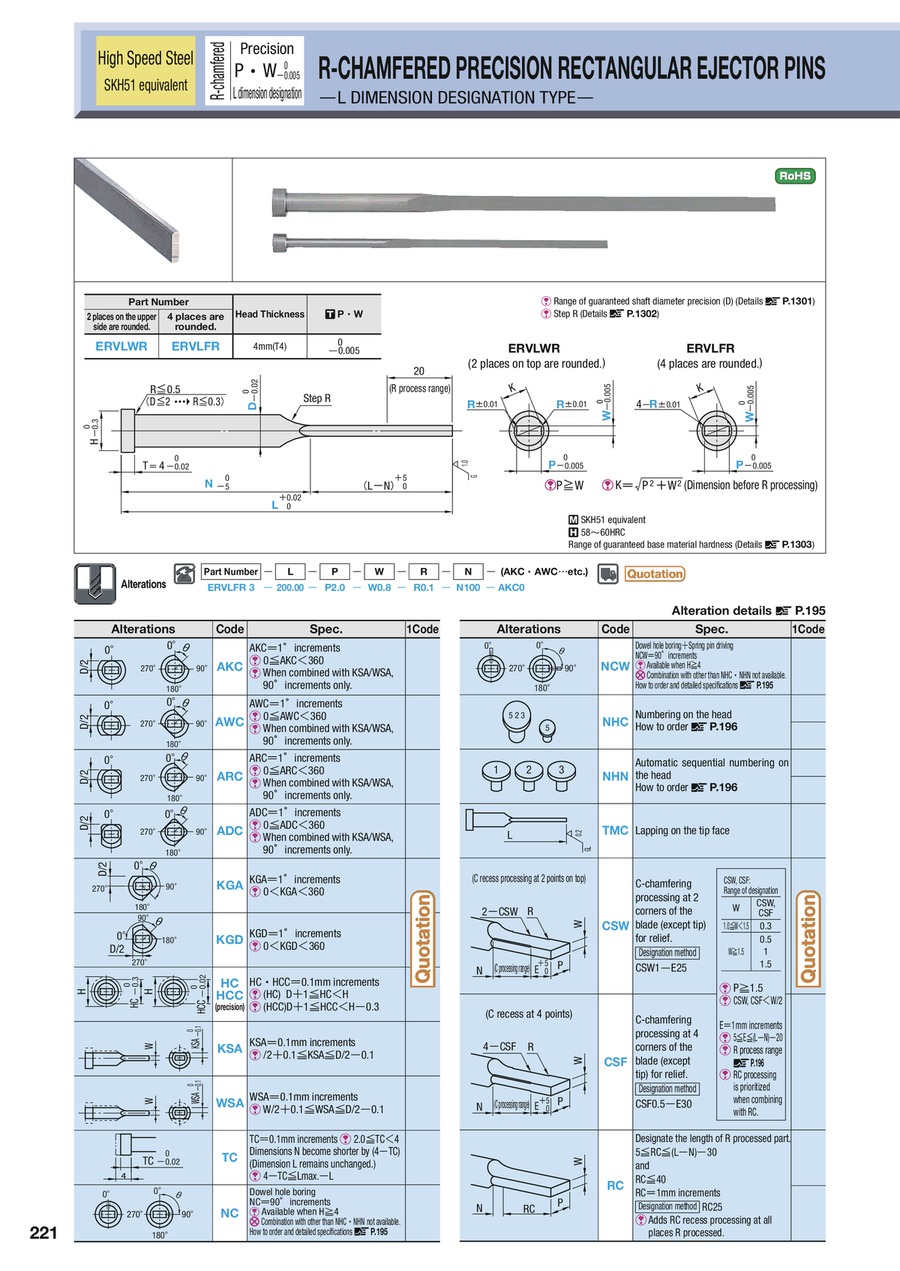

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
ERVLFR1.5-[60-150/0.01]-P[0.6,​0.7,​0.8,​1,​1.2]-W[0.3,​0.4,​0.5,​0.6]-R[0.05,​0.1,​0.15,​0.2]-N[40,​50,​60,​70,​75,​80,​90]
ERVLFR2-[60-150/0.01]-P[1,​1.2,​1.5,​1.6,​1.8]-W[0.3,​0.4,​0.5,​0.6,​0.7,​0.8,​1]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR2.5-[60-200/0.01]-P[1.5,​1.6,​2]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR3-[60-200/0.01]-P[2,​2.5]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR3.5-[60-200/0.01]-P[2.5,​3]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2,​1.5,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR4-[60-200/0.01]-P[3,​3.5]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2,​1.5,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR4.5-[100-200/0.01]-P4-W[0.6,​0.8,​1,​1.2,​1.5]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLFR5-[100-200/0.01]-P4-W[0.8,​1,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​80,​90,​100]
ERVLFR5.5-[100-200/0.01]-P5-W[0.5,​0.6,​1]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​80,​90,​100]
ERVLFR6-[100-200/0.01]-P5-W[0.8,​1,​1.5]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​75,​80,​90,​100]
ERVLWR1.5-[60-150/0.01]-P[0.6,​0.7,​0.8,​1,​1.2]-W[0.3,​0.4,​0.5,​0.6]-R[0.05,​0.1,​0.15,​0.2]-N[40,​50,​60,​70,​75,​80,​90]
ERVLWR2-[60-150/0.01]-P[1,​1.2,​1.5,​1.6,​1.8]-W[0.3,​0.4,​0.5,​0.6,​0.7,​0.8,​1]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR2.5-[60-200/0.01]-P[1.5,​1.6,​2]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR3-[60-200/0.01]-P[2,​2.5]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR3.5-[60-200/0.01]-P[2.5,​3]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2,​1.5,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR4-[60-200/0.01]-P[3,​3.5]-W[0.4,​0.5,​0.6,​0.7,​0.8,​1,​1.2,​1.5,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR4.5-[100-200/0.01]-P4-W[0.6,​0.8,​1,​1.2,​1.5]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[40,​50,​60,​70,​80,​90,​100]
ERVLWR5-[100-200/0.01]-P4-W[0.8,​1,​2]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​80,​90,​100]
ERVLWR5.5-[100-200/0.01]-P5-W[0.5,​0.6,​1]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​80,​90,​100]
ERVLWR6-[100-200/0.01]-P5-W[0.8,​1,​1.5]-R[0.05,​0.1,​0.15,​0.2,​0.3]-N[50,​60,​70,​75,​80,​90,​100]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSP (Tip)
(mm) 		W (Tip)
(mm) 		D (Shaft diameter)
(mm) 		R-Chamfered rectangular position L (L dimension)
(mm) 		N
(mm) 		R (Corner R of the tip corner)
(mm)
1 Quote 100.6 ～ 10.3 ～ 0.61.5FR60 ～ 15040 ～ 800.05 ～ 0.2
1 Quote 101 ～ 1.50.3 ～ 12FR60 ～ 15040 ～ 1000.05 ～ 0.3
1 Quote 101.5 ～ 20.4 ～ 1.22.5FR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 102 ～ 2.50.4 ～ 1.23FR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 102.5 ～ 30.4 ～ 23.5FR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1030.4 ～ 24FR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1040.6 ～ 1.54.5FR100 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1040.8 ～ 25FR100 ～ 20050 ～ 1000.05 ～ 0.3
1 Quote 1050.5 ～ 15.5FR100 ～ 20050 ～ 1000.05 ～ 0.3
1 Quote 1050.8 ～ 1.56FR100 ～ 20050 ～ 1000.05 ～ 0.3
1 Quote 100.6 ～ 10.3 ～ 0.61.5WR60 ～ 15040 ～ 800.05 ～ 0.2
1 Quote 101 ～ 1.50.3 ～ 12WR60 ～ 15040 ～ 1000.05 ～ 0.3
1 Quote 101.5 ～ 20.4 ～ 1.22.5WR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 102 ～ 2.50.4 ～ 1.23WR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 102.5 ～ 30.4 ～ 23.5WR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1030.4 ～ 24WR60 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1040.6 ～ 1.54.5WR100 ～ 20040 ～ 1000.05 ～ 0.3
1 Quote 1040.8 ～ 25WR100 ～ 20050 ～ 1000.05 ～ 0.3
1 Quote 1050.5 ～ 15.5WR100 ～ 20050 ～ 1000.05 ～ 0.3
1 Quote 1050.8 ～ 1.56WR100 ～ 20050 ～ 1000.05 ～ 0.3

Loading...

  1. 1


Basic information

Material EN 1.3343 Equiv. P/W dimension tolerance (Reference tolerance) 0/-0.005 Surface treatment No
Head thickness 4mm(T4) Rectangular treatment R-Chamfered rectangular Tip shape No
Character engraving type No Number of engraving characters No C-Chamfered position No
With/without gas release shape No Shape type Normal Trimming Normal
Technical Standard JIS

Configure

Clear all

20Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • P (Tip)(mm)

    • 0.6
    • 1
    • 1.5
    • 2
    • 2.5
    • 3
    • 4
    • 5

    Clear

  • W (Tip)(mm)

    • 0.3
    • 0.4
    • 0.5
    • 0.6
    • 0.8
    • 1
    • 1.2
    • 1.5
    • 2

    Clear

  • D (Shaft diameter)(mm)

    • 1.5
    • 2
    • 2.5
    • 3
    • 3.5
    • 4
    • 4.5
    • 5
    • 5.5
    • 6

    Clear

  • R-Chamfered rectangular position

    • WR
    • FR

    Clear

  • L (L dimension)(mm)

     [60-200/0.01mm Unit(s)]

    Clear

  • N(mm)

    • 40
    • 50
    • 60
    • 70
    • 75
    • 80
    • 100

    Clear

  • R (Corner R of the tip corner)(mm)

    • 0.05
    • 0.1
    • 0.15
    • 0.2
    • 0.3

    Clear

  • Type

    • ERVLFR
    • ERVLWR

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes
