Ejector pins, square, unmachined end face
Flat ejector pins / head shape selectable / EN 1.3343 Equiv.

Configure

Head thickness
P (Tip)(mm)
- 0.8
- 1
- 1.5
- 2
- 2.5
- 3
- 3.0
- 3.5
- 4
- 4.5
- 5
- 6
- 7
- 8
- 10
W (Tip)(mm)
- 0.3
- 0.4
- 0.5
- 0.6
- 0.7
- 0.8
- 1
- 1.2
- 1.5
- 2
[0.4-1/0.1mm units]
D (Shaft diameter)(mm)
- 1.5
- 2
- 2.5
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
- 6.5
- 7
- 8
- 8.5
- 10
- 10.5
- 12
Alterations
- No
- Yes
L (L dimension)(mm)
- 100
- 120
- 150
- 200
- 250
N(mm)
- 30
- 40
- 50
- 60
- 70
- 80
- 90
- 100
- 120
- 130
- 150
Type
- ERJ
- ERPH
CAD
- 2D
- 3D

Flat ejector pins / head shape selectable / EN 1.3343 Equiv.

Mouse over image to enlarge

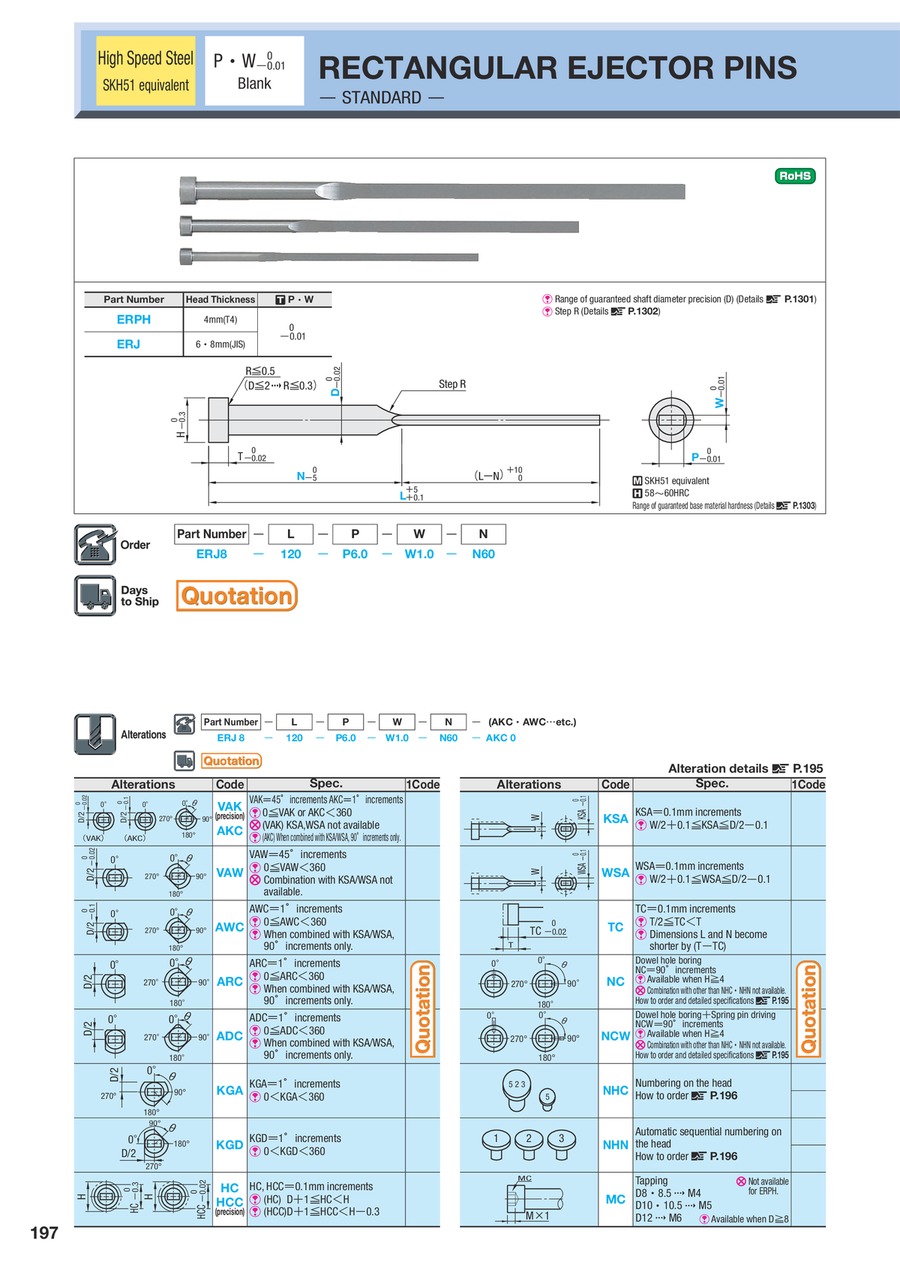

CatalogP.197

Part number:

Still undefined. 40 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

ERJ4-[100,120,150,200,250]-P[3,3.5]-W[0.4,0.5,0.6,0.7,0.8,0.9,1,1.2,1.5,2]-N[40,50,60,70,80,90,100,120]

ERJ4.5-[100,120,150,200,250]-P[3.5,4]-W[0.6,0.7,0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,90,100,120]

ERJ5-[100,120,150,175,200,250]-P4-W[0.6,0.7,0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,90,100,120]

ERJ5.5-[100,120,150,175,200,250]-P[4.5,5]-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120]

ERJ6-[120,150,175,200,250]-P5-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5,3]-N[40,50,60,70,80,90,100,120]

ERJ6.5-[150,200,250]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2]-N[40,50,60,70,80,100]

ERJ7-[120,150,175,200,250,300]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120,150,160,180]

ERJ8-[120,150,175,200,250,300]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120,130,150,160,180]

ERJ8.5-[150,200,250,300]-P7-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,80,100,150,180]

ERJ10-[120,150,175,200,250,300]-P8-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120,130,150,160,180]

ERJ10.5-[150,200,250,300]-P10-W[1.2,1.5,2]-N[40,50,80,100,150,200]

ERJ12-[150,200,250,300]-P10-W[1.2,1.5,1.8,2]-N[40,60,80,100,150]

ERPH1.5-[100,150]-P[0.8,1,1.2]-W[0.3,0.4,0.5,0.6]-N[40,50,60,70,80]

ERPH2-150-P1.5-W0.5-N60

ERPH2-[100,150,200]-P[1,1.2,1.5]-W[0.4,0.5,0.6,0.7,0.8,1]-N[30,40,50,60,70,80]

ERPH2.5-150-P2.0-W0.7-N50

ERPH2.5-150-P2.0-W0.8-N70

ERPH2.5-[100,150,200]-P[1.5,2]-W[0.4,0.5,0.6,0.7,0.8,1,1.2,1.5]-N[30,40,50,60,70,80,90,100]

ERPH3-[100,150,200]-P[2,2.5]-W[0.4,0.5,0.6,0.7,0.8,1,1.2,1.5,2]-N[40,50,60,70,80,90,100,120]

ERPH3.5-150-P3.0-W0.8-N40

ERPH3.5-150-P3.0-W0.8-N70

ERPH3.5-150-P3.0-W1.0-N80

ERPH3.5-[100,150,200,250]-P[2.5,3]-W[0.4,0.5,0.6,0.7,0.8,0.9,1,1.2,1.5,2]-N[40,50,60,70,80,100]

ERPH4-[100,150,200,250]-P[3,3.5]-W[0.4-1/0.1]-N[40,50,60,70,80,90,100,120]

ERPH4-[100,150,200,250]-P[3,3.5]-W[1.2,1.5,2]-N[40,50,60,70,80,90,100,120]

ERPH4.5-150-P4.0-W1.0-N70

ERPH4.5-200-P4.0-W1.0-N60

ERPH4.5-[100,120,150,200,250]-P[3.5,4]-W[0.6,0.7,0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,90,100,120]

ERPH5-[100,150,200,250]-P4-W[0.6,0.7,0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,90,100,120]

ERPH5.5-[100,120,150,175,200,250]-P[4.5,5]-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120]

ERPH6-[150,200,250]-P5-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5,3]-N[40,50,60,70,80,90,100,120]

ERPH6.5-150-P6.0-W1.5-N50

ERPH6.5-200-P6.0-W1.2-N70

ERPH6.5-200-P6.0-W1.5-N70

ERPH6.5-[150,200,250]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100]

ERPH7-[120,150,175,200,250]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120,160]

ERPH8-[150,200,250]-P6-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,60,70,80,100,120,130,160]

ERPH8.5-[150,200,250]-P7-W[0.8,0.9,1,1.2,1.5,1.8,2,2.5]-N[40,50,80,100]

ERPH10-[200,250]-P8-W[0.8,1,1.2,1.5,1.8,2,2.5]-N[80,100,120,130,160]

ERPH10.5-[150,200,250]-P10-W[1.2,1.5,2]-N[40,50,80,100]

Head thickness

P (Tip)

(mm)

W (Tip)

(mm)

D (Shaft diameter)

(mm)

Alterations

L (L dimension)

(mm)

RoHS?

Minimum order quantity

6mm(JIS)	3 ～ 3.5	0.4 ～ 2	4	Yes	100 ～ 250	40 ～ 120	10	1 pieces
6mm(JIS)	3.5 ～ 4	0.6 ～ 2	4.5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
6mm(JIS)	4	0.6 ～ 2	5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
6mm(JIS)	4.5 ～ 5	0.8 ～ 2	5.5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
6mm(JIS)	5	0.8 ～ 2	6	Yes	120 ～ 250	40 ～ 120	10	1 pieces
6mm(JIS)	6	0.8 ～ 2	6.5	Yes	150 ～ 250	40 ～ 100	10	1 pieces
6mm(JIS)	6	0.8 ～ 2	7	Yes	120 ～ 250	40 ～ 150	10	1 pieces
8mm(JIS)	6	0.8 ～ 2	8	Yes	120 ～ 250	40 ～ 150	10	1 pieces
8mm(JIS)	7	0.8 ～ 2	8.5	Yes	150 ～ 250	40 ～ 150	10	1 pieces
8mm(JIS)	8	0.8 ～ 2	10	Yes	120 ～ 250	40 ～ 150	10	1 pieces
8mm(JIS)	10	1.2 ～ 2	10.5	Yes	150 ～ 250	40 ～ 150	10	1 pieces
8mm(JIS)	10	1.2 ～ 2	12	Yes	150 ～ 250	40 ～ 150	10	1 pieces
4mm(T4)	0.8 ～ 1	0.3 ～ 0.6	1.5	Yes	100 ～ 150	40 ～ 80	10	1 pieces
4mm(T4)	1.5	0.5	2	No	150	60	10	1 pieces
4mm(T4)	1 ～ 1.5	0.4 ～ 1	2	Yes	100 ～ 200	30 ～ 80	10	1 pieces
4mm(T4)	2	0.7	2.5	No	150	50	10	1 pieces
4mm(T4)	2	0.8	2.5	No	150	70	10	1 pieces
4mm(T4)	1.5 ～ 2	0.4 ～ 1.5	2.5	Yes	100 ～ 200	30 ～ 100	10	1 pieces
4mm(T4)	2 ～ 2.5	0.4 ～ 2	3	Yes	100 ～ 200	40 ～ 120	10	1 pieces
4mm(T4)	3.0	0.8	3.5	No	150	40	10	1 pieces
4mm(T4)	3.0	0.8	3.5	No	150	70	10	1 pieces
4mm(T4)	3.0	1	3.5	No	150	80	10	1 pieces
4mm(T4)	2.5 ～ 3	0.4 ～ 2	3.5	Yes	100 ～ 250	40 ～ 100	10	1 pieces
4mm(T4)	3 ～ 3.5	0.4 ～ 1	4	Yes	100 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	3 ～ 3.5	1.2 ～ 2	4	Yes	100 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	4	1	4.5	No	150	70	10	1 pieces
4mm(T4)	4	1	4.5	No	200	60	10	1 pieces
4mm(T4)	3.5 ～ 4	0.6 ～ 2	4.5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	4	0.6 ～ 2	5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	4.5 ～ 5	0.8 ～ 2	5.5	Yes	100 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	5	0.8 ～ 2	6	Yes	150 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	6	1.5	6.5	No	150	50	10	1 pieces
4mm(T4)	6	1.2	6.5	No	200	70	10	1 pieces
4mm(T4)	6	1.5	6.5	No	200	70	10	1 pieces
4mm(T4)	6	0.8 ～ 2	6.5	Yes	150 ～ 250	40 ～ 100	10	1 pieces
4mm(T4)	6	0.8 ～ 2	7	Yes	120 ～ 250	40 ～ 120	10	1 pieces
4mm(T4)	6	0.8 ～ 2	8	Yes	150 ～ 250	40 ～ 130	10	1 pieces
4mm(T4)	7	0.8 ～ 2	8.5	Yes	150 ～ 250	40 ～ 100	10	1 pieces
4mm(T4)	8	0.8 ～ 2	10	Yes	200 ～ 250	80 ～ 130	10	1 pieces
4mm(T4)	10	1.2 ～ 2	10.5	Yes	150 ～ 250	40 ～ 100	10	1 pieces
