Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / engraved face / dimensions Configurable

Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / engraved face / dimensions Configurable

Click on this image to zoom in.

Click on this image to zoom in.

  • Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / engraved face / dimensions Configurable
  • Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / engraved face / dimensions Configurable
  • Precision flat ejector pins / head shape selectable / EN 1.3343 Equiv. / engraved face / dimensions Configurable

MISUMI

MISUMI

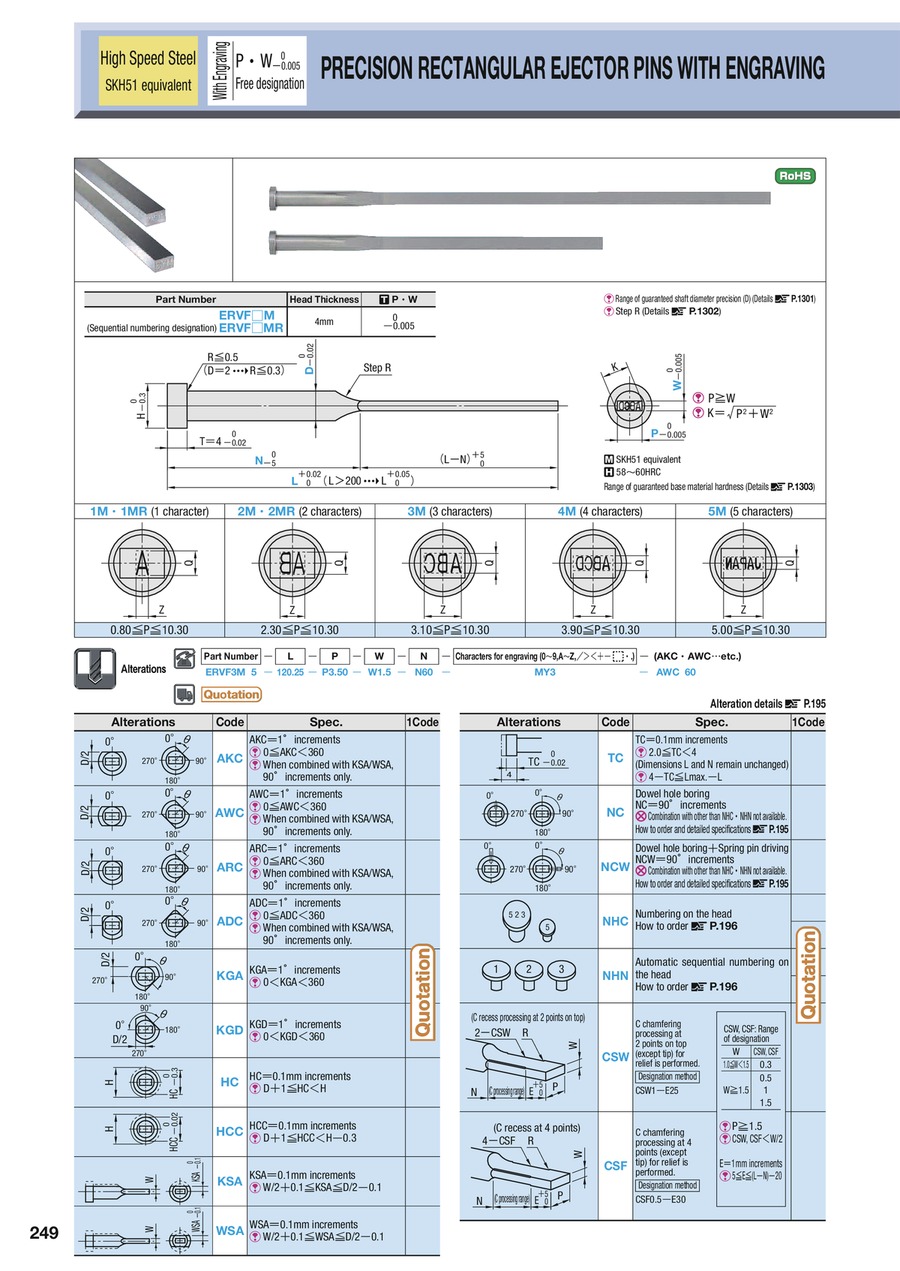

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. Next >>
Part Number
ERVF1M2-[40-250/0.01]-P[0.8-1.7/0.01]-W[0.3-1.6/0.01]-N[23-240/1]-*
ERVF1M2.5-[40-250/0.01]-P[0.8-2.2/0.01]-W[0.3-2.1/0.01]-N[26-240/1]-*
ERVF1M3-[40-250/0.01]-P[1-2.7/0.01]-W[0.3-2.7/0.01]-N[27-240/1]-*
ERVF1M3.5-[40-250/0.01]-P[1-3.2/0.01]-W[0.3-3.2/0.01]-N[27-240/1]-*
ERVF1M4-[40-250/0.01]-P[1-3.7/0.01]-W[0.7-3.7/0.01]-N[29-240/1]-*
ERVF1M4.5-[40-250/0.01]-P[1.2-4.2/0.01]-W[0.7-4.2/0.01]-N[29-240/1]-*
ERVF1M5-[50-250/0.01]-P[1.5-4.8/0.01]-W[0.7-4.66/0.01]-N[31-240/1]-*
ERVF1M5.5-[50-250/0.01]-P[1.8-5.3/0.01]-W[0.7-5.09/0.01]-N[31-240/1]-*
ERVF1M6-[50-250/0.01]-P[2-5.8/0.01]-W[0.7-5.5/0.01]-N[33-240/1]-*
ERVF1M6.5-[50-250/0.01]-P[2-6.3/0.01]-W[0.7-6.07/0.01]-N[40-240/1]-*
ERVF1M7-[50-250/0.01]-P[2.3-6.8/0.01]-W[0.7-6.43/0.01]-N[40-240/1]-*
ERVF1M8-[50-250/0.01]-P[2.3-7.8/0.01]-W[0.7-7.49/0.01]-N[40-240/1]-*
ERVF1M8.5-[50-250/0.01]-P[2.3-8.3/0.01]-W[0.7-8.07/0.01]-N[40-240/1]-*
ERVF1M10-[50-250/0.01]-P[3-9.8/0.01]-W[0.7-9.43/0.01]-N[40-240/1]-*
ERVF1M10.5-[50-250/0.01]-P[3-10.3/0.01]-W[0.7-9.95/0.01]-N[40-240/1]-*
ERVF1MR2-[40-250/0.01]-P[0.8-1.7/0.01]-W[0.3-1.7/0.01]-N[23-240/1]-*
ERVF1MR2.5-[40-250/0.01]-P[0.8-2.2/0.01]-W[0.3-2.2/0.01]-N[26-240/1]-*
ERVF1MR3-[40-250/0.01]-P[1-2.7/0.01]-W[0.3-2.7/0.01]-N[27-240/1]-*
ERVF1MR3.5-[40-250/0.01]-P[1-3.2/0.01]-W[0.3-3.2/0.01]-N[27-240/1]-*
ERVF1MR4-[40-250/0.01]-P[1-3.7/0.01]-W[0.3-3.7/0.01]-N[29-240/1]-*
ERVF1MR4.5-[40-250/0.01]-P[1.2-4.2/0.01]-W[0.3-4.2/0.01]-N[29-240/1]-*
ERVF1MR5-[50-250/0.01]-P[1.5-4.8/0.01]-W[0.4-4.8/0.01]-N[31-240/1]-*
ERVF1MR5.5-[50-250/0.01]-P[1.8-5.3/0.01]-W[0.4-5.3/0.01]-N[31-240/1]-*
ERVF1MR6-[50-250/0.01]-P[2-5.8/0.01]-W[0.5-5.8/0.01]-N[33-240/1]-*
ERVF1MR6.5-[50-250/0.01]-P[2-6.3/0.01]-W[0.5-6.3/0.01]-N[40-240/1]-*
ERVF1MR7-[50-250/0.01]-P[2.3-6.8/0.01]-W[0.5-6.8/0.01]-N[40-240/1]-*
ERVF1MR8-[50-250/0.01]-P[2.3-7.8/0.01]-W[0.5-7.8/0.01]-N[40-240/1]-*
ERVF1MR8.5-[50-250/0.01]-P[2.3-8.3/0.01]-W[0.7-8.07/0.01]-N[40-240/1]-*
ERVF1MR10-[50-250/0.01]-P[3-9.8/0.01]-W[0.5-9.8/0.01]-N[40-240/1]-*
ERVF1MR10.5-[50-250/0.01]-P[3-10.3/0.01]-W[0.7-9.95/0.01]-N[40-240/1]-*
ERVF2M3-[40-250/0.01]-P[2.3-2.7/0.01]-W[0.7-2.7/0.01]-N[27-240/1]-**
ERVF2M3.5-[40-250/0.01]-P[2.3-3.2/0.01]-W[0.7-3.2/0.01]-N[27-240/1]-**
ERVF2M4-[40-250/0.01]-P[2.3-3.7/0.01]-W[0.7-3.7/0.01]-N[29-240/1]-**
ERVF2M4.5-[40-250/0.01]-P[2.3-4.2/0.01]-W[0.7-4.2/0.01]-N[29-240/1]-**
ERVF2M5-[50-250/0.01]-P[2.3-4.8/0.01]-W[0.7-4.66/0.01]-N[31-240/1]-**
ERVF2M5.5-[50-250/0.01]-P[2.3-5.3/0.01]-W[0.7-5.09/0.01]-N[31-240/1]-**
ERVF2M6-[50-250/0.01]-P[2.3-5.8/0.01]-W[0.7-5.5/0.01]-N[33-240/1]-**
ERVF2M6.5-[50-250/0.01]-P[2.3-6.3/0.01]-W[0.7-6.07/0.01]-N[40-240/1]-**
ERVF2M7-[50-250/0.01]-P[2.3-6.8/0.01]-W[0.7-6.43/0.01]-N[40-240/1]-**
ERVF2M8-[50-250/0.01]-P[2.3-7.8/0.01]-W[0.7-7.49/0.01]-N[40-240/1]-**
ERVF2M8.5-[50-250/0.01]-P[2.3-8.3/0.01]-W[0.7-8.07/0.01]-N[40-240/1]-**
ERVF2M10-[50-250/0.01]-P[3-9.8/0.01]-W[0.7-9.43/0.01]-N[40-240/1]-**
ERVF2M10.5-[50-250/0.01]-P[3-10.3/0.01]-W[0.7-9.95/0.01]-N[40-240/1]-**
ERVF2MR3-[40-250/0.01]-P[1-2.7/0.01]-W[0.3-2.7/0.01]-N[27-240/1]-**
ERVF2MR3.5-[40-250/0.01]-P[1-3.2/0.01]-W[0.3-3.2/0.01]-N[27-240/1]-**
ERVF2MR4-[40-250/0.01]-P[1-3.7/0.01]-W[0.3-3.7/0.01]-N[29-240/1]-**
ERVF2MR4.5-[40-250/0.01]-P[1.2-4.2/0.01]-W[0.3-4.2/0.01]-N[29-240/1]-**
ERVF2MR5-[50-250/0.01]-P[1.5-4.8/0.01]-W[0.4-4.8/0.01]-N[31-240/1]-**
ERVF2MR5.5-[50-250/0.01]-P[1.8-5.3/0.01]-W[0.4-5.3/0.01]-N[31-240/1]-**
ERVF2MR6-[50-250/0.01]-P[2-5.8/0.01]-W[0.5-5.8/0.01]-N[33-240/1]-**
ERVF2MR6.5-[50-250/0.01]-P[2-6.3/0.01]-W[0.5-6.3/0.01]-N[40-240/1]-**
ERVF2MR7-[50-250/0.01]-P[2.3-6.8/0.01]-W[0.5-6.8/0.01]-N[40-240/1]-**
ERVF2MR8-[50-250/0.01]-P[2.3-7.8/0.01]-W[0.5-7.8/0.01]-N[40-240/1]-**
ERVF2MR8.5-[50-250/0.01]-P[2.3-8.3/0.01]-W[0.7-8.07/0.01]-N[40-240/1]-**
ERVF2MR10-[50-250/0.01]-P[3-9.8/0.01]-W[0.5-9.8/0.01]-N[40-240/1]-**
ERVF2MR10.5-[50-250/0.01]-P[3-10.3/0.01]-W[0.7-9.95/0.01]-N[40-240/1]-**
ERVF3M3.5-[40-250/0.01]-P[3.1-3.2/0.01]-W[0.7-3.2/0.01]-N[27-240/1]-***
ERVF3M4-[40-250/0.01]-P[3.1-3.7/0.01]-W[0.7-3.7/0.01]-N[29-240/1]-***
ERVF3M4.5-[40-250/0.01]-P[3.1-4.2/0.01]-W[0.7-4.2/0.01]-N[29-240/1]-***
ERVF3M5-[50-250/0.01]-P[3.1-4.8/0.01]-W[0.7-4.66/0.01]-N[31-240/1]-***
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSP (Tip)
(mm) 		W (Tip)
(mm) 		D (Shaft diameter)
(mm) 		Character engraving type Number of engraving characters L (L dimension)
(mm) 		N
(mm) 		Engraving character designation

-

1 Quote 100.8 ～ 1.70.3 ～ 1.62Concave character1 characters40 ～ 25023 ～ 240※Designation by WOS

-

1 Quote 100.8 ～ 2.20.3 ～ 2.12.5Concave character1 characters40 ～ 25026 ～ 240※Designation by WOS

-

1 Quote 101 ～ 2.70.3 ～ 2.73Concave character1 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.20.3 ～ 3.23.5Concave character1 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.70.7 ～ 3.74Concave character1 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.2 ～ 4.20.7 ～ 4.24.5Concave character1 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.5 ～ 4.80.7 ～ 4.665Concave character1 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 101.8 ～ 5.30.7 ～ 5.095.5Concave character1 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 102 ～ 5.80.7 ～ 5.56Concave character1 characters50 ～ 25033 ～ 240※Designation by WOS

-

1 Quote 102 ～ 6.30.7 ～ 6.076.5Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 6.80.7 ～ 6.437Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 7.80.7 ～ 7.498Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 8.30.7 ～ 8.078.5Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 9.80.7 ～ 9.4310Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 10.30.7 ～ 9.9510.5Concave character1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 100.8 ～ 1.70.3 ～ 1.72Concave character (Sequential numbering)1 characters40 ～ 25023 ～ 240※Designation by WOS

-

1 Quote 100.8 ～ 2.20.3 ～ 2.22.5Concave character (Sequential numbering)1 characters40 ～ 25026 ～ 240※Designation by WOS

-

1 Quote 101 ～ 2.70.3 ～ 2.73Concave character (Sequential numbering)1 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.20.3 ～ 3.23.5Concave character (Sequential numbering)1 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.70.3 ～ 3.74Concave character (Sequential numbering)1 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.2 ～ 4.20.3 ～ 4.24.5Concave character (Sequential numbering)1 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.5 ～ 4.80.4 ～ 4.85Concave character (Sequential numbering)1 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 101.8 ～ 5.30.4 ～ 5.35.5Concave character (Sequential numbering)1 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 102 ～ 5.80.5 ～ 5.86Concave character (Sequential numbering)1 characters50 ～ 25033 ～ 240※Designation by WOS

-

1 Quote 102 ～ 6.30.5 ～ 6.36.5Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 6.80.5 ～ 6.87Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 7.80.5 ～ 7.88Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 8.30.7 ～ 8.078.5Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 9.80.5 ～ 9.810Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 10.30.7 ～ 9.9510.5Concave character (Sequential numbering)1 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 2.70.7 ～ 2.73Concave character2 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 3.20.7 ～ 3.23.5Concave character2 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 3.70.7 ～ 3.74Concave character2 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 4.20.7 ～ 4.24.5Concave character2 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 4.80.7 ～ 4.665Concave character2 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 5.30.7 ～ 5.095.5Concave character2 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 5.80.7 ～ 5.56Concave character2 characters50 ～ 25033 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 6.30.7 ～ 6.076.5Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 6.80.7 ～ 6.437Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 7.80.7 ～ 7.498Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 8.30.7 ～ 8.078.5Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 9.80.7 ～ 9.4310Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 10.30.7 ～ 9.9510.5Concave character2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 101 ～ 2.70.3 ～ 2.73Concave character (Sequential numbering)2 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.20.3 ～ 3.23.5Concave character (Sequential numbering)2 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 101 ～ 3.70.3 ～ 3.74Concave character (Sequential numbering)2 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.2 ～ 4.20.3 ～ 4.24.5Concave character (Sequential numbering)2 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 101.5 ～ 4.80.4 ～ 4.85Concave character (Sequential numbering)2 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 101.8 ～ 5.30.4 ～ 5.35.5Concave character (Sequential numbering)2 characters50 ～ 25031 ～ 240※Designation by WOS

-

1 Quote 102 ～ 5.80.5 ～ 5.86Concave character (Sequential numbering)2 characters50 ～ 25033 ～ 240※Designation by WOS

-

1 Quote 102 ～ 6.30.5 ～ 6.36.5Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 6.80.5 ～ 6.87Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 7.80.5 ～ 7.88Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 102.3 ～ 8.30.7 ～ 8.078.5Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 9.80.5 ～ 9.810Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103 ～ 10.30.7 ～ 9.9510.5Concave character (Sequential numbering)2 characters50 ～ 25040 ～ 240※Designation by WOS

-

1 Quote 103.1 ～ 3.20.7 ～ 3.23.5Concave character3 characters40 ～ 25027 ～ 240※Designation by WOS

-

1 Quote 103.1 ～ 3.70.7 ～ 3.74Concave character3 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 103.1 ～ 4.20.7 ～ 4.24.5Concave character3 characters40 ～ 25029 ～ 240※Designation by WOS

-

1 Quote 103.1 ～ 4.80.7 ～ 4.665Concave character3 characters50 ～ 25031 ～ 240※Designation by WOS

Loading...

  1. 1
  2. 2
  3. Next >>


Basic information

Material EN 1.3343 Equiv. P/W dimension tolerance (Reference tolerance) 0/-0.005 Surface treatment No
Head thickness 4mm(T4) Rectangular treatment No Tip shape No
R-Chamfered rectangular position No C-Chamfered position No With/without gas release shape No
Shape type With engraving Trimming Normal

Configure

Clear all

86Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • P (Tip)(mm)

     [0.8-10.3/0.01mm Unit(s)]

    Clear

  • W (Tip)(mm)

     [0.3-9.95/0.01mm Unit(s)]

    Clear

  • D (Shaft diameter)(mm)

    • 2
    • 2.5
    • 3
    • 3.5
    • 4
    • 4.5
    • 5
    • 5.5
    • 6
    • 6.5
    • 7
    • 8
    • 8.5
    • 10
    • 10.5

    Clear

  • Character engraving type

    • Concave character
    • Concave character (Sequential numbering)

    Clear

  • Number of engraving characters

    • 1 characters
    • 2 characters
    • 3 characters
    • 4 characters
    • 5 characters

    Clear

  • L (L dimension)(mm)

     [40-250/0.01mm Unit(s)]

    Clear

  • N(mm)

     [23-240/1mm Unit(s)]

    Clear

  • Engraving character designation

    • ※Designation by WOS

    Clear

  • Type

    • ERVF1M
    • ERVF1MR
    • ERVF2M
    • ERVF2MR
    • ERVF3M
    • ERVF4M
    • ERVF5M

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes

Tech Support

Technical Support
Tel：+49 69 668173-0 / FAX：+49 69 668173-360
Technical Inquiry

Payment Method

  • Payment on account
  • Pre Payment
  • PayPal

On-Demand Manufacturing

Change View

Certificates

  • ISO-9001
  • ISO-14001
  • AEO Certification
  • RoHS
  • REACH

MISUMI worldwide

Social Media

Legal notice

Copyright © MISUMI Corporation All Rights Reserved.
