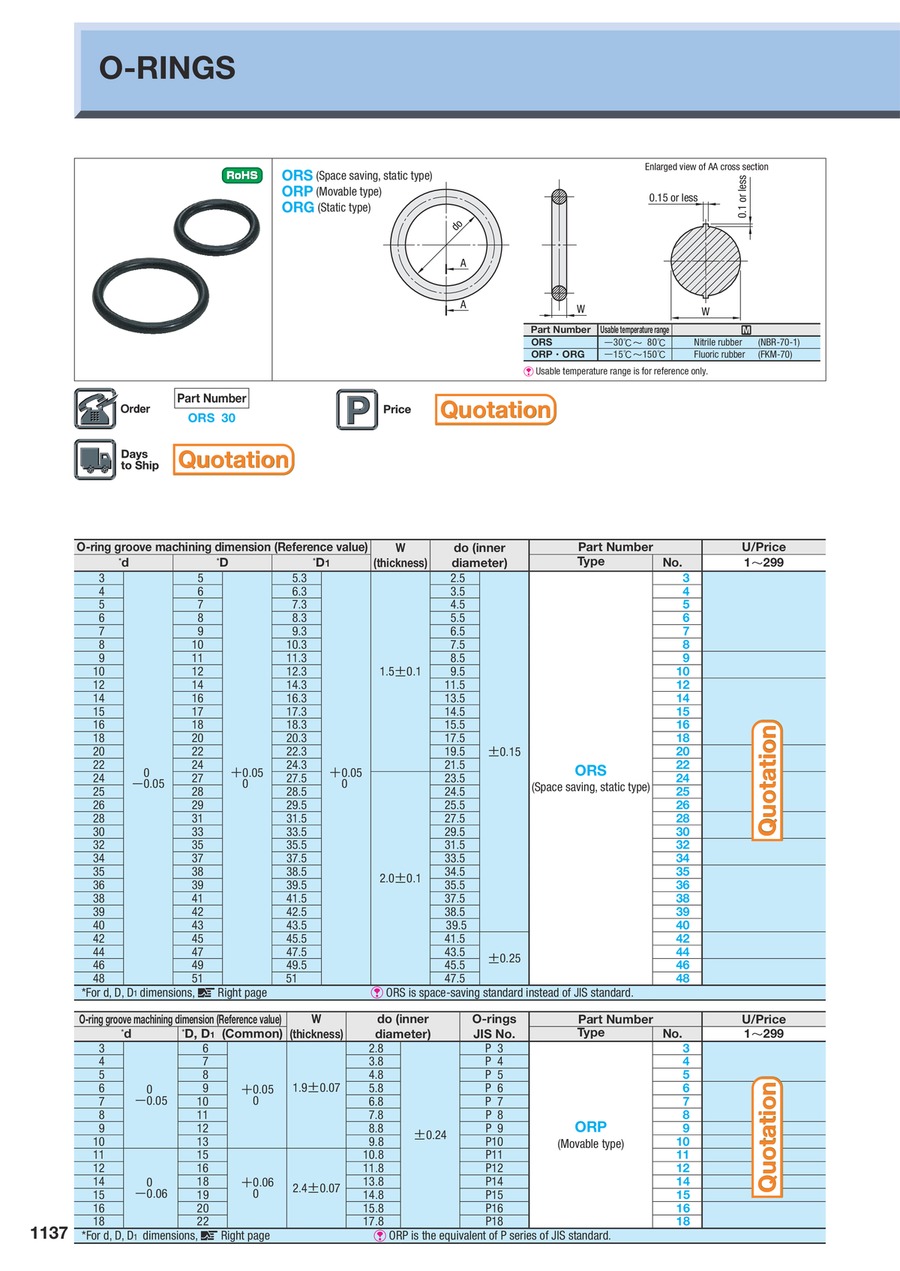

  • O-RINGs -Space Saving Static Type・Movable Type・Static Type-

    Part number:

    Still undefined. 85 possible part numbers found.
    Quantity:

    Outline drawing

    Dimensional Drawing / Product Specifications

    ORS (For space-saving fixing)
    ORP (For dynamic use)
    ORG (For fixing)
    Enlargement of cross section AA O-ring - For space-saving mounting, dynamic, and mounting
    Part NumberOperating Temperature Range[M] Material
    ORS-30°C to 80°CNitrile rubber (NBR-70-1)
    ORP·ORG-15°C to 200°CFluoro Rubber (FKM-70)

    [ ! ] The operating temperature range is a reference value.

    Specification Table

    O-ring mounting groove machining dimensions (Reference Value)W (Thickness)do (I.D.)Part Number
    * d※D※D1TypeNo.
    30
    -0.05
    5+0.05
    0
    5.3+0.05
    0
    1.5±0.12.5±0.15ORS
    (For space-saving fixing)
    3
    466.33.54
    577.34.55
    688.35.56
    799.36.57
    81010.37.58
    91111.38.59
    101212.39.510
    121414.311.512
    141616.313.514
    151717.314.515
    161818.315.516
    182020.317.518
    202222.319.520
    222424.321.522
    242727.52.0±0.123.524
    252828.524.525
    262929.525.526
    283131.527.528
    303333.529.530
    323535.531.532
    343737.533.534
    353838.534.535
    363939.535.536
    384141.537.538
    394242.538.539
    404343.54040
    424545.541.5±0.2542
    444747.543.544
    464949.545.546
    48515147.548
    * d, D, D1 dimension >> See below " ! " ORS is a space-saving standard that is not included in the JIS standard.
    O-ring mounting groove machining dimensions (Reference Value)W (Thickness)do (I.D.)O-Rings
    JIS No.
    Part Number
    * d* D, D1 (Common)TypeNo.
    30
    -0.05
    6+0.05
    0
    1.9±0.072.8±0.24P3ORP
    (For dynamic use)
    3
    473.8P44
    584.8P55
    695.8P66
    7106.8P77
    8117.8P88
    9128.8P99
    10139.8P1010
    110
    -0.06
    15+0.06
    0
    2.4±0.0710.8P1111
    121611.8P1212
    141813.8P1414
    151914.8P1515
    162015.8P1616
    182217.8P1818
    * d, D, D1 dimensions >> See below " ! " ORP is equivalent to JIS standard P series.
    O-ring mounting groove machining dimensions (Reference Value)W (Thickness)do (I.D.)O-Rings
    JIS No.
    Part Number
    * d* D, D1 (Common)TypeNo.
    200
    -0.06
    24+0.06
    0
    2.4±0.0719.8±0.3P20ORP
    (For dynamic use)
    20
    212520.8P2121
    222621.8P2222
    240
    -0.08
    30+0.08
    0
    3.5±0.123.7P2424
    253124.7P2525
    263225.7P2626
    283427.7P2828
    303629.7P3030
    313730.7P3131
    323831.7P3232
    344033.7P3434
    354134.7P3535
    364235.7P3636
    384437.7P3838
    394538.7P3939
    404639.7P4040
    424841.7±0.5P4242
    445043.7P4444
    465245.7P4646
    485447.7P4848
    250
    -0.10
    30+0.10
    0
    3.1±0.124.4±0.3G25ORG
    (For fixing)
    25
    303529.4G3030
    354034.4G3535
    404539.4G4040
    455044.4±0.5G4545
    505549.4G5050
    556054.4G5555
    606559.4G6060
    657064.4G6565
    707569.4G7070
    758074.4±0.8G7575
    808579.4G8080
    859084.4G8585
    909589.4G9090
    9510094.4G9595
    10010599.4G100100
    105110104.4G105105
    110115109.4G110110
    115120114.4G115115
    120125119.4G120120
    * d, D, D1 dimensions >> See below " ! " ORP is equivalent to JIS standard P series. [!] ORG is equivalent to the JIS standard G series.

    Ordering Example

    Part Number
    ORS 30

    Related information

    Example

    Example of groove machining For External Pressure For Internal Pressure
    O-ring - For space-saving mounting, dynamic, and mounting


    ■O-ring groove machining dimensions

    Part NumberG +0.25/0H[T]H ToleranceRmax.D·d Misalignment max.
    ORS 3 to 222.51.00
    -0.1
    ORS 24 to 482.71.5
    ORP 3 to 102.51.4±0.050.40.05
    ORP 11 to 223.21.80.40.05
    ORP 24 to 484.72.70.70.08
    ORG 25 to 1204.12.40.80.08

    [ ! ] H is used for surface mounting
    [ ! ] For dynamic use, use ORP
    [ ! ] Please calculate the depth of the groove for fixing the cylinder surface according to O-ring - For space-saving mounting, dynamic, and mounting .
    [ ! ] The notation for dynamic/mounting use is based on the standard stipulated by JIS B2401.
    [ ! ] Dimensions for dynamic/mounting use are different.
    [ ! ] O-rings for dynamic use can also be used for mounting use.

    Part number list
