Configure

Material
With/without flange
- Yes
- No
F (Flange position)(°)
- 0
Hardness
W (External shape)(mm)
[1-20/0.01mm units]
H (Flange thickness)(mm)
- 4
- 6
HC (Changes the flange thickness)(mm)
[2-6/0.1mm units]
L (L dimension)(mm)
[10-100/0.01mm units]
P (Outer diameter)(mm)
[1-20/0.01mm units]
Type
- BCSA
- BCSD
- BCSH
- BCSN
- BCSR
- BCSSA
- BCSSD
- BCSSN
- BCSSR
- BCSSV
- BCSSX
- BCSV
- BCSX
- SPHD
CAD
- 2D
- 3D

Block core pins / stepped / HSS, tool steel

Click image to view enlarged image

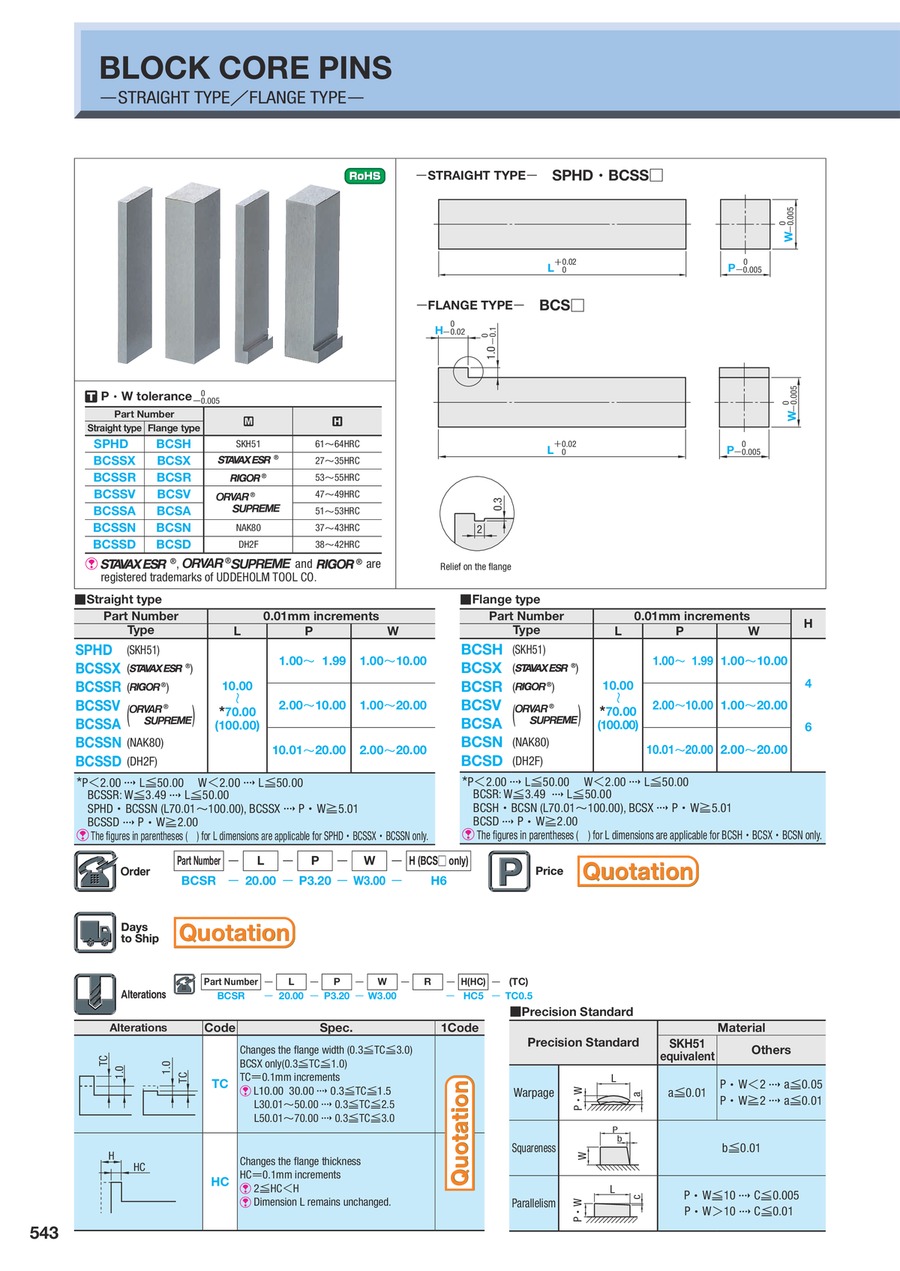

CatalogP.543

Part number:

Still undefined. 21 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

BCSA-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-H[4,6]

BCSA-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-HC[2-6/0.1]

BCSD-[10-70/0.01]-P[2-20/0.01]-W[2-20/0.01]-H[4,6]

BCSD-[10-70/0.01]-P[2-20/0.01]-W[2-20/0.01]-HC[2-6/0.1]

BCSH-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]-H[4,6]

BCSH-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]-HC[2-6/0.1]

BCSN-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]-H[4,6]

BCSN-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]-HC[2-6/0.1]

BCSR-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-H[4,6]

BCSR-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-HC[2-6/0.1]

BCSSA-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]

BCSSD-[10-70/0.01]-P[2-20/0.01]-W[2-20/0.01]

BCSSN-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]

BCSSR-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]

BCSSV-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]

BCSSX-[10-100/0.01]-P[5.01-20/0.01]-W[5.01-20/0.01]

BCSV-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-H[4,6]

BCSV-[10-70/0.01]-P[1-20/0.01]-W[1-20/0.01]-HC[2-6/0.1]

BCSX-[10-100/0.01]-P[5.01-20/0.01]-W[5.01-20/0.01]-H[4,6]

BCSX-[10-100/0.01]-P[5.01-20/0.01]-W[5.01-20/0.01]-HC[2-6/0.1]

SPHD-[10-100/0.01]-P[1-20/0.01]-W[1-20/0.01]

Material

With/without flange

F (Flange position)

(°)

Hardness

W (External shape)

(mm)

H (Flange thickness)

(mm)

HC (Changes the flange thickness)

(mm)

L (L dimension)

(mm)

P (Outer diameter)

(mm)

RoHS?

Minimum order quantity

ORVAR SUPREME	Yes	0	51～53HRC	1 ～ 20	4 ～ 6	-	10 ～ 70	1 ～ 20	10	1 pieces
ORVAR SUPREME	Yes	0	51～53HRC	1 ～ 20	-	2 ～ 6	10 ～ 70	1 ～ 20	10	1 pieces
DH2F	Yes	0	-	2 ～ 20	4 ～ 6	-	10 ～ 70	2 ～ 20	10	1 pieces
DH2F	Yes	0	-	2 ～ 20	-	2 ～ 6	10 ～ 70	2 ～ 20	10	1 pieces
SKH51	Yes	0	61～64HRC	1 ～ 20	4 ～ 6	-	10 ～ 100	1 ～ 20	10	1 pieces
SKH51	Yes	0	61～64HRC	1 ～ 20	-	2 ～ 6	10 ～ 100	1 ～ 20	10	1 pieces
NAK80	Yes	0	37～43HRC	1 ～ 20	4 ～ 6	-	10 ～ 100	1 ～ 20	10	1 pieces
NAK80	Yes	0	37～43HRC	1 ～ 20	-	2 ～ 6	10 ～ 100	1 ～ 20	10	1 pieces
RIGOR	Yes	0	53～55HRC	1 ～ 20	4 ～ 6	-	10 ～ 70	1 ～ 20	10	1 pieces
RIGOR	Yes	0	53～55HRC	1 ～ 20	-	2 ～ 6	10 ～ 70	1 ～ 20	10	1 pieces
ORVAR SUPREME	No	-	51～53HRC	1 ～ 20	-	-	10 ～ 70	1 ～ 20	10	1 pieces
DH2F	No	-	-	2 ～ 20	-	-	10 ～ 70	2 ～ 20	10	1 pieces
NAK80	No	-	37～43HRC	1 ～ 20	-	-	10 ～ 100	1 ～ 20	10	1 pieces
RIGOR	No	-	53～55HRC	1 ～ 20	-	-	10 ～ 70	1 ～ 20	10	1 pieces
ORVAR SUPREME	No	-	47～49HRC	1 ～ 20	-	-	10 ～ 70	1 ～ 20	10	1 pieces
STAVAX ESR	No	-	27～35HRC	5.01 ～ 20	-	-	10 ～ 100	5.01 ～ 20	10	1 pieces
ORVAR SUPREME	Yes	0	47～49HRC	1 ～ 20	4 ～ 6	-	10 ～ 70	1 ～ 20	10	1 pieces
ORVAR SUPREME	Yes	0	47～49HRC	1 ～ 20	-	2 ～ 6	10 ～ 70	1 ～ 20	10	1 pieces
STAVAX ESR	Yes	0	27～35HRC	5.01 ～ 20	4 ～ 6	-	10 ～ 100	5.01 ～ 20	10	1 pieces
STAVAX ESR	Yes	0	27～35HRC	5.01 ～ 20	-	2 ～ 6	10 ～ 100	5.01 ～ 20	10	1 pieces
SKH51	No	-	61～64HRC	1 ～ 20	-	-	10 ～ 100	1 ～ 20	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

More Information

Catalog

Products homepage

Catalog (2-page spread)
