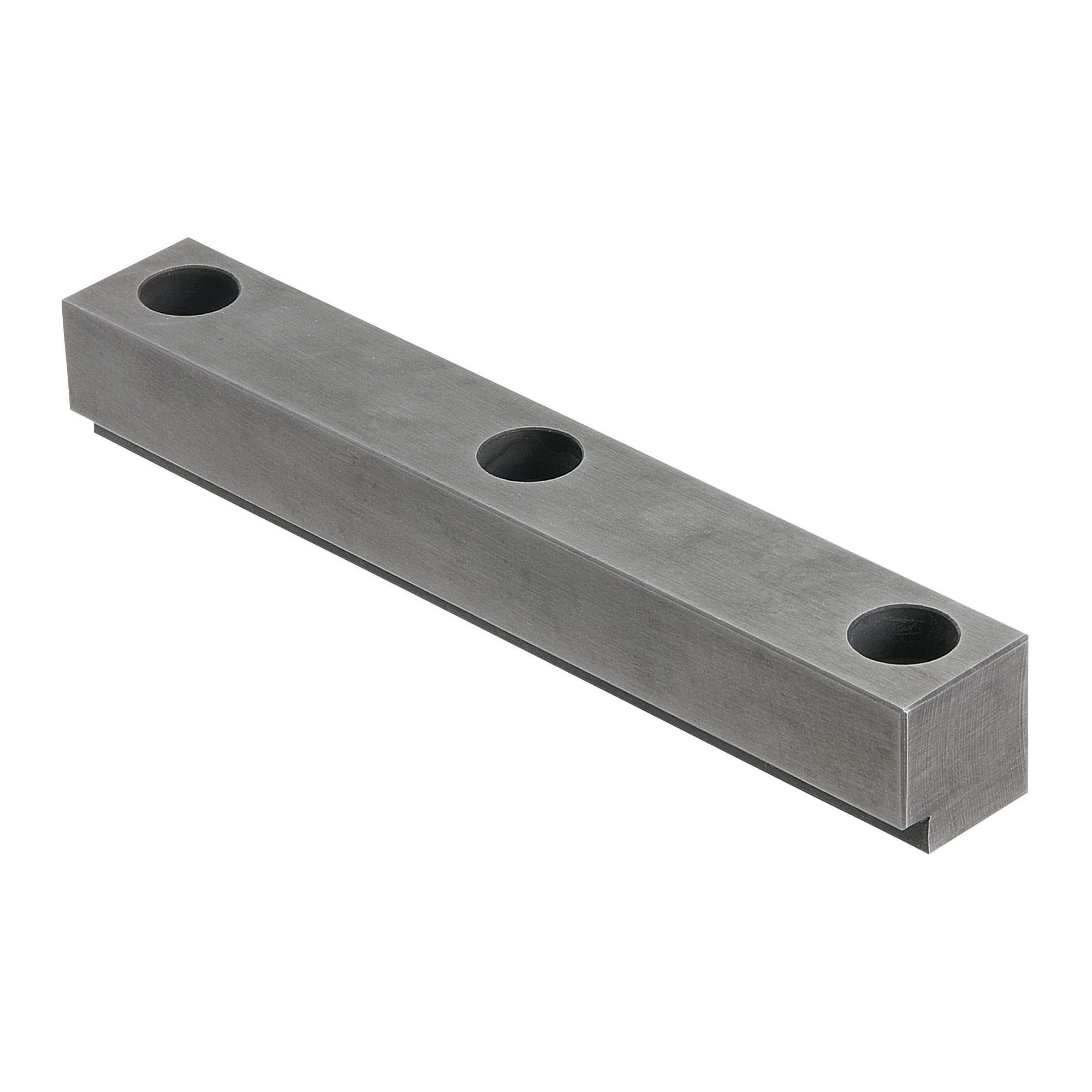

Sliding guide rails / steel / nitrided / stepped

Sliding guide rails / steel / nitrided / stepped

Mouse over image to enlarge

  • Sliding guide rails / steel / nitrided / stepped
  • Sliding guide rails / steel / nitrided / stepped

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    GR5MMT20-20-[60-150/10]
    GR5MMT20-25-[60-150/10]
    GR5MMT20-30-[60-150/10]
    GR5MT20-20-[60-150/10]
    GR5MT20-25-[60-150/10]
    GR5MT20-30-[60-150/10]
    GR8MMT20-20-[60-150/10]
    GR8MMT20-25-[60-150/10]
    GR8MMT20-30-[60-150/10]
    GR8MT20-20-[60-150/10]
    GR8MT20-25-[60-150/10]
    GR8MT20-30-[60-150/10]

    Oil groove

    T (Rail thickness)

    (mm)

    L (Rail length)

    (mm)

    S (Heel height)

    (mm)

    U (Heel width)

    (mm)

    		RoHS?Minimum order quantity
    Oil groove
    20
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Oil groove
    25
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Oil groove
    30
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Non-oil groove
    20
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Non-oil groove
    25
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Non-oil groove
    30
    60 ～ 150
    5
    3.5
    10
    1 pieces
    Oil groove
    20
    60 ～ 150
    8
    8
    10
    1 pieces
    Oil groove
    25
    60 ～ 150
    8
    8
    10
    1 pieces
    Oil groove
    30
    60 ～ 150
    8
    8
    10
    1 pieces
    Non-oil groove
    20
    60 ～ 150
    8
    8
    10
    1 pieces
    Non-oil groove
    25
    60 ～ 150
    8
    8
    10
    1 pieces
    Non-oil groove
    30
    60 ～ 150
    8
    8
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
  • 1

    • More Information
