Support Units / Square / Fixed Side / Compact
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
| Type | Material | Surface Treatment | |
| BSQ | EN 1.1191 Equiv. | EN 1.0038 Equiv. | Black Oxide |
| BSQM | Electroless Nickel Plating | ||

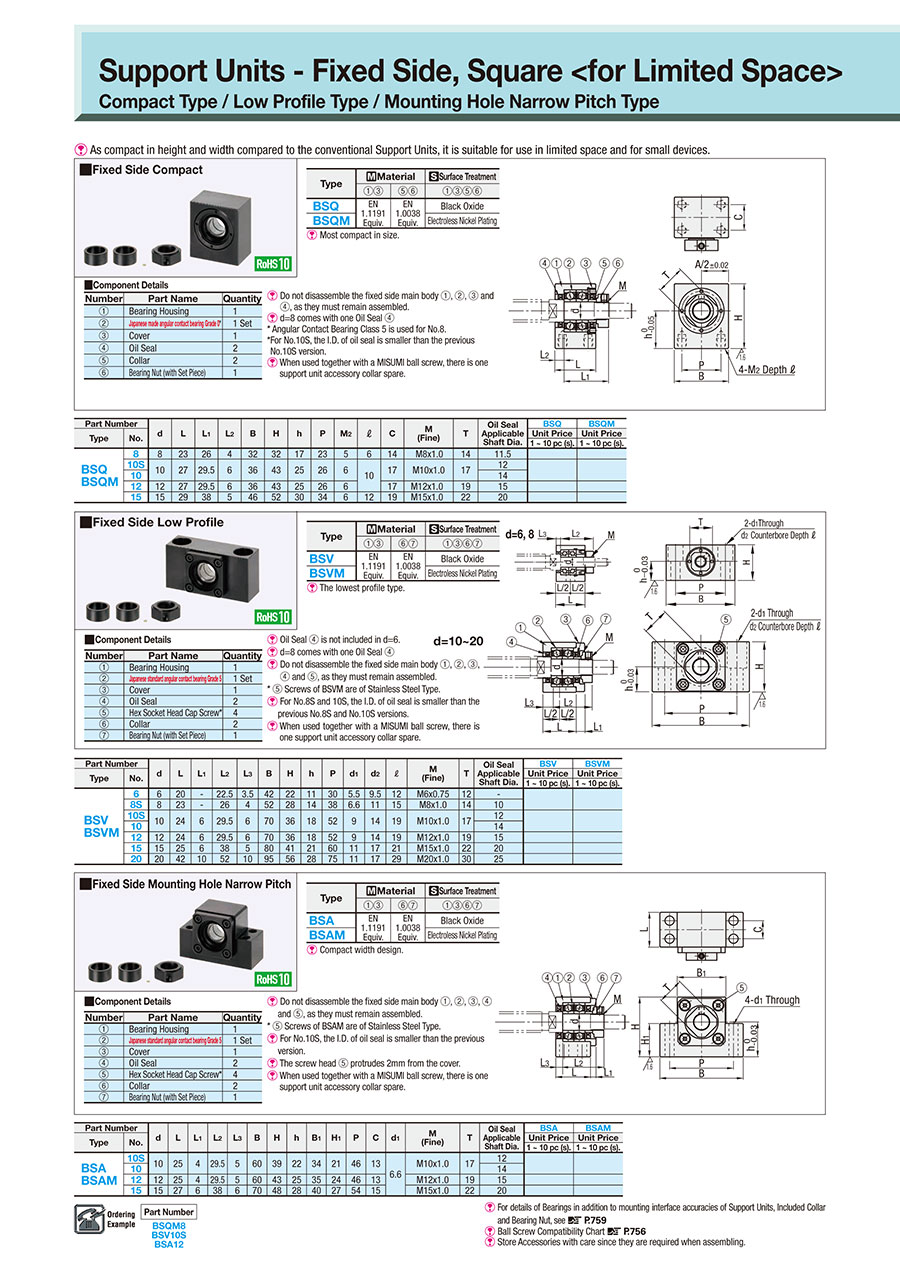

Specifications
| Part Number |
| BSQM8 BSV10S BSA12 |
| Number | Part Name | Quantity |
| Bearing Housing | 1 | |
| Japanese made angular contact bearing Grade 0* | 1 Set | |
| Cover | 1 | |
| Oil Seal | 2 | |
| Collar | 2 | |
| Bearing Nut (with Set Piece) | 1 |
d=8 comes with one Oil Seal
* Angular Contact Bearing Class 5 is used for No.8.
*For No.10S, the I.D. of oil seal is smaller than the previous No.10S version.
When used together with a MISUMI ball screw, there is one support unit accessory collar spare.
| Part Number | d | L | L1 | L2 | B | H | h | P | M2 | ℓ | C | M (Fine) | T | Oil Seal Applicable Shaft Dia. | BSQ | BSQM | |
| Type | No. | Unit Price | Unit Price | ||||||||||||||
| 1 ~ 10 pc (s). | 1 ~ 10 pc (s). | ||||||||||||||||
| BSQ BSQM | 8 | 8 | 23 | 26 | 4 | 32 | 32 | 17 | 23 | 5 | 6 | 14 | M8x1.0 | 14 | 11.5 | ||
| 10S | 10 | 27 | 29.5 | 6 | 36 | 43 | 25 | 26 | 6 | 10 | 17 | M10x1.0 | 17 | 12 | |||
| 10 | 14 | ||||||||||||||||
| 12 | 12 | 27 | 29.5 | 6 | 36 | 43 | 25 | 26 | 6 | 17 | M12x1.0 | 19 | 15 | ||||
| 15 | 15 | 29 | 38 | 5 | 46 | 52 | 30 | 34 | 6 | 12 | 19 | M15x1.0 | 22 | 20 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BSQ8 |
| BSQ10 |
| BSQ10S |
| BSQ12 |
| BSQ15 |
| BSQM8 |
| BSQM10 |
| BSQM10S |
| BSQM12 |
| BSQM15 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Shaft Dia. d (φ) | Surface Treatment | Shaft Height h (mm) | Thickness of Square Type L / Round Type F (mm) (mm) | Width B (mm) | Basic Load Rating Dynamic Rating (N) | Basic Load Rating Static Rating (N) | Oil Seal Applicable Shaft Dia. (Ø) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
88.79 € | 1 | Available |
Same day
Stock | 10 | 8 | Black Oxide | 17 | 23 | 32 | 4400 | 4400 | 11.5 | |
69.77 € | 1 | Available |
Same day
Stock | 10 | 10 | Black Oxide | 25 | 27 | 36 | 6100 | 4150 | 14 | |
69.77 € | 1 | Available | 5 Days | 10 | 10 | Black Oxide | 25 | 27 | 36 | 6100 | 4150 | 12 | |
71.03 € | 1 | Available |
Same day
Stock | 10 | 12 | Black Oxide | 25 | 27 | 36 | 6650 | 4900 | 15 | |
80.35 € | 1 | Available | 5 Days | 10 | 15 | Black Oxide | 30 | 29 | 46 | 7600 | 6300 | 20 | |
108.18 € | 1 | Available |
Same day
Stock | 10 | 8 | Electroless Nickel Plating | 17 | 23 | 32 | 4400 | 4400 | 11.5 | |
83.75 € | 1 | Available | 5 Days | 10 | 10 | Electroless Nickel Plating | 25 | 27 | 36 | 6100 | 4150 | 14 | |
83.75 € | 1 | Available | 5 Days | 10 | 10 | Electroless Nickel Plating | 25 | 27 | 36 | 6100 | 4150 | 12 | |
84.50 € | 1 | Available | 9 Days | 10 | 12 | Electroless Nickel Plating | 25 | 27 | 36 | 6650 | 4900 | 15 | |
96.47 € | 1 | Available | 5 Days | 10 | 15 | Electroless Nickel Plating | 30 | 29 | 46 | 7600 | 6300 | 20 |
Loading...
Basic information
| Type | Fixed Side Compact Type | Shape | Square Type | Mounting Method | Bottom Mount |
|---|---|---|---|---|---|
| Bearing Type | Angular Contact Bearing | Bearing Precision | Grade 0 | Material | EN 1.1191 Equiv. |
| Set | Fixed Side Support Units Only |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Shaft Dia. d(φ)
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Shaft Height h(mm)
-
Thickness of Square Type L / Round Type F (mm)(mm)
-
Width B(mm)
-
Oil Seal Applicable Shaft Dia.(Ø)
-
Type
- BSQ
- BSQM
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
