Indexing Plungers / Knobless / Compact
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

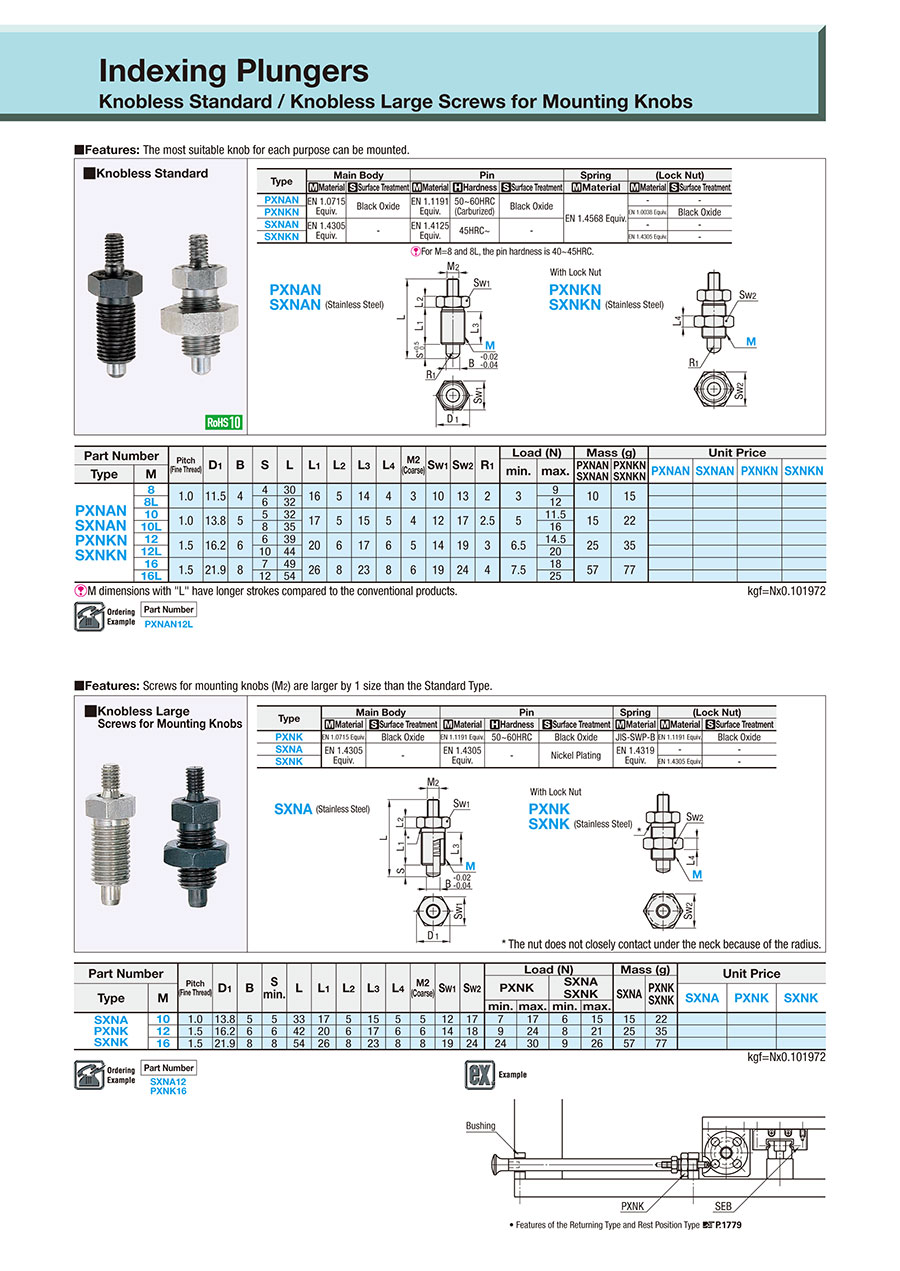

- Catalog
| Type | Main Body | Pin | Spring | (Lock Nut) | ||||
| Material | Surface Treatment | Material | Hardness | Surface Treatment | Material | Material | Surface Treatment | |
| PXNAN | EN 1.0715 Equiv. | Black Oxide | EN 1.1191 Equiv. | 50~60HRC (Carburized) | Black Oxide | EN 1.4568 Equiv. | - | - |
| PXNKN | EN 1.0038 Equiv. | Black Oxide | ||||||
| SXNAN | EN 1.4305 Equiv. | - | EN 1.4125 Equiv. | 45HRC~ | - | - | - | |
| SXNKN | EN 1.4305 Equiv. | - | ||||||
Specifications
| Part Number |
| PXNAN12L |
| Part Number | Pitch (Fine Thread) | D1 | B | S | L | L1 | L2 | L3 | L4 | M2 (Coarse) | Sw1 | Sw2 | R1 | Load (N) | Mass (g) | Unit Price | ||||||
| min. | max. | PXNAN SXNAN | PXNKN SXNKN | PXNAN | SXNAN | PXNKN | SXNKN | |||||||||||||||
| Type | M | |||||||||||||||||||||
| PXNAN SXNAN PXNKN SXNKN | 8 | 1.0 | 11.5 | 4 | 4 | 30 | 16 | 5 | 14 | 4 | 3 | 10 | 13 | 2 | 3 | 9 | 10 | 15 | ||||
| 8L | 6 | 32 | 12 | |||||||||||||||||||
| 10 | 1.0 | 13.8 | 5 | 5 | 32 | 17 | 5 | 15 | 5 | 4 | 12 | 17 | 2.5 | 5 | 11.5 | 15 | 22 | |||||
| 10L | 8 | 35 | 16 | |||||||||||||||||||
| 12 | 1.5 | 16.2 | 6 | 6 | 39 | 20 | 6 | 17 | 6 | 5 | 14 | 19 | 3 | 6.5 | 14.5 | 25 | 35 | |||||
| 12L | 10 | 44 | 20 | |||||||||||||||||||
| 16 | 1.5 | 21.9 | 8 | 7 | 49 | 26 | 8 | 23 | 8 | 6 | 19 | 24 | 4 | 7.5 | 18 | 57 | 77 | |||||
| 16L | 12 | 54 | 25 | |||||||||||||||||||
M dimensions with "L" have longer strokes compared to the conventional products.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Body Material | Pin Material | Screw Dia. M (mm) | Stroke (S) (mm) | Main Body Surface Treatment | Pin Surface Treatment | Tip Outer Dia. B (Ø) | Length L (mm) | Accessories | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.61 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 8 | 4 | Black Oxide | Black Oxide | 4 | 30 | Not Provided | |
16.12 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 8 | 6 | Black Oxide | Black Oxide | 4 | 32 | Not Provided | |
14.61 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 10 | 5 | Black Oxide | Black Oxide | 5 | 32 | Not Provided | |
16.12 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 10 | 8 | Black Oxide | Black Oxide | 5 | 35 | Not Provided | |
15.61 € 10.93 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 12 | 6 | Black Oxide | Black Oxide | 6 | 39 | Not Provided | |
17.25 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 12 | 10 | Black Oxide | Black Oxide | 6 | 44 | Not Provided | |
18.40 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 16 | 7 | Black Oxide | Black Oxide | 8 | 49 | Not Provided | |
20.40 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 16 | 12 | Black Oxide | Black Oxide | 8 | 54 | Not Provided | |
15.23 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 8 | 4 | Black Oxide | Black Oxide | 4 | 30 | Lock Nuts | |
16.87 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 8 | 6 | Black Oxide | Black Oxide | 4 | 32 | Lock Nuts | |
15.23 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 10 | 5 | Black Oxide | Black Oxide | 5 | 32 | Lock Nuts | |
16.87 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 10 | 8 | Black Oxide | Black Oxide | 5 | 35 | Lock Nuts | |
16.51 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 12 | 6 | Black Oxide | Black Oxide | 6 | 39 | Lock Nuts | |
18.26 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 12 | 10 | Black Oxide | Black Oxide | 6 | 44 | Lock Nuts | |
20.53 € | 1 | Available | 7 Days | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 16 | 7 | Black Oxide | Black Oxide | 8 | 49 | Lock Nuts | |
22.79 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.0715 Equiv. | EN 1.1191 Equiv. | 16 | 12 | Black Oxide | Black Oxide | 8 | 54 | Lock Nuts | |
19.78 € 13.85 € | 1 | Available |
Same day
Stock | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 8 | 4 | Not Provided | Not Provided | 4 | 30 | Not Provided | |
22.03 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 8 | 6 | Not Provided | Not Provided | 4 | 32 | Not Provided | |
19.78 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 10 | 5 | Not Provided | Not Provided | 5 | 32 | Not Provided | |
22.03 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 10 | 8 | Not Provided | Not Provided | 5 | 35 | Not Provided | |
21.40 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 12 | 6 | Not Provided | Not Provided | 6 | 39 | Not Provided | |
23.67 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 12 | 10 | Not Provided | Not Provided | 6 | 44 | Not Provided | |
28.96 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 16 | 7 | Not Provided | Not Provided | 8 | 49 | Not Provided | |
32.13 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 16 | 12 | Not Provided | Not Provided | 8 | 54 | Not Provided | |
22.41 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 8 | 4 | Not Provided | Not Provided | 4 | 30 | Lock Nuts | |
24.94 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 8 | 6 | Not Provided | Not Provided | 4 | 32 | Lock Nuts | |
22.41 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 10 | 5 | Not Provided | Not Provided | 5 | 32 | Lock Nuts | |
24.94 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 10 | 8 | Not Provided | Not Provided | 5 | 35 | Lock Nuts | |
24.68 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 12 | 6 | Not Provided | Not Provided | 6 | 39 | Lock Nuts | |
27.45 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 12 | 10 | Not Provided | Not Provided | 6 | 44 | Lock Nuts | |
34.13 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 16 | 7 | Not Provided | Not Provided | 8 | 49 | Lock Nuts | |
37.78 € | 1 | Available | 7 Days | 10 | [Stainless Steel] EN 1.4305 Equiv. | [Stainless Steel] EN 1.4125 Equiv. | 16 | 12 | Not Provided | Not Provided | 8 | 54 | Lock Nuts |
Loading...
Basic information
| Type | W/o Knob | Locking Mechanism | Returning | Mounting Method | Screw-In |
|---|---|---|---|---|---|
| Overall Length | Standard | Knob | Not Provided | Tip Heat Treatment | Hardened |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Body Material
- Steel
- Stainless Steel
- Steel
-
Pin Material
- EN 1.1191 Equiv.
- Stainless Steel
-
Screw Dia. M(mm)
-
Stroke (S)(mm)
-
Main Body Surface Treatment
- Not Provided
- Black Oxide
-
Pin Surface Treatment
- Not Provided
- Black Oxide
-
Tip Outer Dia. B(Ø)
-
Length L(mm)
-
Accessories
- Lock Nuts
- Not Provided
-
Type
- PXNAN
- PXNKN
- SXNAN
- SXNKN
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
