Contact Switches / L-Shaped Cylinder Type With LED

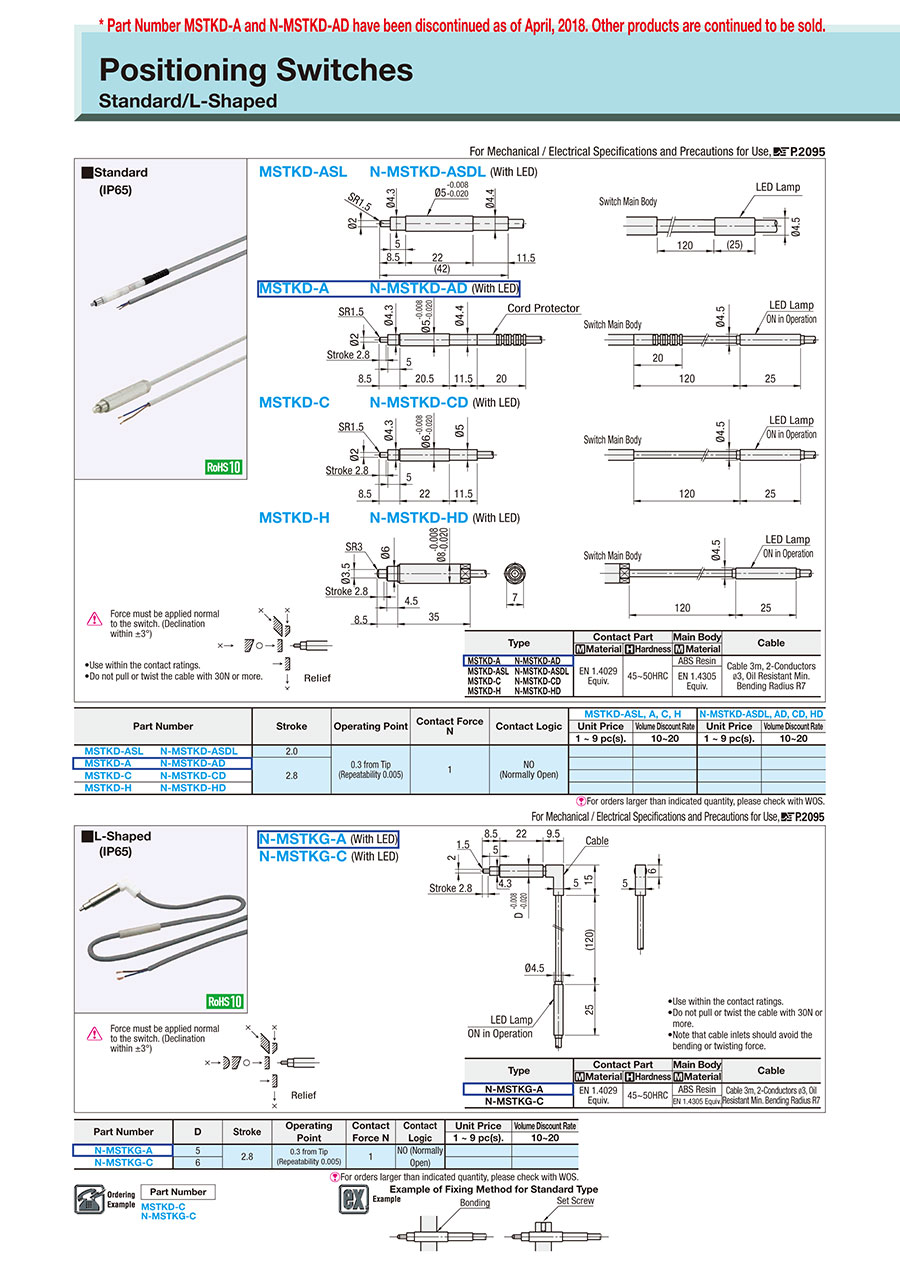

Outline drawing and specifications table
N－MSTKG－C (With LED)
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
[ ! ] Note that cable inlets should avoid the bending or twisting force.
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
[ ! ] Note that cable inlets should avoid the bending or twisting force.
| Type | Contact Part | Main Body | Cable | |
| Material | Hardness | Material | ||
| N−MSTKG−C | EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4305 Equiv. | Cable 3 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 |
Specification Table
| Part Number |
| MSTKD−C N−MSTKG−C |
| Part Number | D | Stroke | Operating Point | Contact Force N | Contact Logic |
| N−MSTKG−C | 6 | 2.8 | 0.3 from Tip (Repeatability 0.005) | 1 | NO (Normally Open) |
More Information
Basic information
This is a positioning switch, cylindrical type, L-shaped. [Main body material]EN 1.4305 Equiv.
Outline and specifications
Specifications/Overview
[!] Straightly hold a detected object against the tip of switch. (Declination within ±3°)
App. Example
Example of Fixing Method for Standard Type
